Unbranded

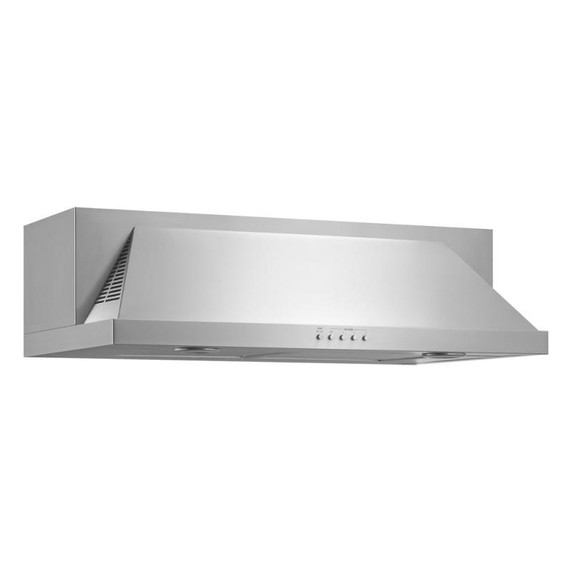

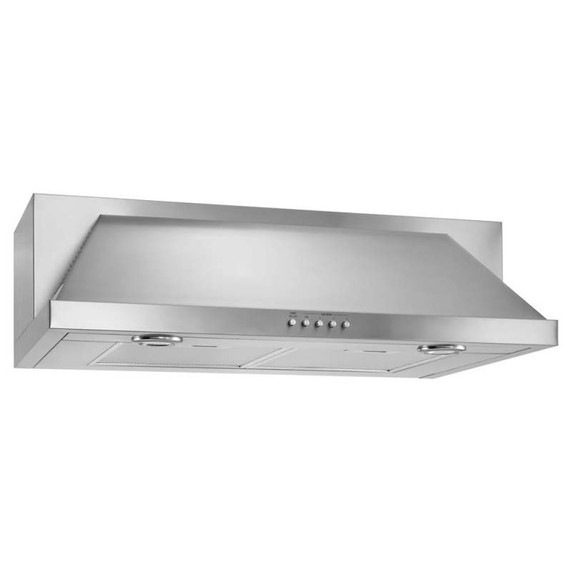

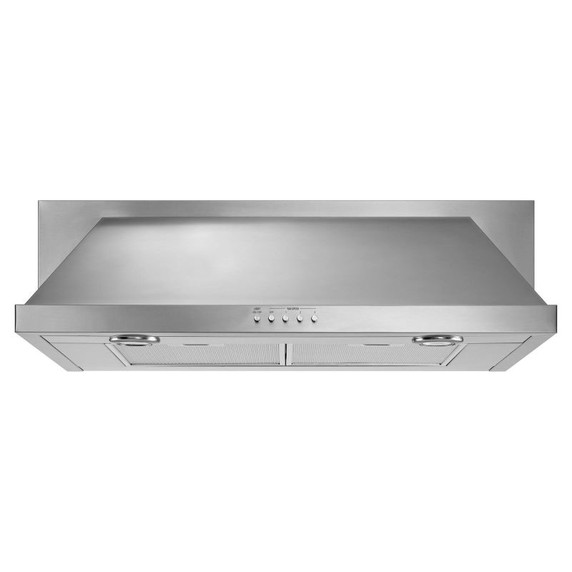

Convertible Under-Cabinet Hood, 30" UXT5530AAS
Electrical
Volts120
Hz60
Amps15
Certifications
ULYes
Description
Size In30
Specifications
Country Of OriginMexico
Optional AccessoriesW10272068, W10446914
Extended Service Plan ParentEW02IW1Y, EW02IW4Y, EW02IW2Y
Product To Product PairsYWEE750H0HZ, WEG515S0LS, WEGA25H0HZ, WCI55US0JS, MEC8830HS, WEG750H0HB, YWFC150M0JB, YWEE750H0HV, WCE55US0HB, YWEE515S0LS, MGT8800FZ, YWFC315S0JS, YWEE750H0HW, YWFE515S0JS, WEG750H0HW, WEG750H0HV, YWEEA25H0HZ, YWFC315S0JW, WCE77US0HS, WCE97US0KB, YWEE750H0HB, YWFC150M0JW, WEG515S0LV, WEG750H0HZ, YWGE745C0FS, WCE55US0HS, WCI55US0JB, YWFE745H0FH, WEG745H0LZ, MEC8830HB, YWEE515S0LW, YMET8800FZ, YWEE515S0LB, YWEE745H0LZ, MGC7430DS, YWEE515S0LV, YWFE745H0FS, WCE97US0KS, WCE77US0HB, WGG745S0FS
Ventilation System
Duct DirectionVertical
VentingExterior or Recirculating
Duct Outlet Size In3.25 W x 10 H
Duct TypeRectangular
Cfm Motor Class400
FiltersCharcoal Odor Removing Filter; Grease Filters
Sound Max Speed Sones8.2
Features
Task LightingYes
Task Light TypeHalogen
Btu Threshold60 K
Controls
Control TypeManual
Control LocationFront
Carton Depth14.0"
Carton Height25.0"
Carton Width34.0"

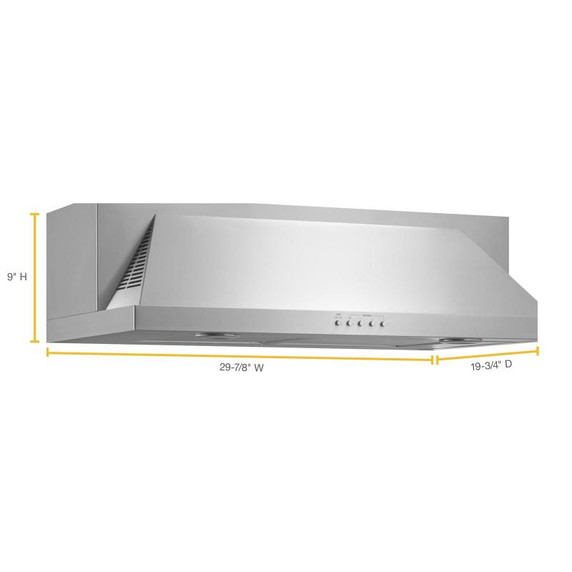

Depth19.75"
Gross Weight39.0 lbs.
Height9.0"
Width29.88"
