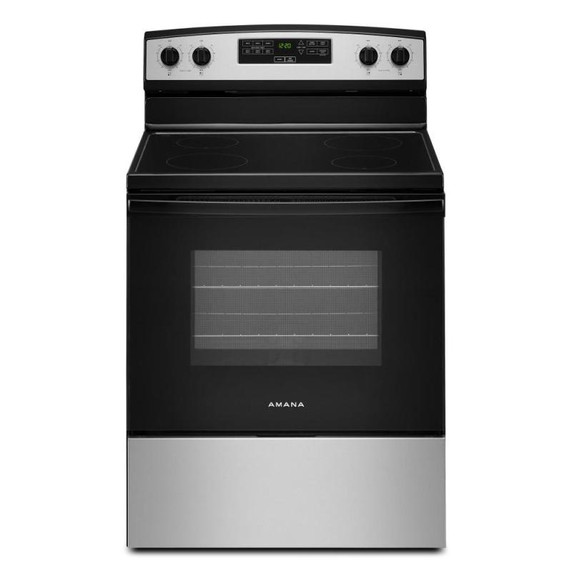

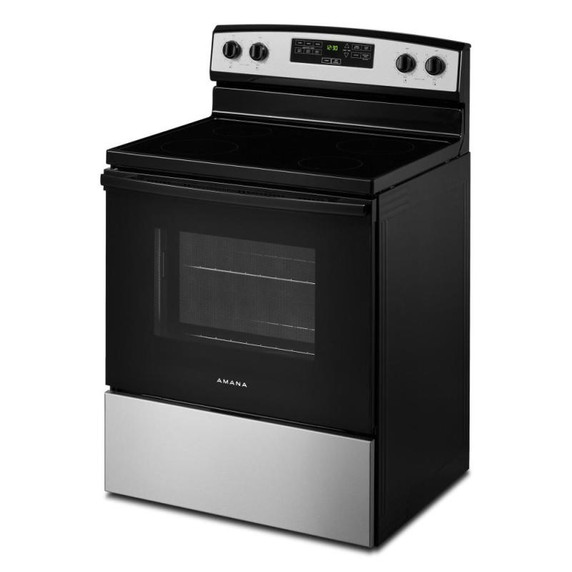

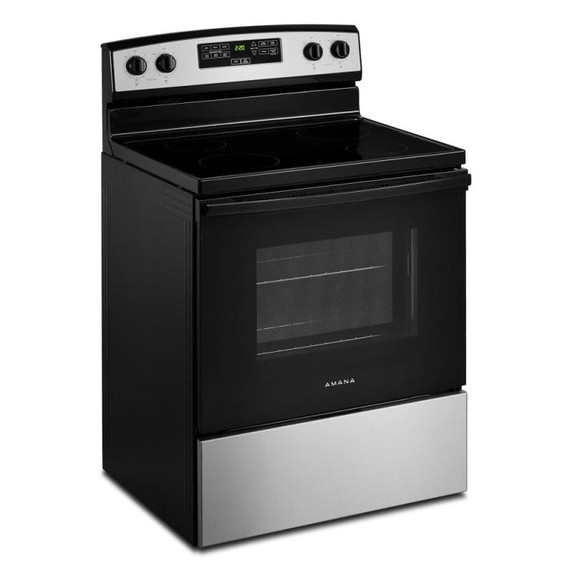

30-inch Amana® Electric Range with Extra-Large Oven Window YAER6203MSS
This product is available for pre-order only. Contact us for more information.
30-inch Amana® Electric Range with Extra-Large Oven Window YAER6203MSS
This product is available for pre-order only. Contact us for more information.
Large Oven Capacity
(4.8 Cu. Ft.)Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Bake Assist TempsBake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Temp Assure™ Cooking SystemTemp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Storage DrawerThis Storage Drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Warm HoldUse the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Oven LockoutOven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.

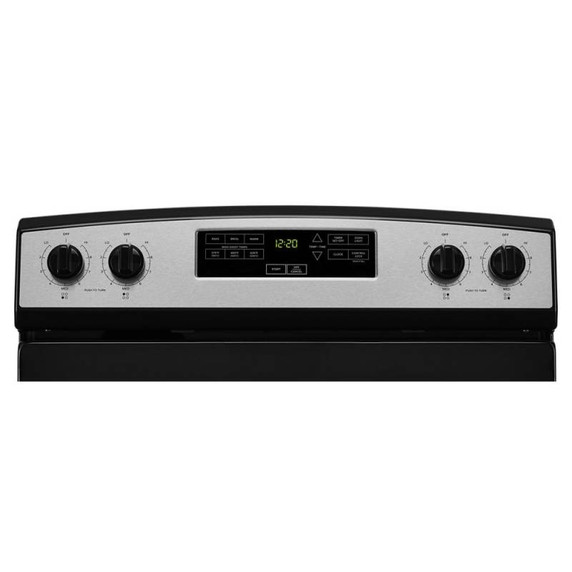

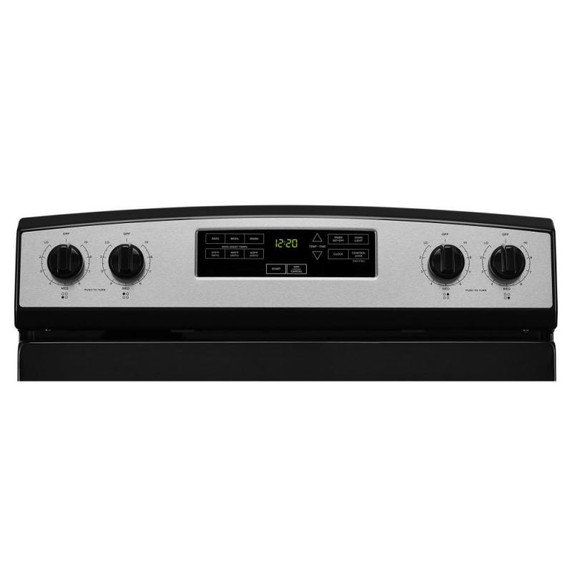

Controls
Knob TypePlastic
Control TypeKnobs
Knob ColorBlack
Electrical
Volts120
Hz60
Power Cord IncludedYes
Amps40
Configuration and Overview
Fuel TypeElectric
Compatibility
Connectivity
Works With
Energy
Annual Energy Usage Kwh494
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Product To Product Pairs
Extended Service Plan ParentEW05IW1Y, EW05IW2Y, EW05IW4Y
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
GriddleNo
Certifications
ULYes
CULYes
Energy Rating Kwh Year494
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorBlack
Handle TypeReach-Through Handle
Description
Range TypeFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Convection Element TypeNone
Oven Cleaning TypeManual Clean
Convection FunctionsNo

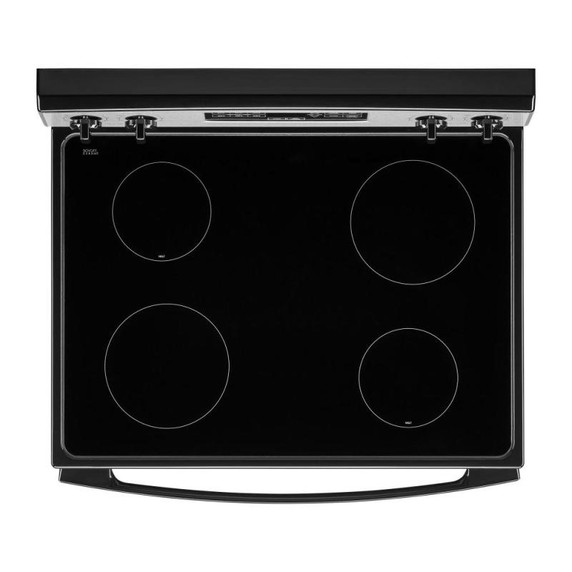

Cooktop Details
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners

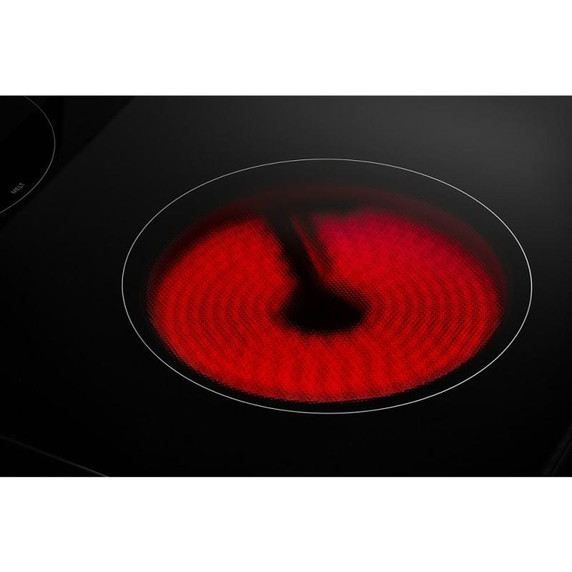

Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Left Front Element Burner Power1800W
Right Front Element Burner Power1200W
Right Rear Element Burner Power1800W
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Gross Weight152.0 lbs.
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Depth Closed Excluding Handles25.31"
Depth27.75"
Height46.88"
Width29.88"
Depth Closed Including Handles27.75"
Depth With Door Open 90 Degree46.69"
Maximum Height47.88"
Minimum Height46.88"
Capacity FT3 (cubic feet)4.8
