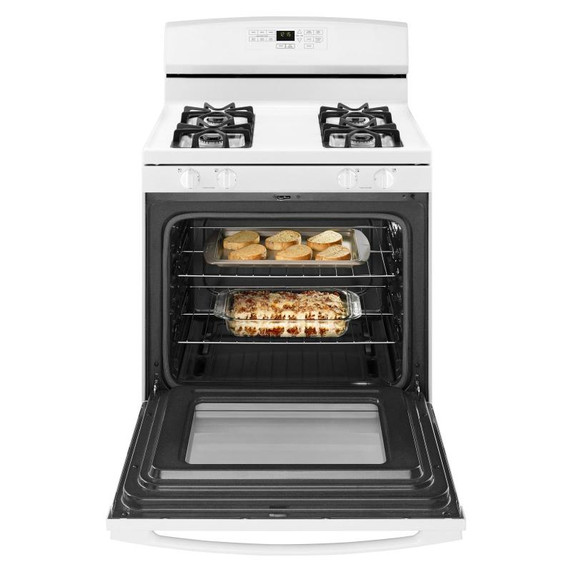

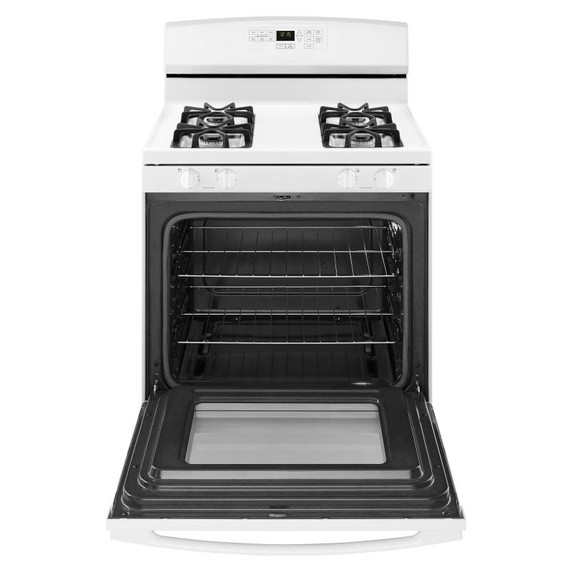

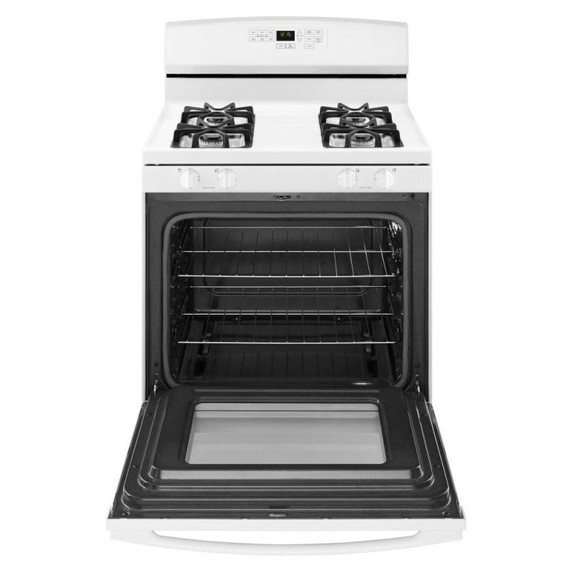

Amana® 30-inch Gas Range with Self-Clean Option AGR6603SFW
Large Oven CapacityLarge Oven Capacity gives you the space you need to make dinner and dessert at the same time.

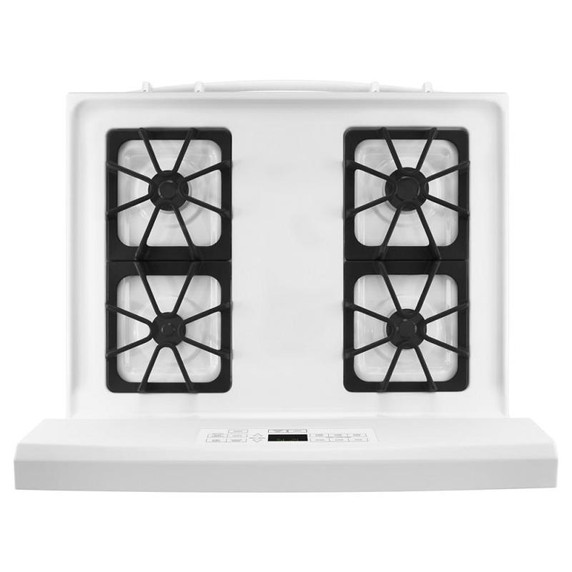

Versatile CooktopOur Versatile Cooktop features multiple burner options that provide up to 15,000 BTUs, helping you cook your favorites all at once.
Bake Assist TempsBake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Easy Touch Electronic Controls PlusQuickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure™ Cooking SystemTemp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven WindowSee and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
Warm HoldCan't serve dinner right away? Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken Parmesan are still ready when you are.
EasyAccess™ Broiler DoorThe EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
Custom BroilUse the Custom Broil setting to broil in five-degree increments.
Oven LockoutOven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Self-Clean OptionThere's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Sealed BurnersDon't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Electrical
Volts120
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional Accessories4396096RB
Extended Service Plan ParentEW05IW2Y, EW05IW4Y, EW05IW1Y
Product To Product PairsABB2224BRW, ART104TFDW, AZF33X18DW, AZF33X16DW, ABB1924BRW, ART318FFDW
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
GriddleN/A
Heating Element On Indicator LightNo
Power Outage CompatibleYes - Cooktop Only
Certifications
ULYes
ADA CompliantNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorWhite
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Size In30
Range TypeFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Bake Element Power16500BTU
Broiler Element Power10000BTU
Convection Element TypeNone
Oven Rack TypeStandard
Convection FunctionsNo
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner TypeSealed Burner
Left Front Element Burner TypeHigh Output
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power12500BTU
Right Front Element Burner Power9500BTU
Grate DetailsDishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Number Of Grates4
Ignition TypeÉlectroniques
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.44"
Depth With Door Open 90 Degree46.56"
Depth27.88"
Gross Weight187.0 lbs.
Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.0
