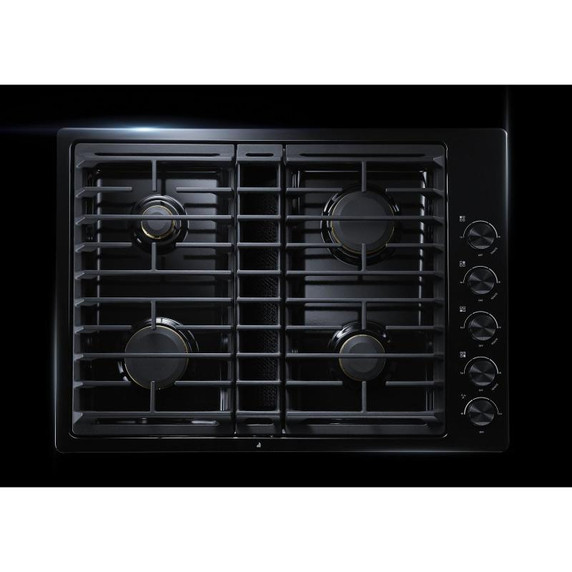

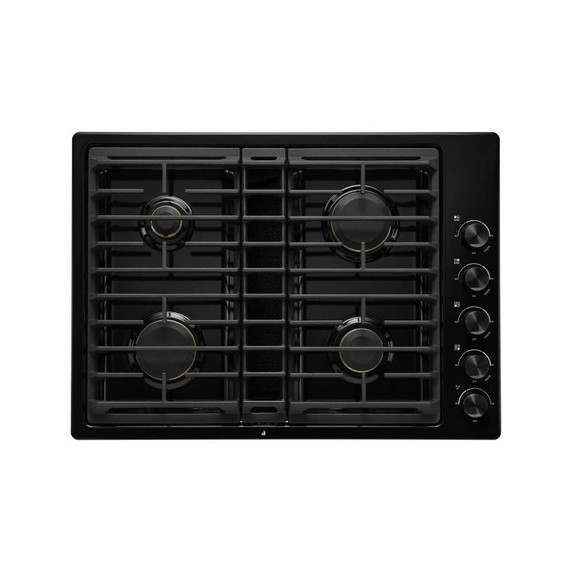

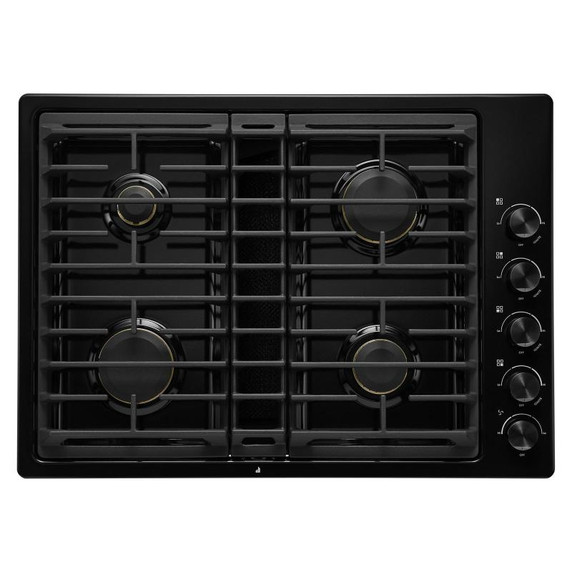

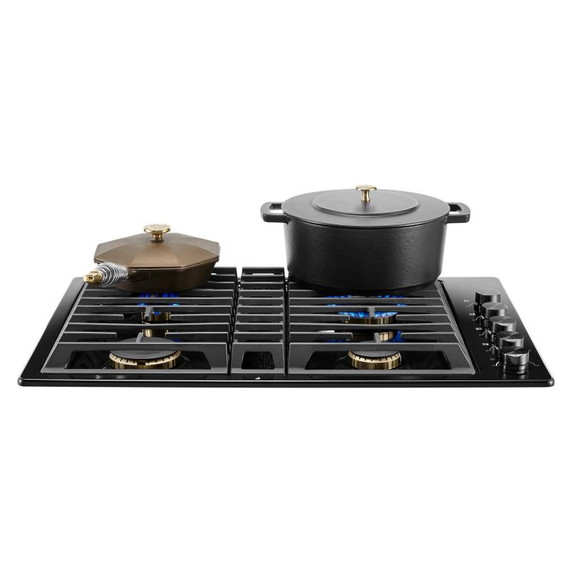

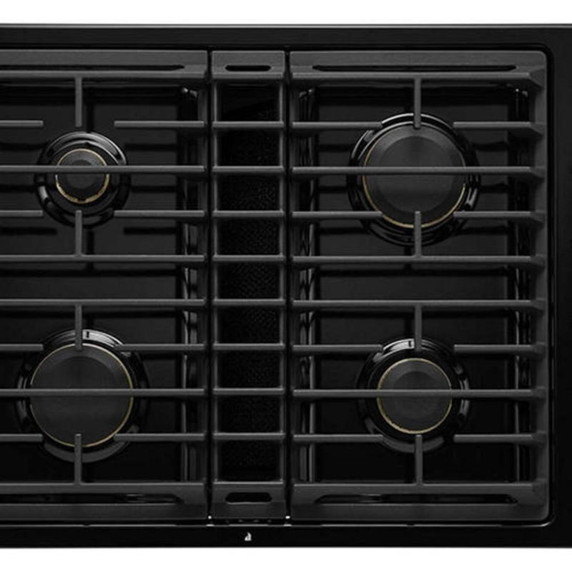

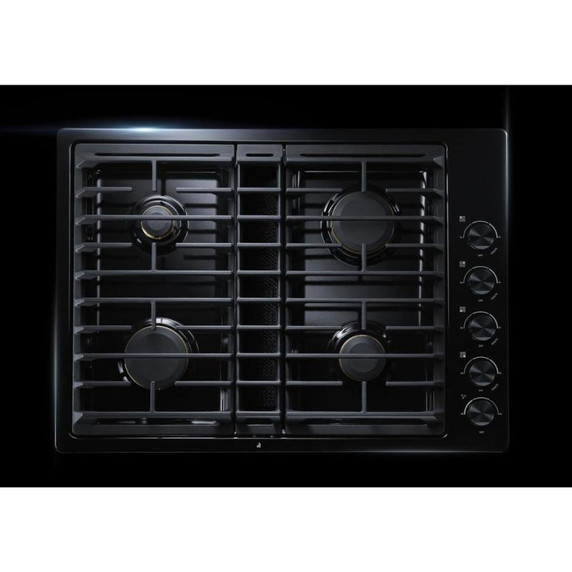

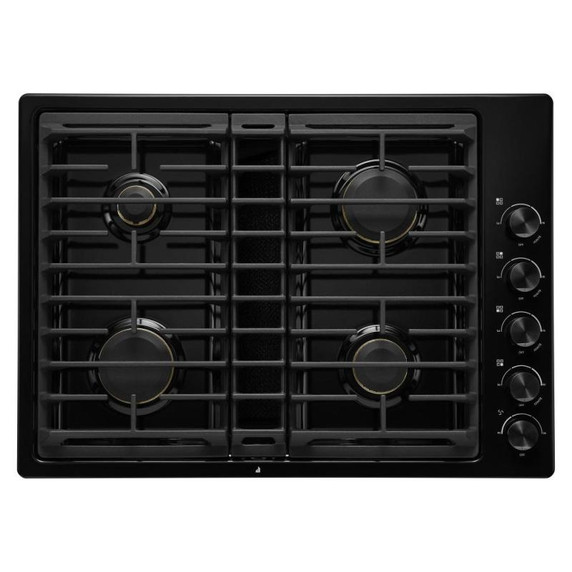

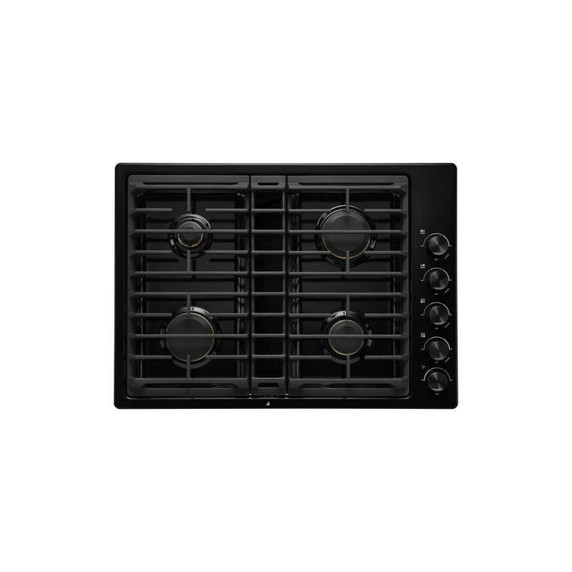

Jennair® 30” JX3™ Gas Downdraft Cooktop JGD3430GB
SKU:
JGD3430GB
$3,149.99
Please contact us for availability
Print:
Colour:
Black
Cooktop Element Style:
Sealed Burners
Fuel Type:
Gas
Control Location:
Side
This Jenn-Air® luxury gas downdraft cooktop features four sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood.
Features
Top 3 Features
17,000 BTU Ultra-High Output BurnerEnjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.

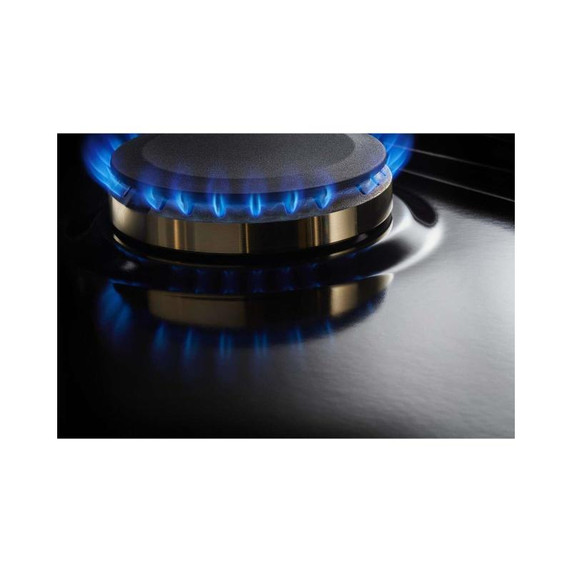

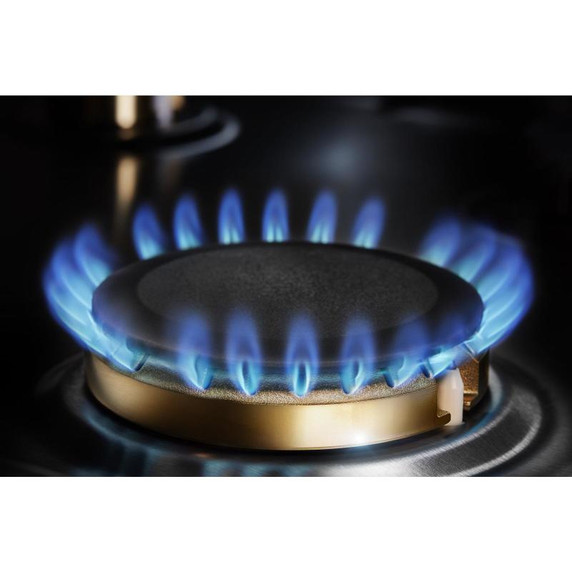

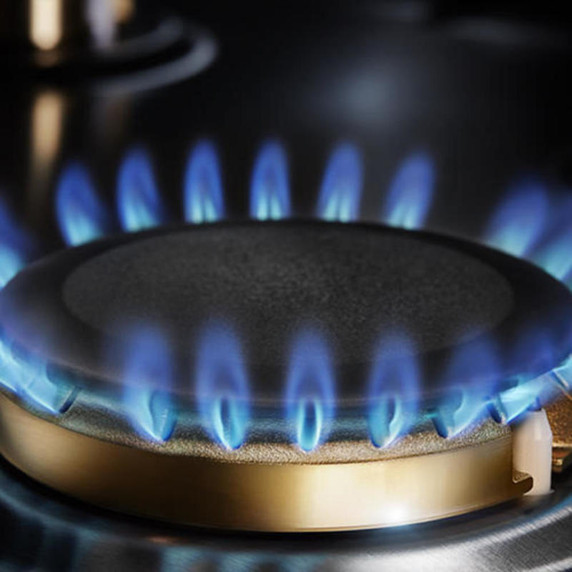

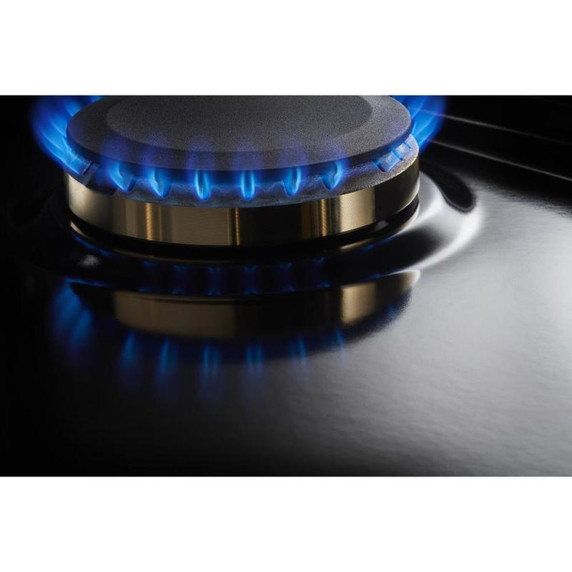

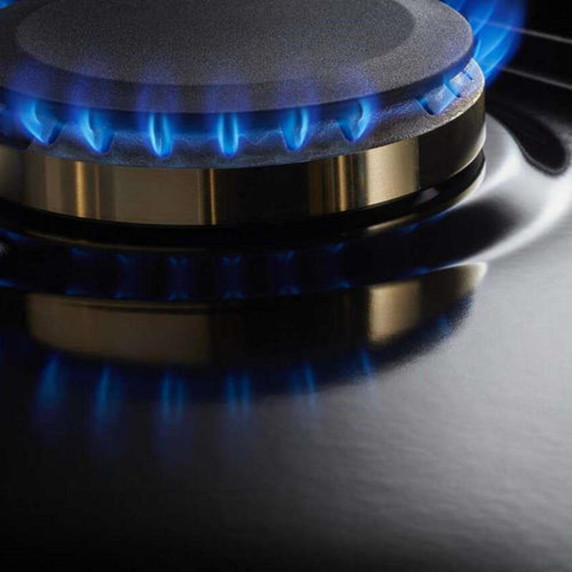

Brass Burners with Removable BaseElegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.

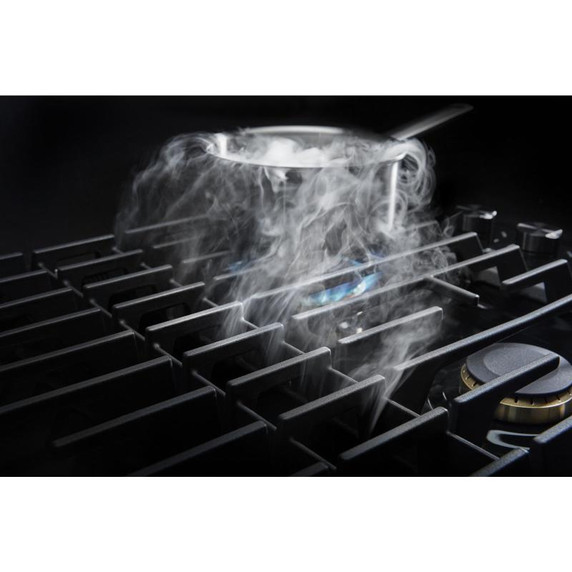

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
Additional Features
DuraFinish™ ProtectionDuraFinish™ Protection keeps your cooktop’s stainless steel surface looking new by resisting yellowing, staining and scratching.
5,000 BTU Ultra-Low Output Burner with Melt CapProvides the optimal temperature for gently cooking delicate sauces and foods.
Convertible to Duct-Free VentilationKeep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Specifications
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Electrical
Volts120
Hz60
Power Cord IncludedYes
Amps40
Configuration and Overview
Fuel TypeGas
Design Type
Design ExpressionPorcelain Coated Steel
Specifications
Country Of OriginUSA
Optional AccessoriesW10177003, W10620783
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW4Y, EW08IW2Y
Features
Hot Surface Indicator LightNo
GriddleN/A
Digital DisplayNo
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Downdraft VentYes
Installs Over Built In OvenNo
Certifications
ULYes
ADA CompliantYes
Description
Size In30
Cooktop TypeDowndraft
Cooktop Details
Cooktop Element StyleSealed Burners
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Front Element Burner Power10000BTU
Right Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Left Front Element Burner Power17000BTU
Right Rear Element Burner Power15000BTU
Ventilation System
Cfm Motor Class310
Dimensions
Depth21.5"
Height4.0"
Maximum Height18.44"
Net Weight46.0 lbs.
Width30.0"

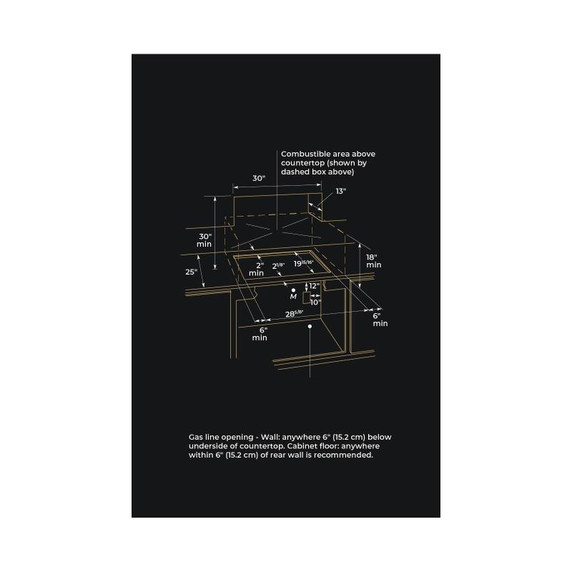

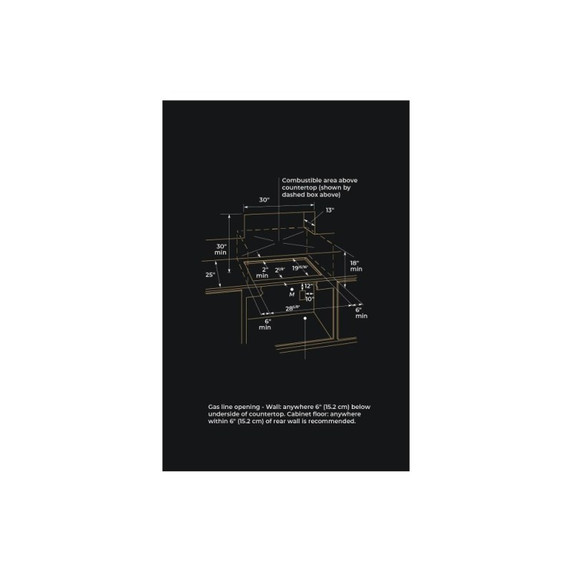

Cutout Depth19.94"
Cutout Width28.63"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
