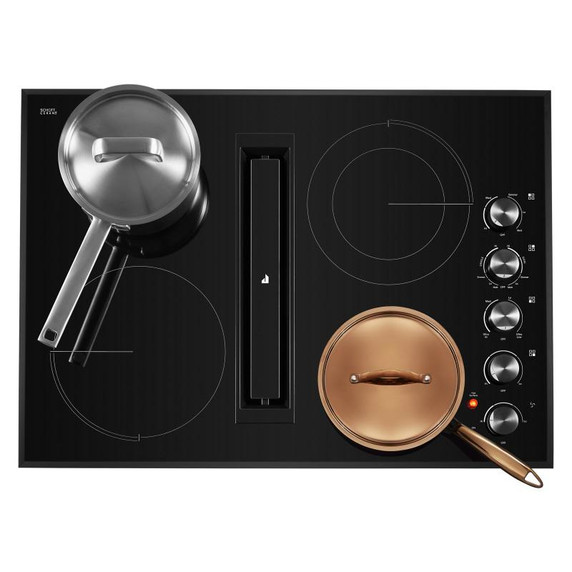

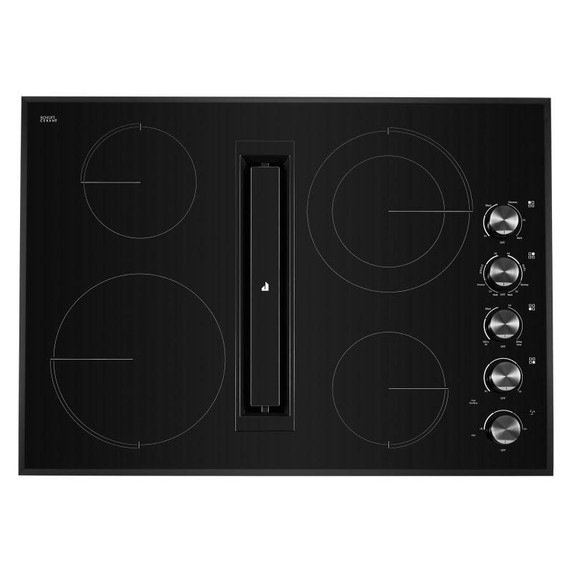

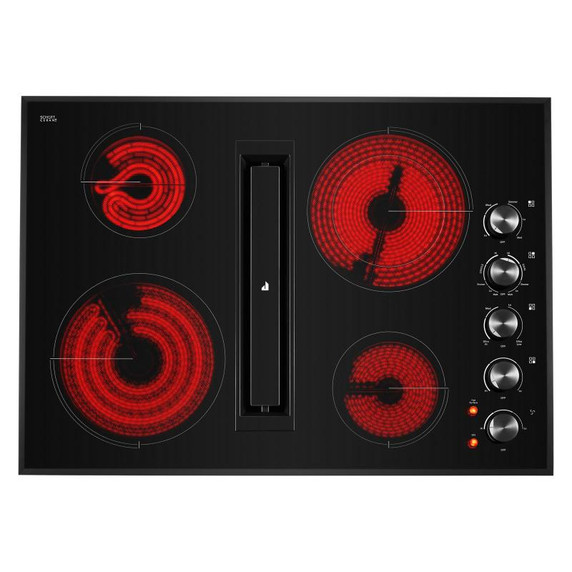

Jennair® 30" JX3™ Electric Downdraft Cooktop JED3430GB

SKU: JED3430GB
$2,999.99
Please contact us for availability
Hurry! Only left
Print:
Colour: Black
Cooktop Element Style: Ceran
Control Location: Side
Fuel Type: Electric Radiant

This Jenn-Air® luxury electric radiant downdraft cooktop offers a sleek cooking surface with four radiant elements, which offer responsive performance. It also features the impressive JX3™ downdraft ventilation system, which quickly and efficiently clears
Features
Top 3 Features

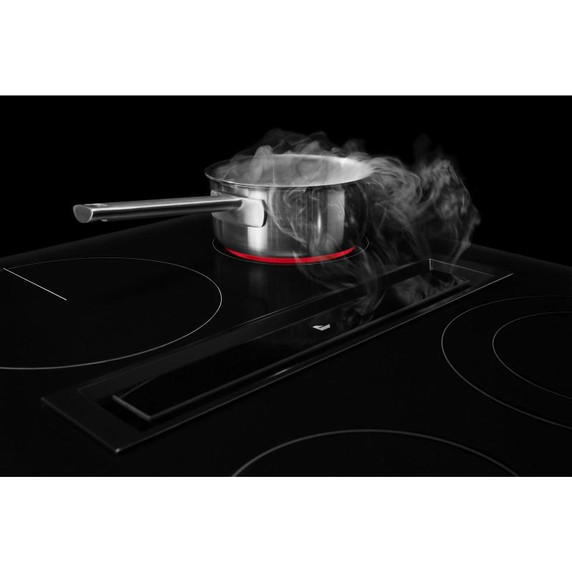

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

DuraFinish® Glass ProtectionDuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

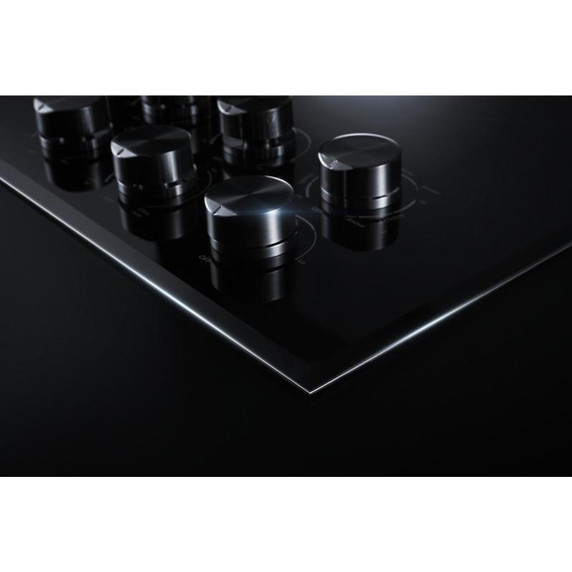

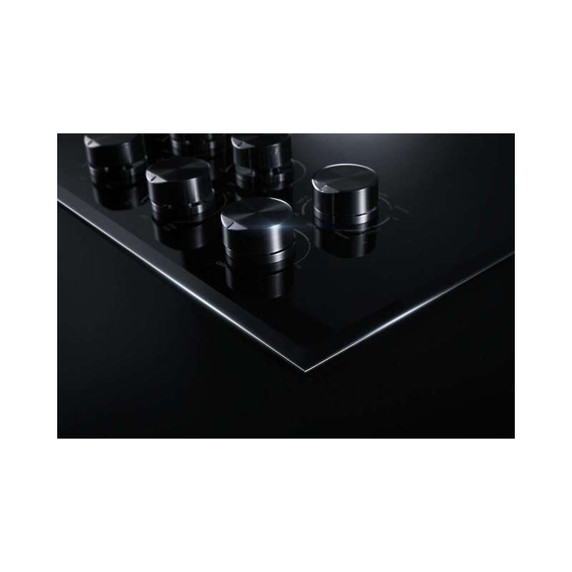

Color-Coordinating Die-Cast Metal KnobsRobust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.

Additional Features

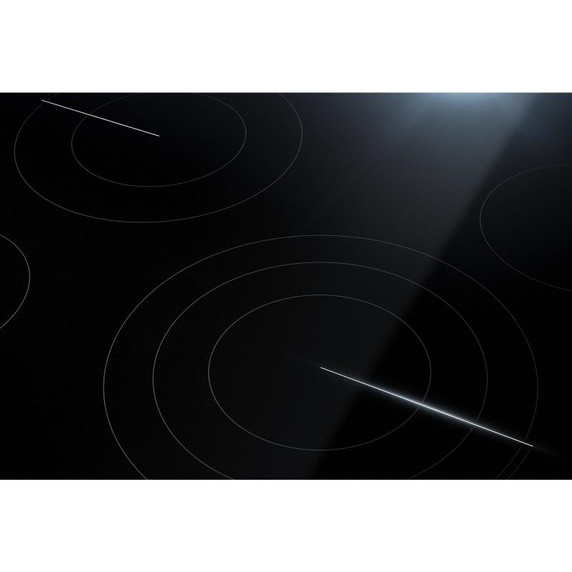

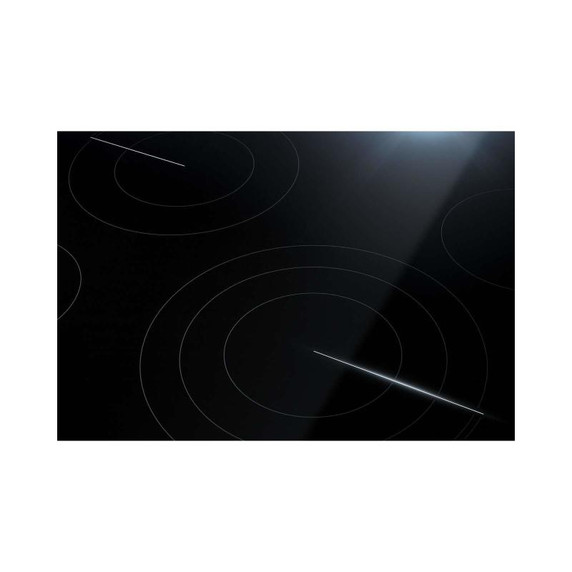

Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

Semi-Flush InstallationSubtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

Perimetric ExtractionProvides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

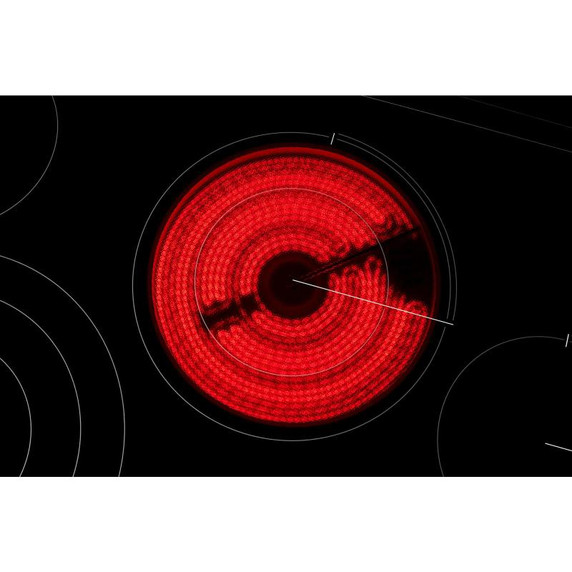

10”/6” Dual-Choice™ Element (3,000 Watt)This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.

Convertible to Duct-Free VentilationKeep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

Specifications

Controls

Control TypeManual

Knob TypeMetal

Control LocationSide

Electrical

Power Cord IncludedNo

Amps40

Volts220

Configuration and Overview

Fuel TypeElectric Radiant

Design Type

Design ExpressionBlack Glass

Specifications

Country Of OriginUSA

Product To Product Pairs

Extended Service Plan ParentEW08IW1Y, EW08IW4Y, EW08IW2Y

Optional AccessoriesW10620783, W10355051B, W10177003

Features

Heating Element On Indicator LightYes

GriddleN/A

Hot Surface Indicator LightYes

Power Outage CompatibleNo

LP ConvertibleNo

Automatic Pan DetectionNo

Digital DisplayNo

Power BoostNo

Downdraft VentYes

Installs Over Built In OvenNo

Certifications

ULYes

ADA CompliantYes

Description

Size In30

Cooktop TypeDowndraft

Cooktop Details

Right Rear Element Burner TypeDual

Cooktop Element StyleCeran

Left Rear Element Burner Size6in.

Number Of Cooking Element Burners4

Right Front Element Burner Size6in.

Right Front Element Burner TypeStandard

Left Front Element Burner TypeHigh Output

Left Rear Element Burner TypeHigh Output

Left Rear Element Burner Power1300W

Left Front Element Burner Power3200W

Left Front Element Burner Size10in.

Right Front Element Burner Power1200W

Right Rear Element Burner Power3000W/1400W

Right Rear Element Burner Size10in./6in.

Ventilation System

Cfm Motor Class310

Dimensions

Depth22.06"

Height3.66"

Maximum Height18.72"

Net Weight70.0 lbs.

Width30.88"

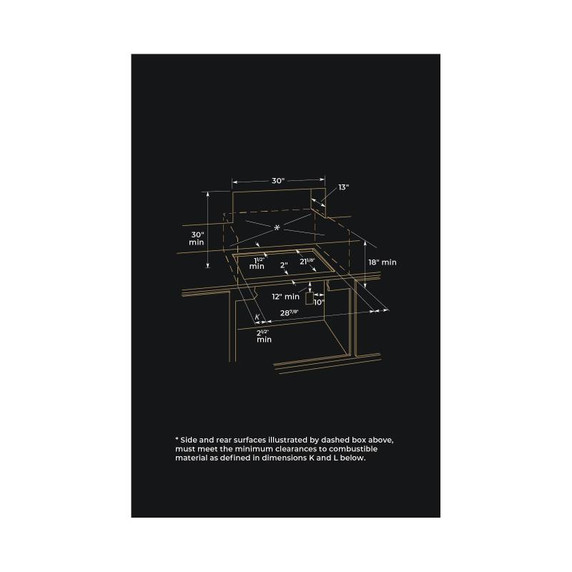

Cutout Depth21.13"

Cutout Width28.88"

Carton Depth Inch26.38

Carton Height Inch23.78

Carton Width Inch35.12
