Jennair® 36" JX3™ Electric Downdraft Cooktop JED3536GB
SKU:
JED3536GB
$3,199.99
Please contact us for availability
Print:
Colour:
Black
Cooktop Element Style:
Ceran
Control Location:
Front
Fuel Type:
Electric Radiant

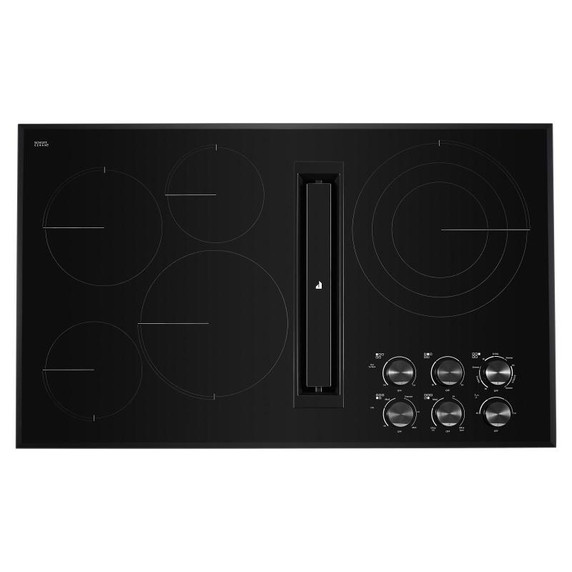

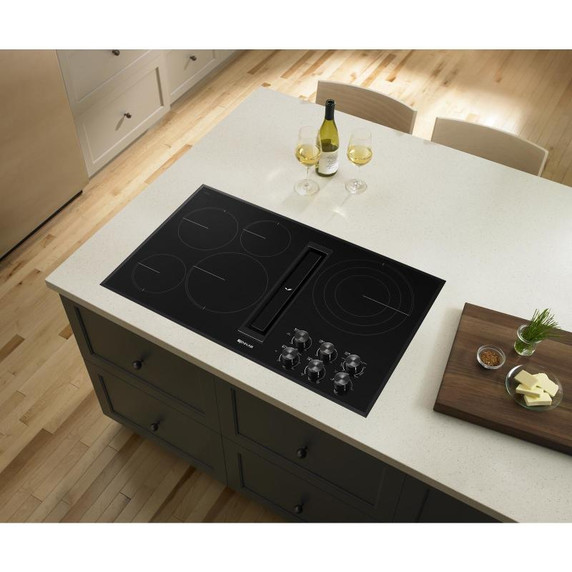

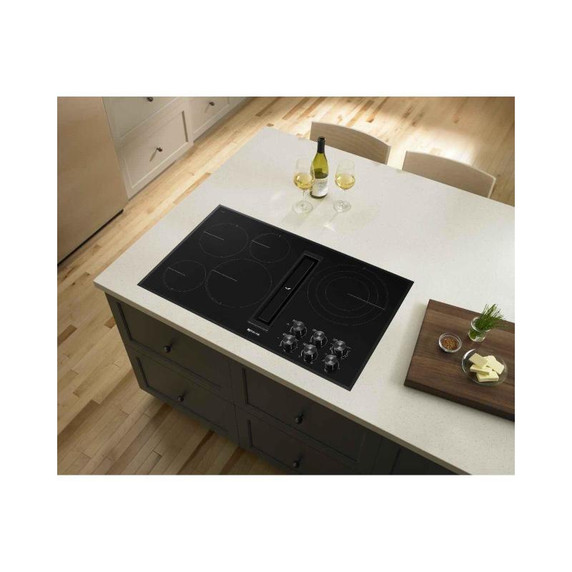

This Jenn-Air® luxury electric radiant downdraft cooktop offers a sleek cooking surface with five radiant elements, which offer responsive performance. It also features the impressive JX3™ downdraft ventilation system, which quickly and efficiently clears the air without a hood.
Features
Top 3 Features

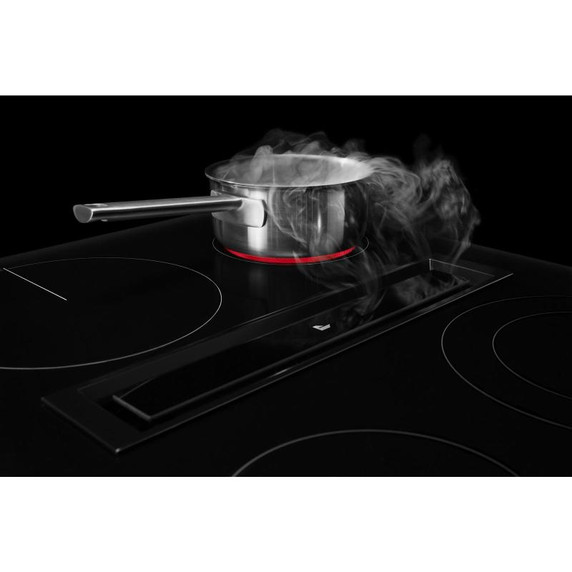

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

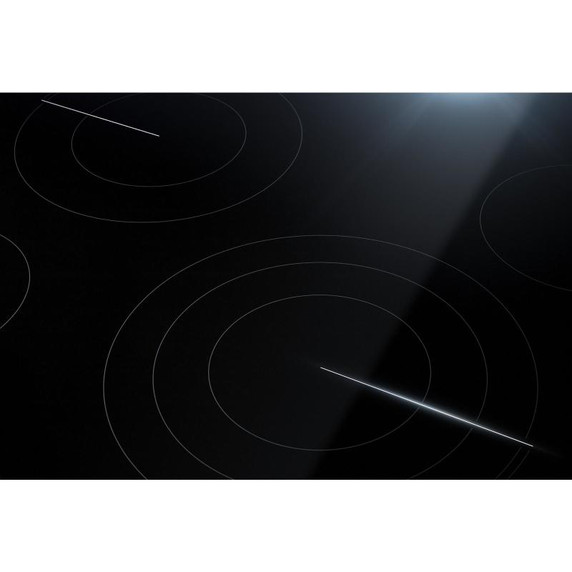

DuraFinish® Glass ProtectionDuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

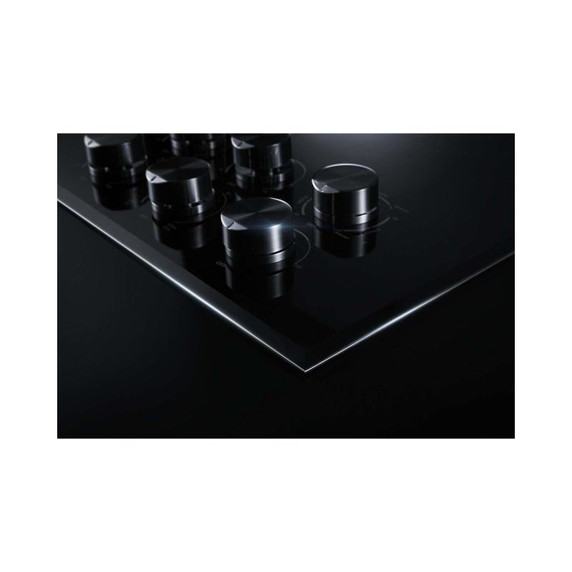

Color-Coordinating Die-Cast Metal KnobsRobust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
Additional Features

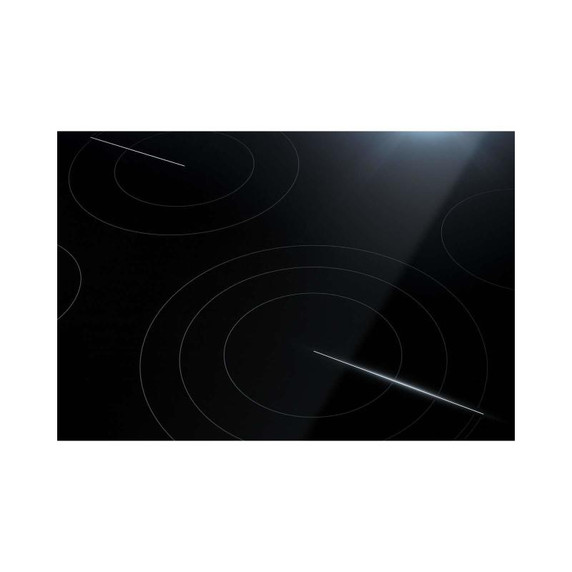

Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

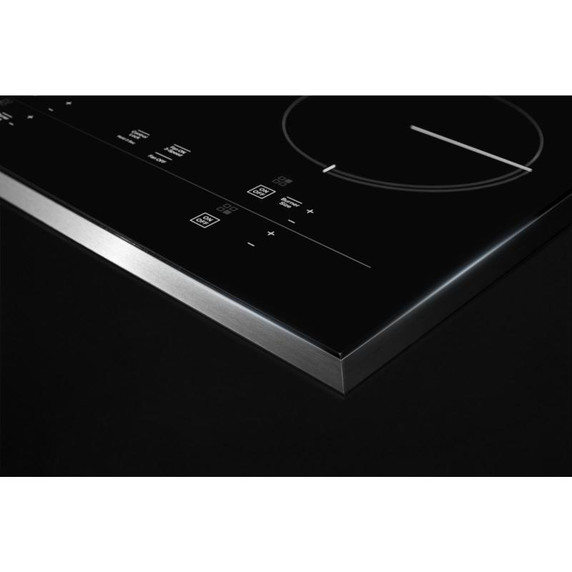

Semi-Flush InstallationSubtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
Perimetric ExtractionProvides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
Convertible to Duct-Free VentilationKeep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

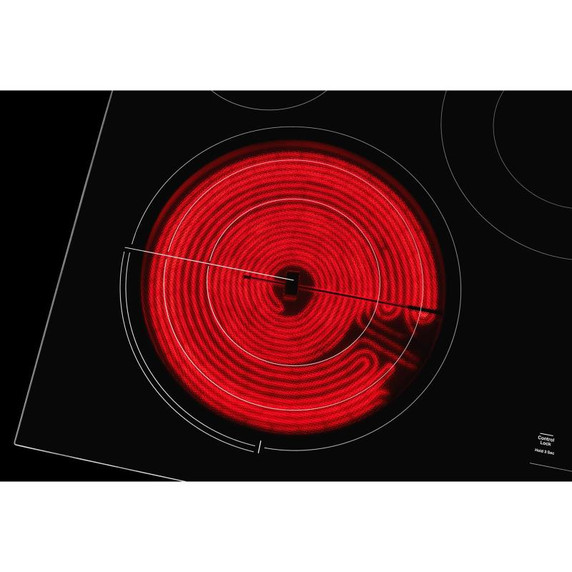

12"/9"/6" Triple-Choice™ ElementThis three-tiered element reaches a high of 3,000 watts at its highest setting and can reach a low of 1,050 watts allowing you to experience the ultimate versatility in power levels and heating efficiency, accommodating various-sized cookware.
Specifications
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Electrical
Power Cord IncludedNo
Amps40
Volts220
Configuration and Overview
Fuel TypeElectric Radiant
Design Type
Design ExpressionBlack Glass
Specifications
Country Of OriginUSA
Product To Product Pairs
Optional AccessoriesW10620783, W10355051B, W10177003
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Downdraft VentYes
Installs Over Built In OvenNo
Certifications
ULYes
ADA CompliantYes
Description
Size In36
Cooktop TypeDowndraft
Cooktop Details
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Left Front Element Burner TypeHigh Output
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Center Front Element Burner Power3200W
Center Front Element Burner Size10in.
Center Rear Element Burner Power1200W
Center Rear Element Burner Size6in.
Center Rear Element Burner TypeStandard
Left Front Element Burner Power1300W
Left Front Element Burner Size6in.
Right Rear Element Burner Power3000W/1950W/1050W
Right Rear Element Burner Size12in./9in./6in.
Right Rear Element Burner TypeTriple
Ventilation System
Cfm Motor Class310
Dimensions
Depth22.06"
Height3.69"
Net Weight69.0 lbs.
Width36.31"

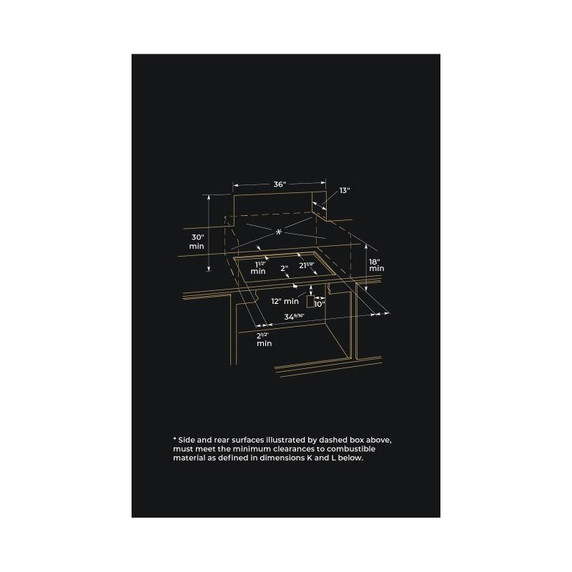

Cutout Depth21.13"
Cutout Width34.56"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch41.5
