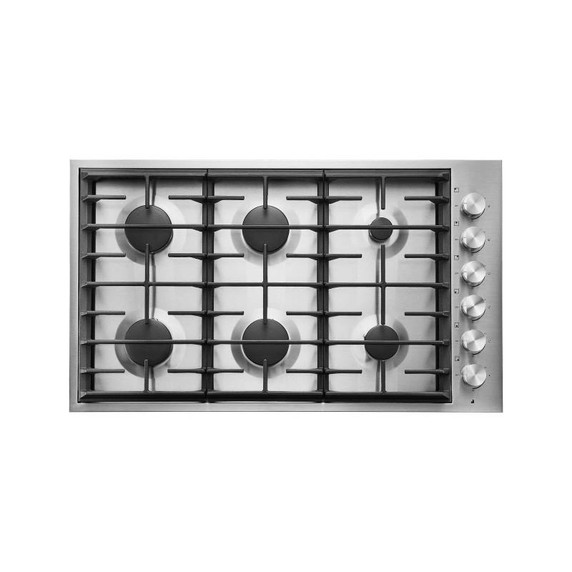

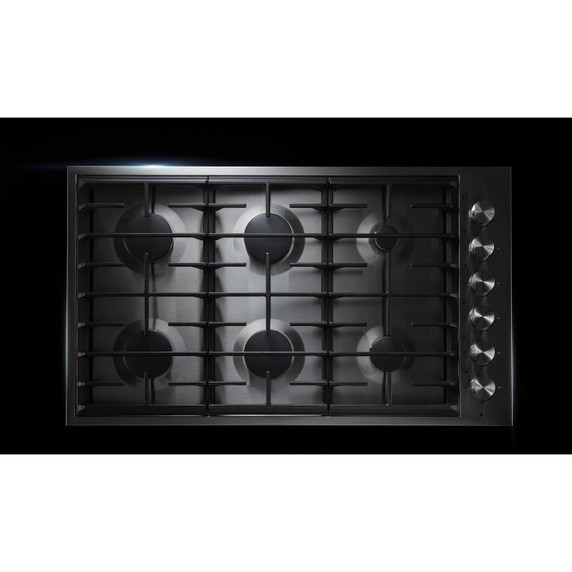

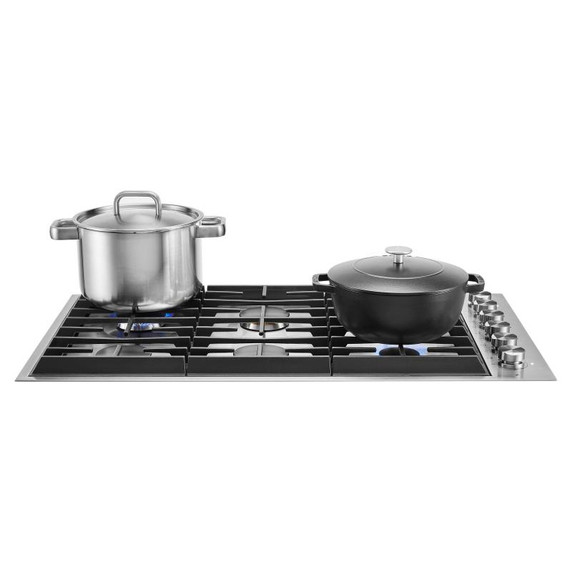

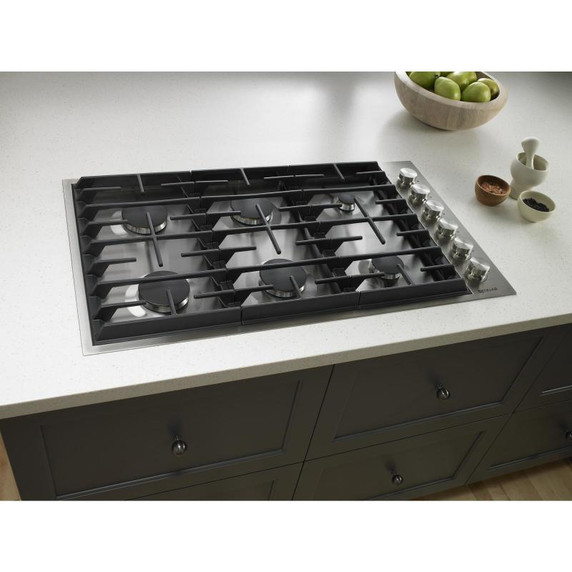

Jennair® 36", 6-Burner Gas Cooktop JGC7636BS

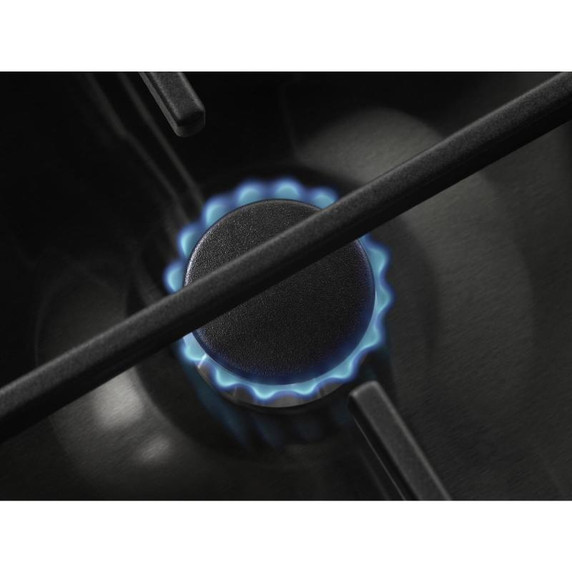

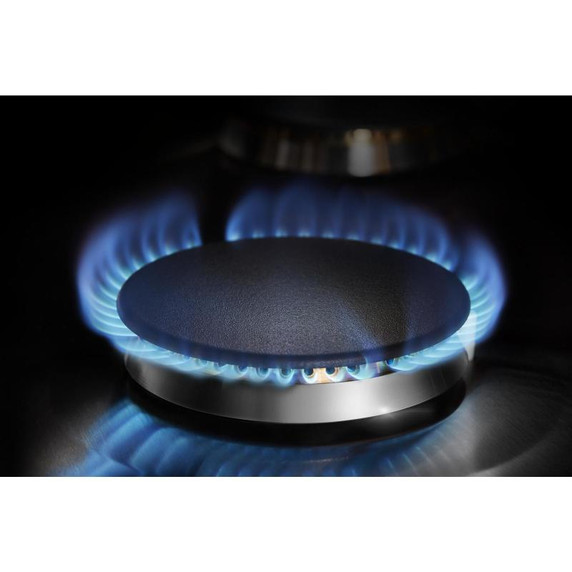

18,000-BTU Dual-Stacked PowerBurnerThis dual-stacked burner helps you achieve exceptional results with high-heat cooking techniques like searing or wok cooking while also giving you the control for delicate simmering.

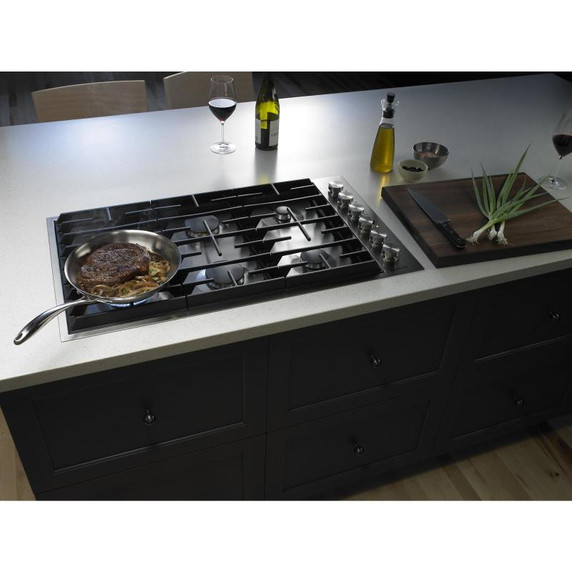

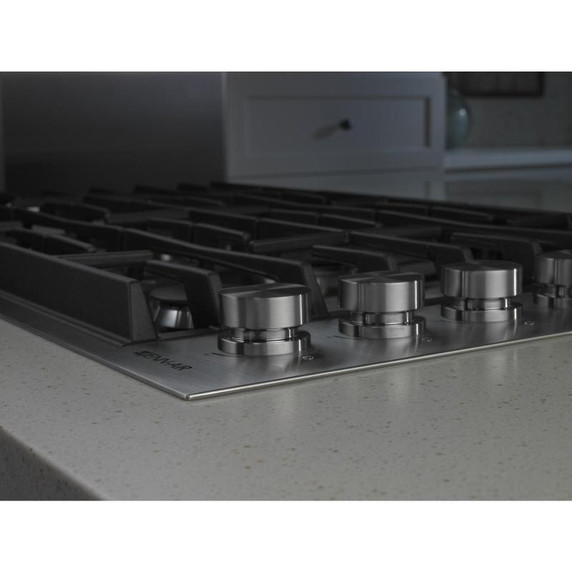

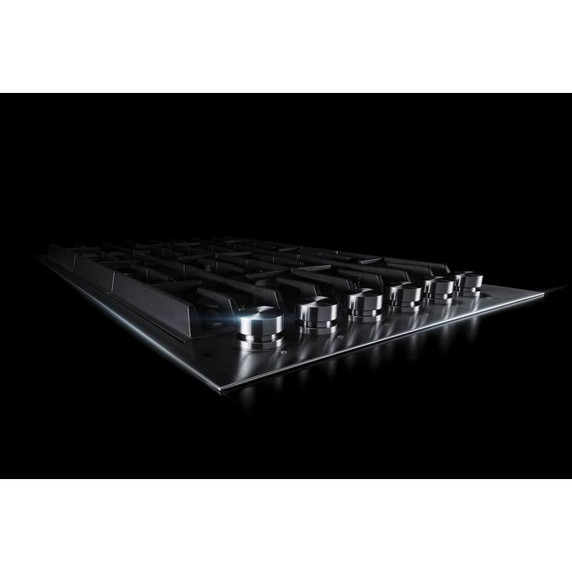

Semi-Flush InstallationSubtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
White LED Burner IndicatorWhite indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.

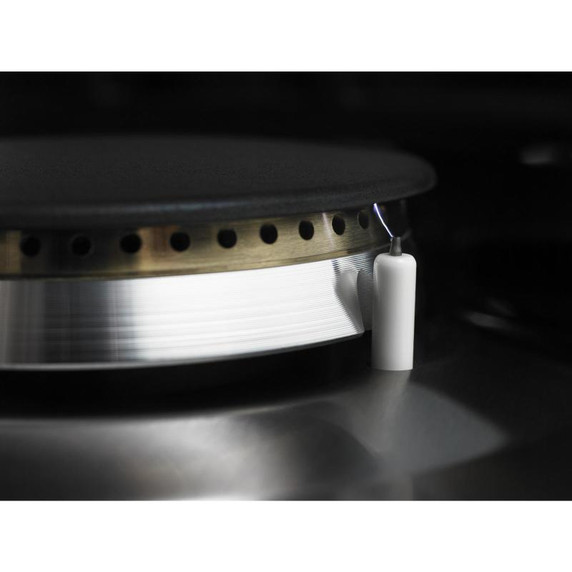

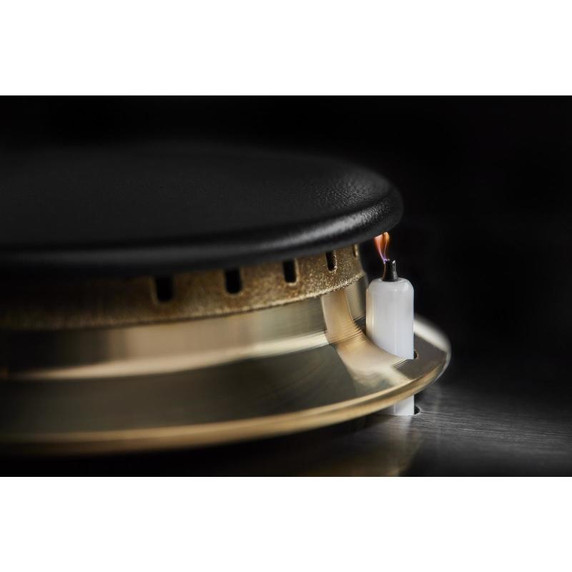

Electronic Ignition and Flame-Sensing™ Re-ignitionGas burners light reliably every time, and if a draft blows the flames out, they are automatically re-ignited.

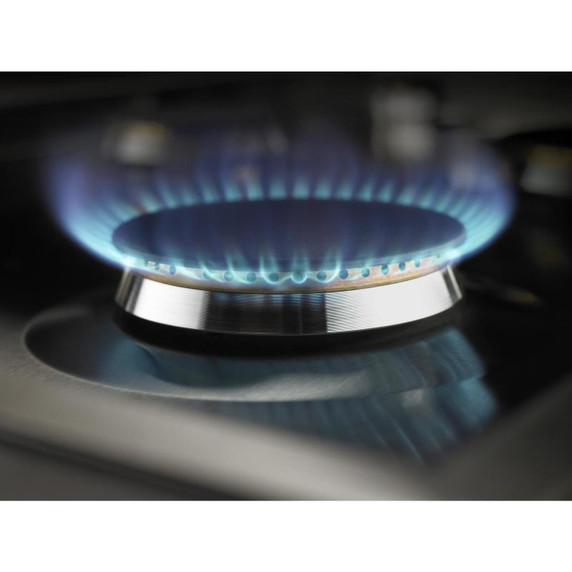

6,000 BTU Brass Simmer BurnerMelt chocolate and butter or simmer sauces just below boiling with a high-precision burner that offers a wide range of power.
Euro-Style Stainless DesignA refined design that satisfies contemporary and traditional tastes and blends in with other Jenn-Air® Euro-Style Stainless appliances.

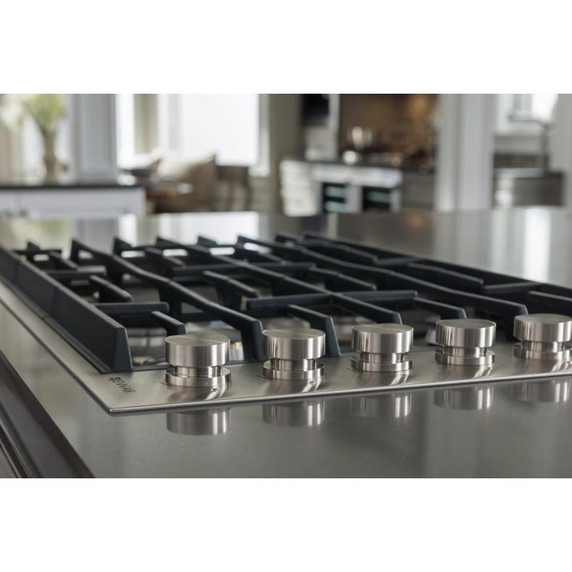

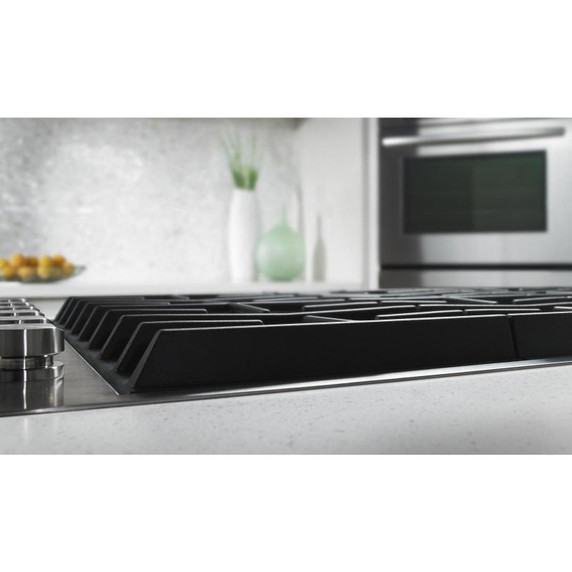

Low-Profile DesignWith an extremely low profile, you can have a minimal look —nearly flush with the countertop — for an integrated transition to the cooktop.

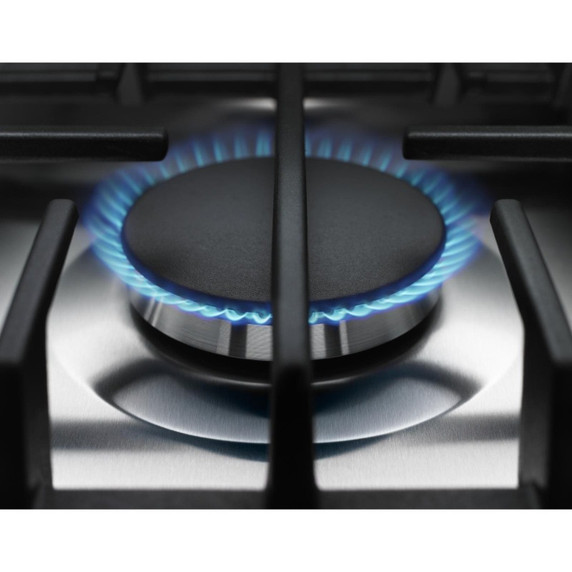

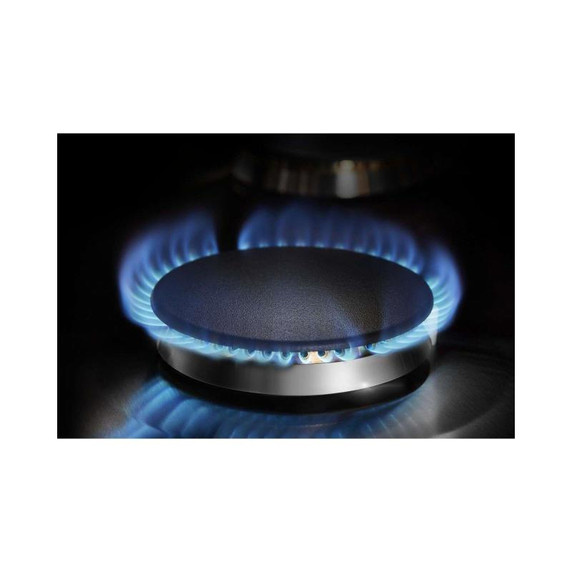

9,000 BTU Brass BurnerPerfect for everyday cooking, this brass burner also allows you to meet special cooking needs like sautéing and braising.
Single Point Electronic Ignition and Flame-Sensing™ Re-ignitionIf the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.
Infinite Burner Control SettingsEnjoy precise temperature controls by selecting your preferred burner setting — from low to high and everywhere in between.
Built-in Oven CompatibleExperience premium design and performance from high-end appliances when you install a single wall oven beneath your electric cooktop.
15,000 BTU Brass BurnerReaching a powerful 15,000 BTUs, this versatile burner features the brilliance of brass and combines precise simmer capabilities with the capacity to quickly boil water or stir fry vegetables.
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Cooktop Element StyleSealed Burners
Number Of Cooking Element Burners6
Center Rear Element Burner TypeHigh Output
Left Front Element Burner TypeSealed Burner
Center Front Element Burner Power15000BTU
Left Rear Element Burner TypeSealed Burner
Left Rear Element Burner Power15000BTU
Right Front Element Burner TypeSealed Burner
Left Front Element Burner Power18000BTU
Right Front Element Burner Power9000BTU
Right Rear Element Burner Power6000BTU
Right Rear Element Burner TypeSimmer
Center Front Element Burner TypeHigh Output
Center Rear Element Burner Power15000BTU
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenJJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Configuration and Overview
Fuel TypeGas
Design Type
Design ExpressionStainless Steel
Depth21.0"
Height4.5"
Net Weight0.0 lbs.
Width36.0"

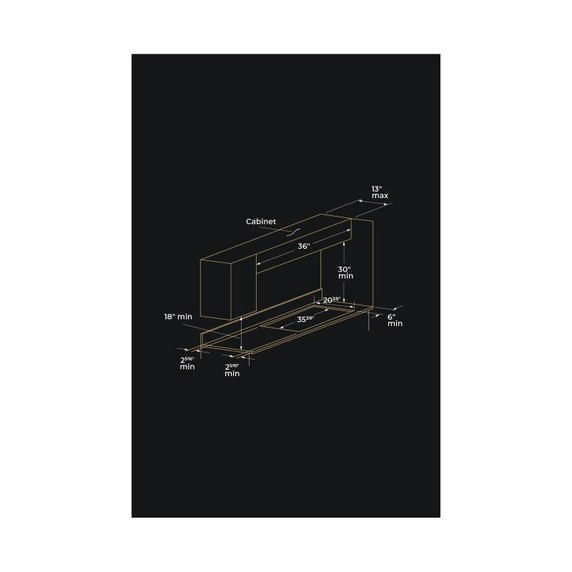

Cutout Depth20.38"
Cutout Width35.38"
Carton Depth Inch21.0
Carton Height Inch3.25
Carton Width Inch36.0
