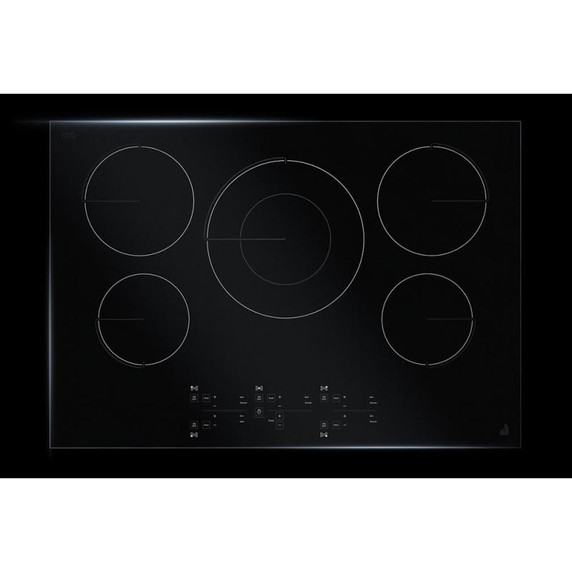

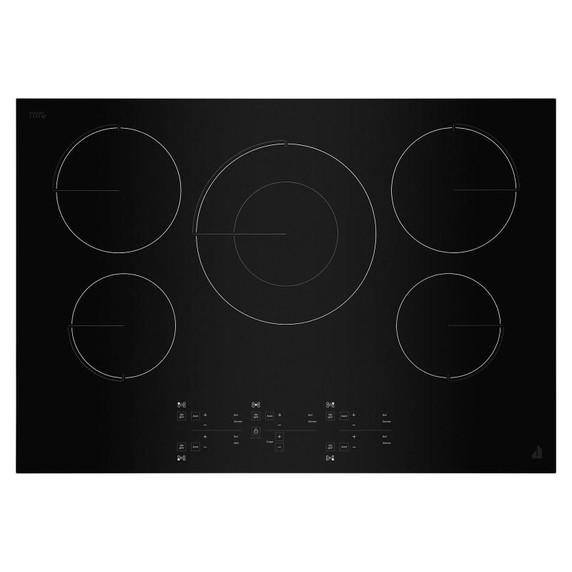

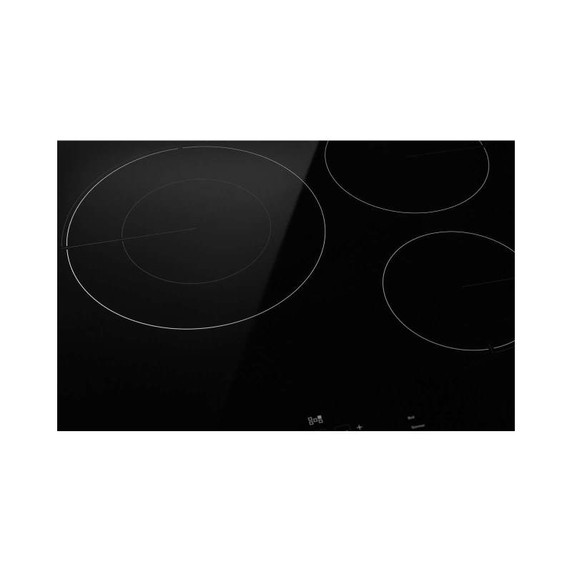

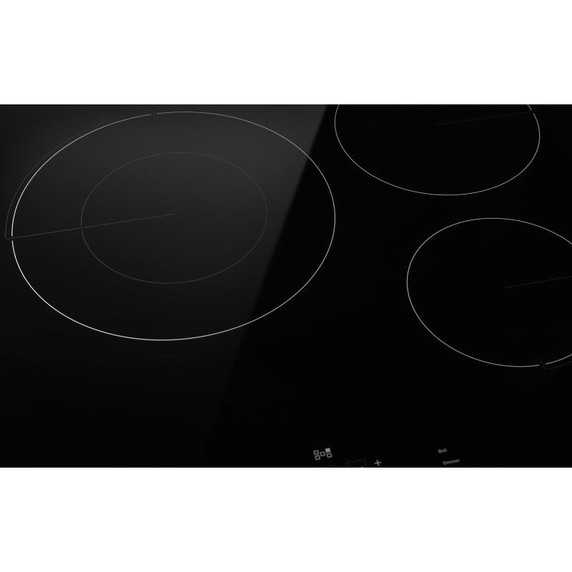

Jennair® Oblivion 30" Induction Cooktop JIC4530KB
Assisted CookingPrecisely selects an optimal power level to bring water to a boil, simmer delicate sauces or melt chocolate.

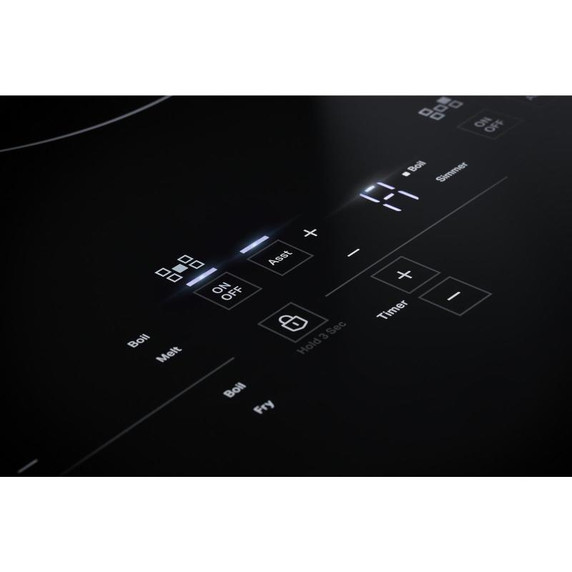

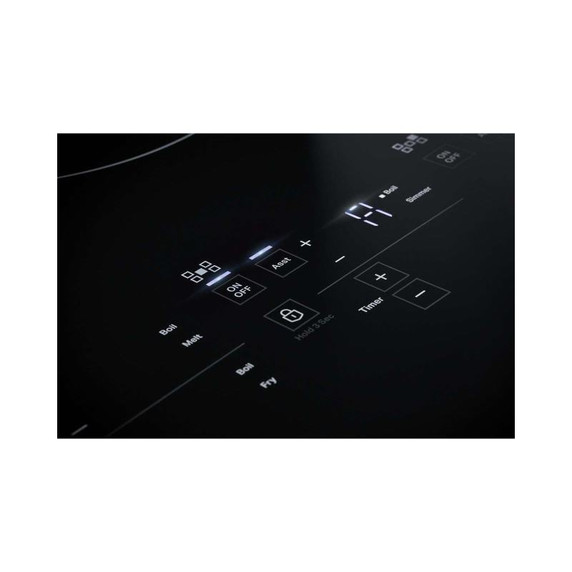

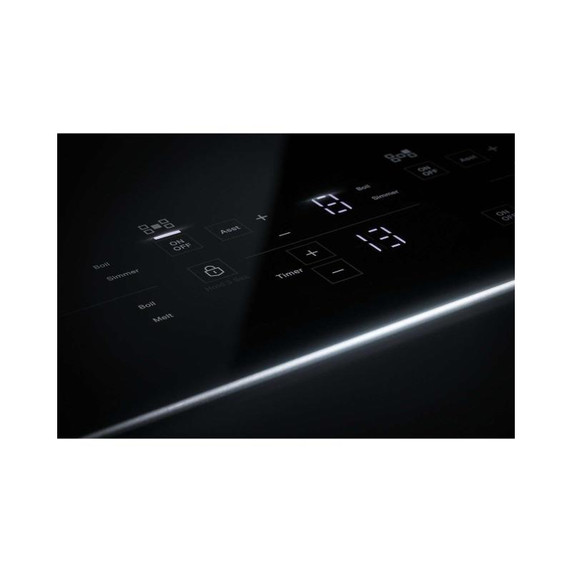

Emotive ControlsStriking, intuitive and easy to clean. Inviting controls wait expectantly for the lightest touch to unleash performance.
Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

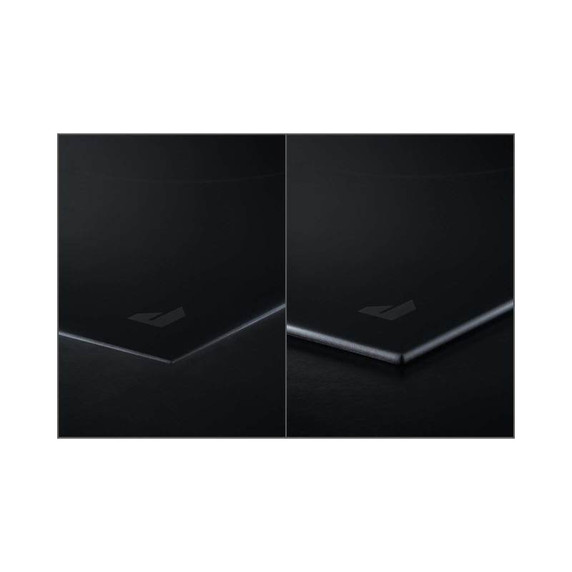

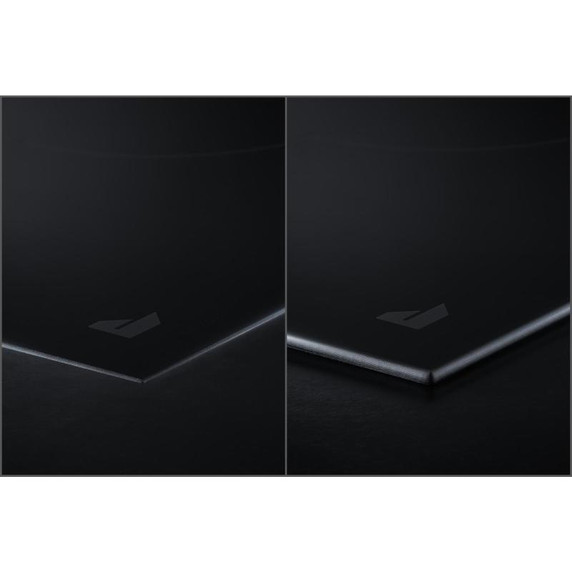

Versatile InstallationInstall without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Magnetic InductionMagnetism with a pulse. A surface that heats only the induction cookware for fierce, flexible power.
Semi-Flush InstallationSubtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

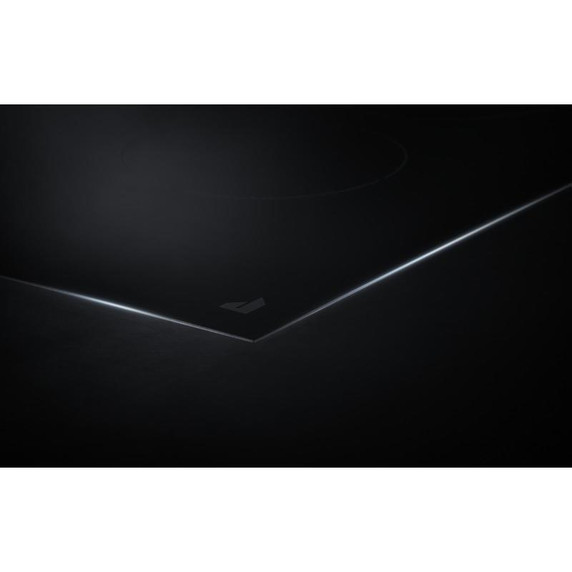

True Flush InstallationPique curiosity. A true flush installation makes the Oblivion Glass surface melt into its surroundings, luring you in.
Controls
Control TypeElectronic
Control LocationFront
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Watts10
Configuration and Overview
Fuel TypeElectric
Design Type
Design ExpressionOblivian Glass
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW09IW2Y, EW09IW4Y, EW09IW1Y
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Downdraft VentNo
Installs Over Built In OvenYes
Automatic Pan DetectionYes
Automatic Pan Size AdjustmentYes
Digital DisplayYes
Power BoostYes
True Flush InstallationYes
Certifications
ULYes
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenJJW2424; JJW2427; JJW2430; JJW3430; JMC6224 (US ONLY)
Cooktop Details
Center Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Cooktop Element StyleInduction
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Front Element Burner Size6in.
Center Front Element Burner Power2100W/4000WBoost
Right Front Element Burner Power1200W/1800WBoost
Center Front Element Burner Size11in.
Left Front Element Burner Power1200W/1800WBoost
Left Rear Element Burner Power1800W/2150WBoost
Left Rear Element Burner Size7in.
Right Rear Element Burner Power1800W/2150WBoost
Right Rear Element Burner Size7in.
Depth21.3"
Height4.0"
Maximum Height4.0"
Minimum Height3.67"
Net Weight46.0 lbs.
Width25.6"
Carton Depth Inch25.28
Carton Height Inch7.64
Carton Width Inch34.15
