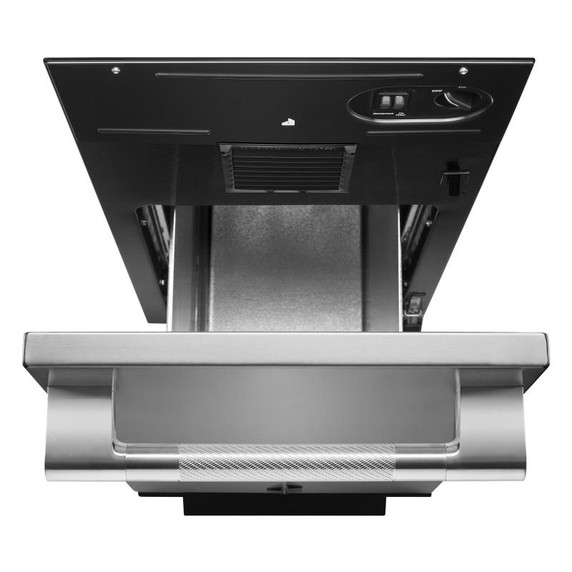

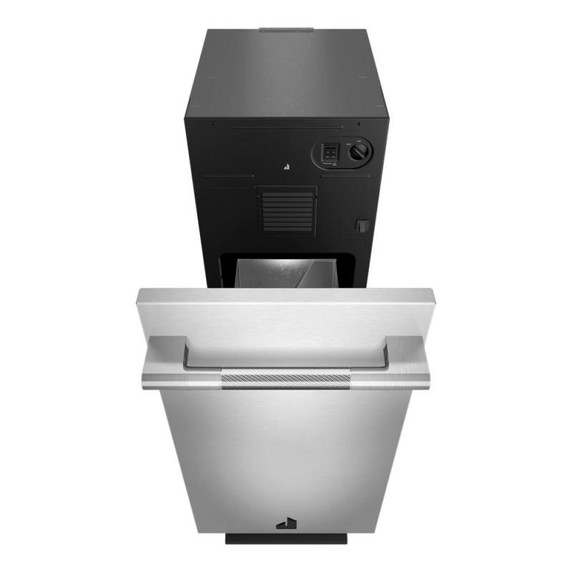

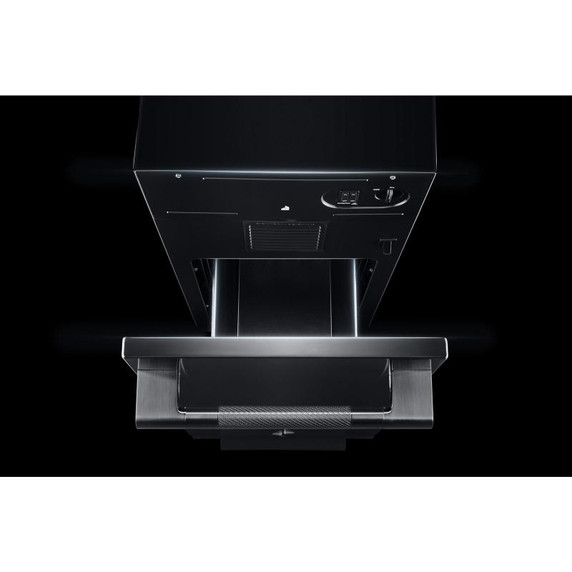

1.4 Cu. Ft. Drawer Capacity with 5:1 Compaction Ratio Using Compress OptionThere’s room to handle the cast-offs of all your exploits—so you can handle them less often. Select the Compress option to unleash 2,300 pounds of pressure.
Sound InsulationAmple insulation helps reduce sound before it reaches the room.

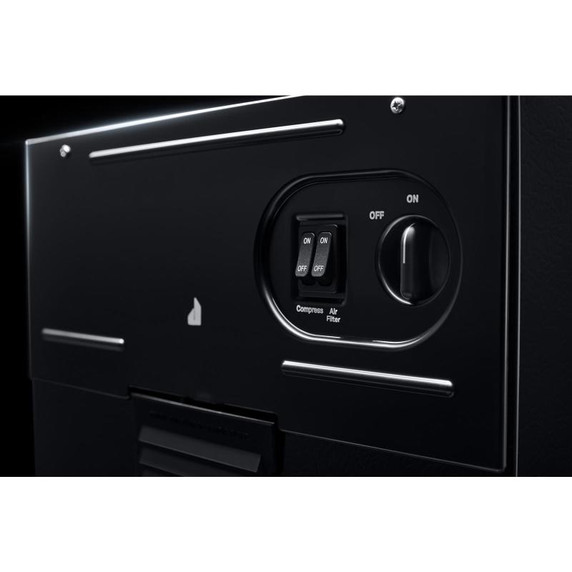

Concealed ControlsClose the compactor and the panel hides away for a clean, seamless exterior.

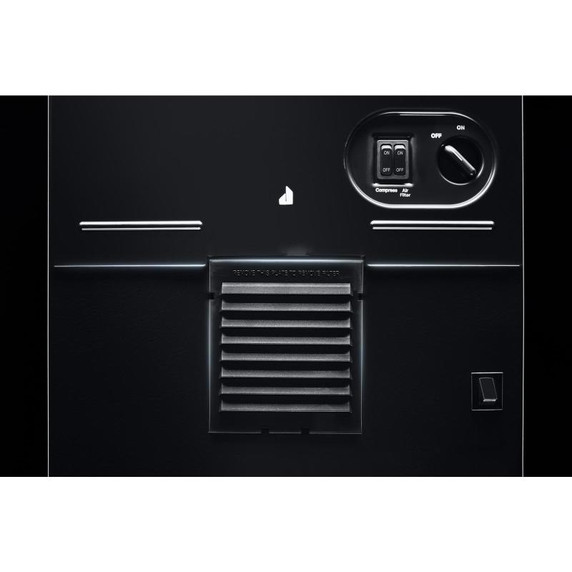

Fan with Charcoal FilterCurate every aroma. Activated charcoal and fan circulation keep unwanted odor from interfering with your sensory experience.
Anti-Jam and Tilt SensorsAnti-Jam and Tilt Sensors ensure smooth operation, even for the most challenging loads.

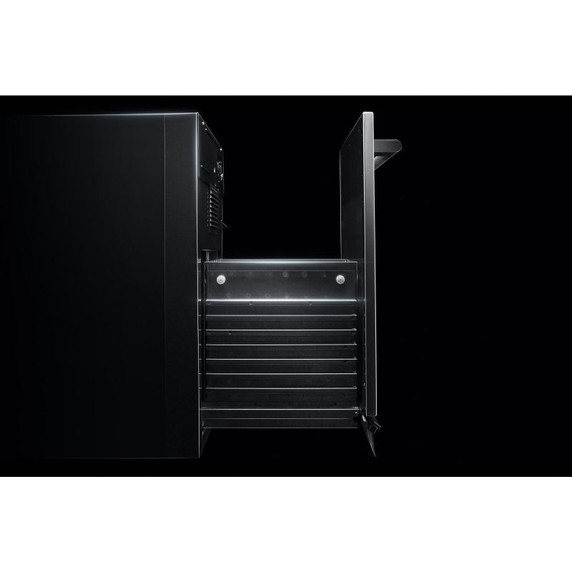

Robust Zinc-Coated Frame and DrawerWithstand the tension. Muscular construction and rust-repelling zinc hold true under pressure.
Side Release BinAccess on the side. An ergonomic side latch lets you remove the bag without lifting it overhead.
Two Compactor Bags IncludedNo time wasted. Two courtesy bags allow you to use your compactor right away.
Bag Retainer ButtonsPre-punched holes lock bags into place without risking damage.
1/3 HP Heavy-Duty Motor (Digital Training Guide)All the power needed to achieve compaction, and increase compression by 25% with the compress option.
2-Point Drive System (Digital Training Guide)Evenly distributes pressure to help avoid jams from uneven loading.
Power Screw-Driven Compactor Ram (Digital Training Guide)Works in concert with the motor to create continuous compression.
Compress OptionSelect this option to unleash extra consistent pressure to compress 25% more trash.

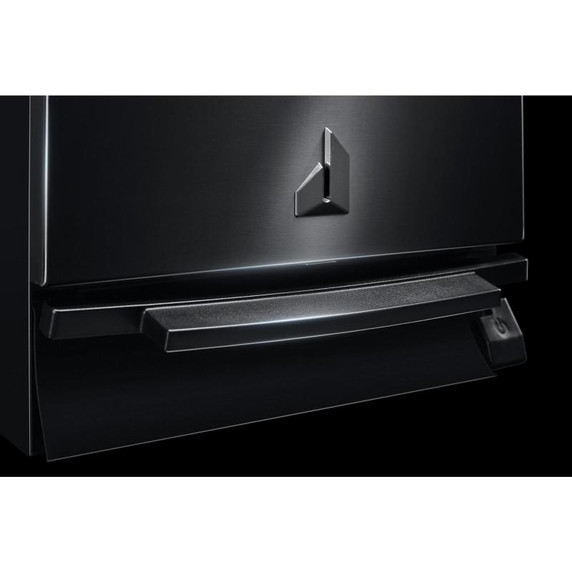

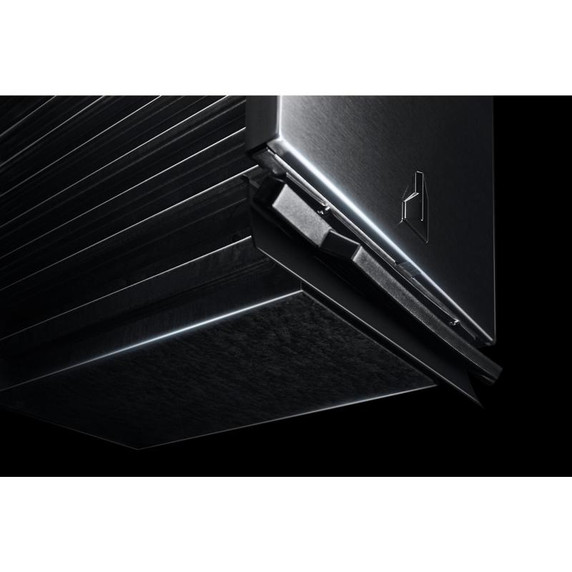

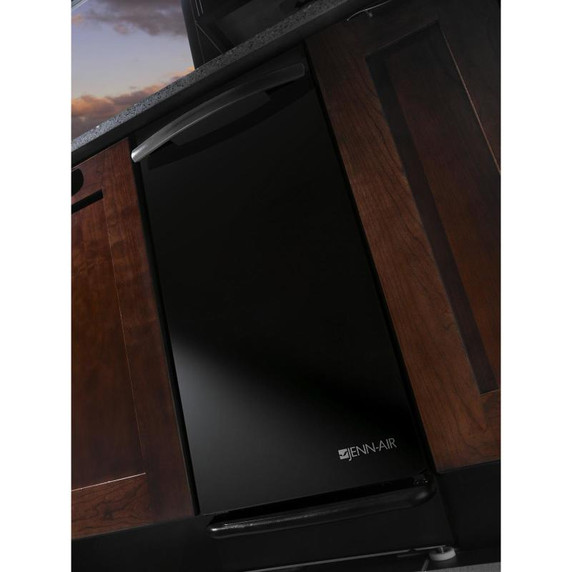

Open/Start PedalTake it all the way to the edge. This foot pedal extends the full length of the compactor, combining aesthetics with responsiveness. A full press opens, a slight press starts.

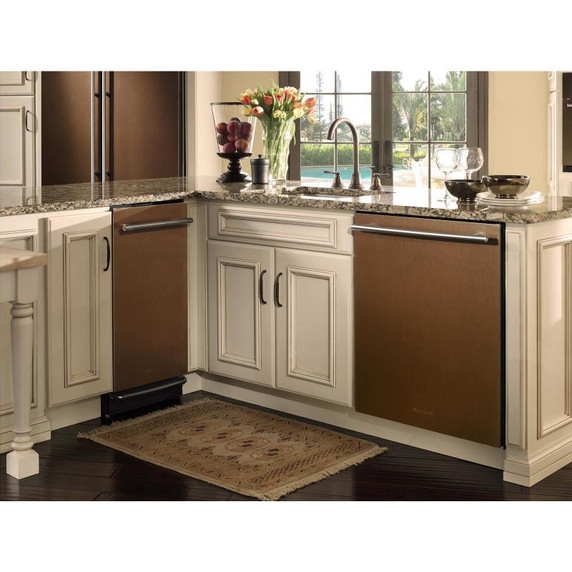

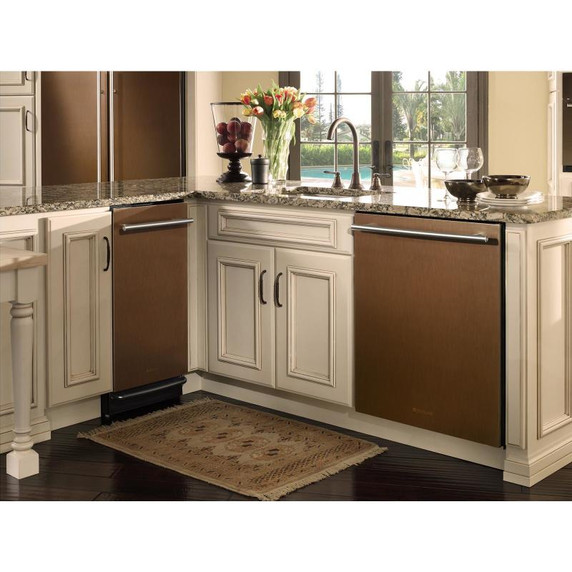

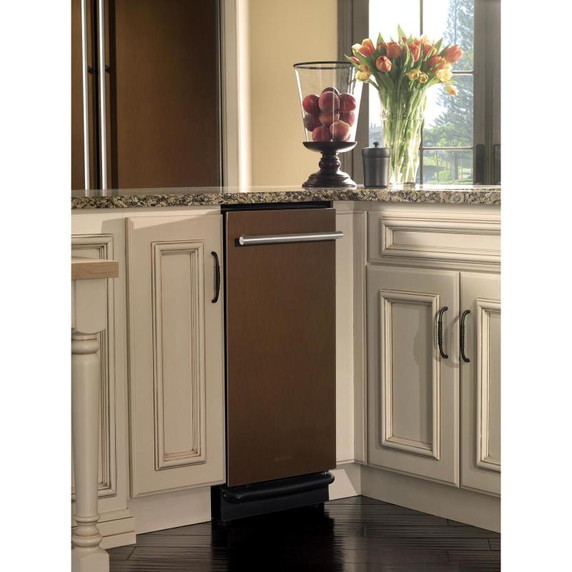

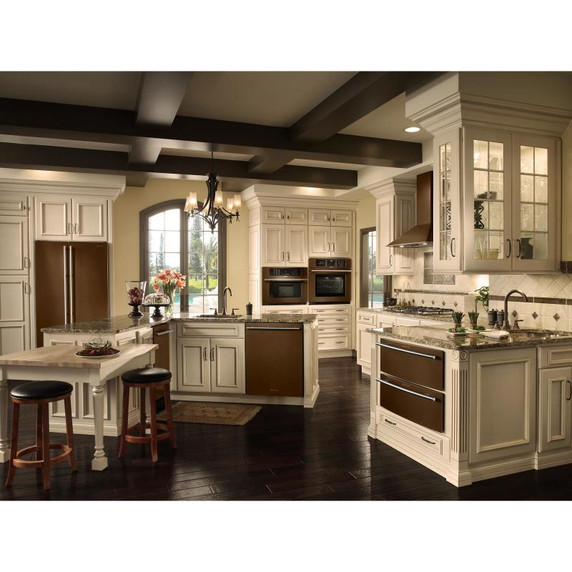

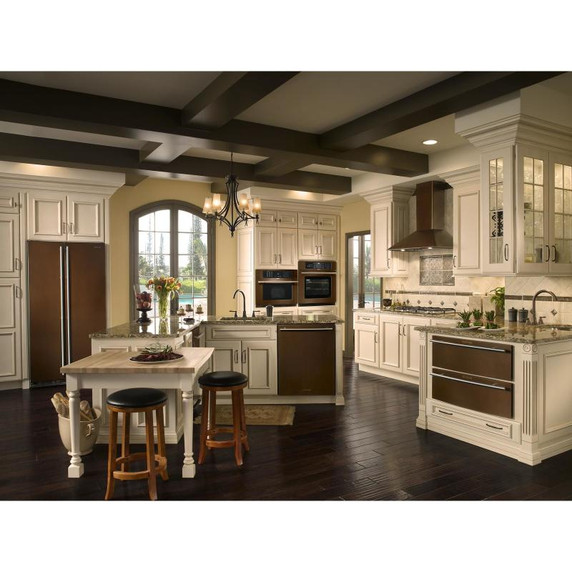

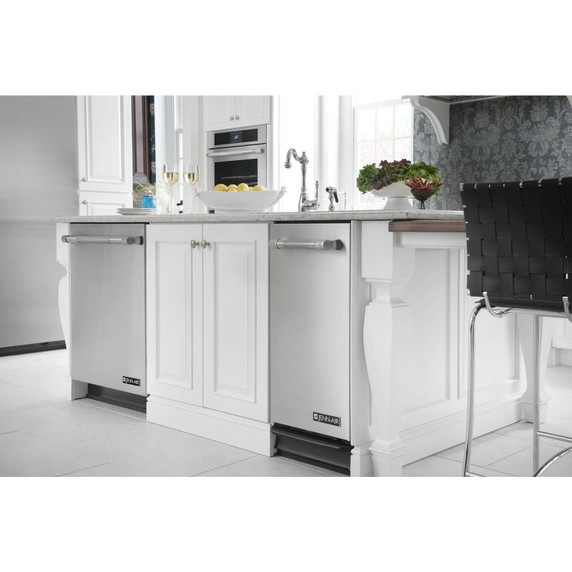

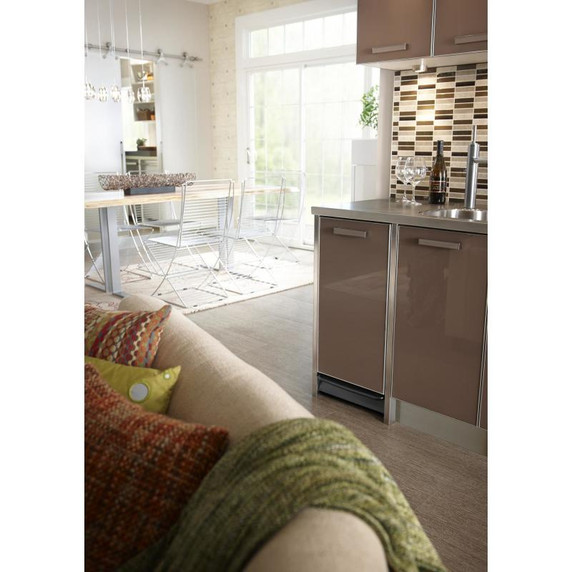

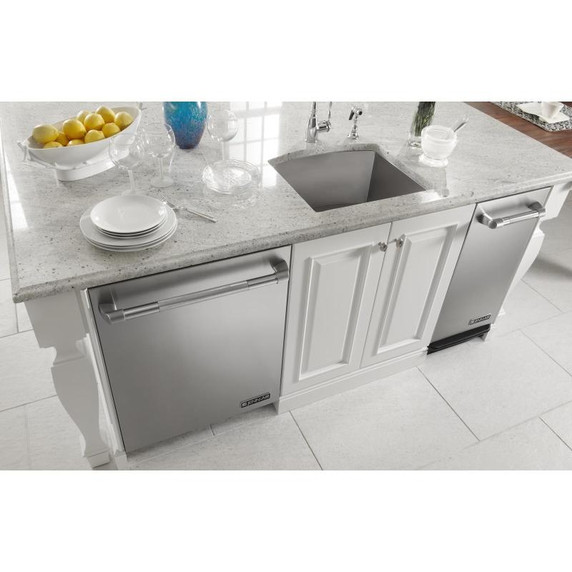

Undercounter InstallationThe trash compactor can be installed to blend in with cabinetry, including at the end of a cabinet run.
Front Levelers and Rear RollersSilky smooth installation. Slides in on rollers and evens out with front-access levelers.
Controls
Control TypeElectronic Touch
Air Filter Fan On OffYes
Solid Pack On OffYes
Tilt SwitchYes
Electrical
Volts120
Amps15
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW06IW1Y, EW06IW4Y, EW06IW2Y
Optional AccessoriesJKTPX151HM, W11231235, W11231232, JKTPX151HL, W10165295RP
Required AccessoriesJKTPX151HM, W11231232, JKTPX151HL, W11231235
Features
Bag Retainer ButtonsYes
Odor Management SystemFan with Charcoal Filter
Sound PackageYes
Bags IncludedYes
Certifications
ULYes
Exterior
Door FinishSmooth
Handle TypeTowel Bar
Removable Key LockYes
Toe Bar Drawer OpenerYes
Details
Motor Horsepower1/3 HP
Compaction Ratio5 to 1
ConstructionAll Welded
Front Levelers Rear RollersYes
Side Release BinYes
Solid PackYes
Carton Depth27.0"
Carton Height36.0"
Carton Width16.75"
Depth24.0"
Gross Weight135.0 lbs.
Height34.13"
Net Weight125.0 lbs.
Width14.88"
Cutout Depth24.0"
Cutout Height34.5"
Cutout Width15.25"
Capacity FT3 (cubic feet)1.4
