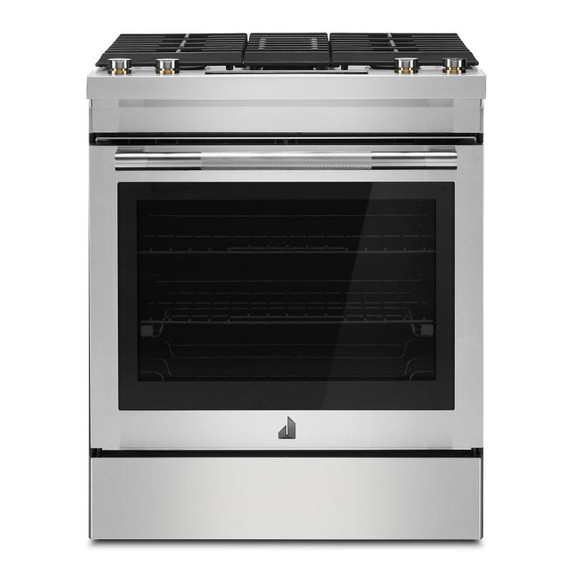

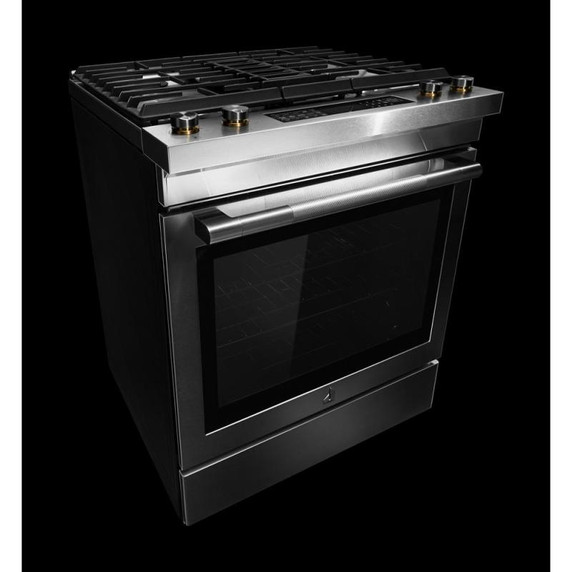

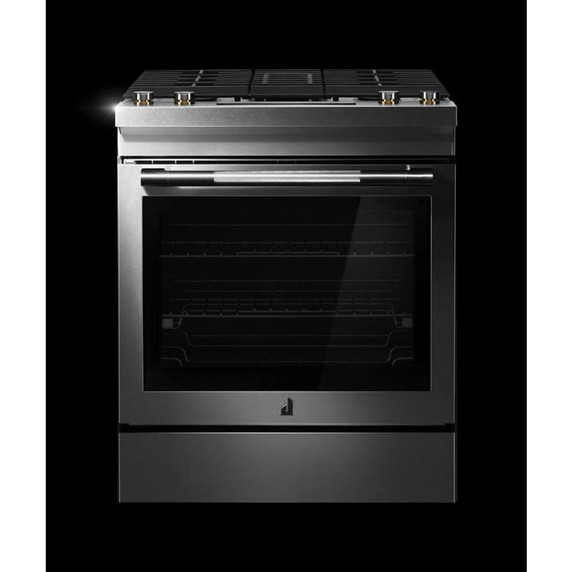

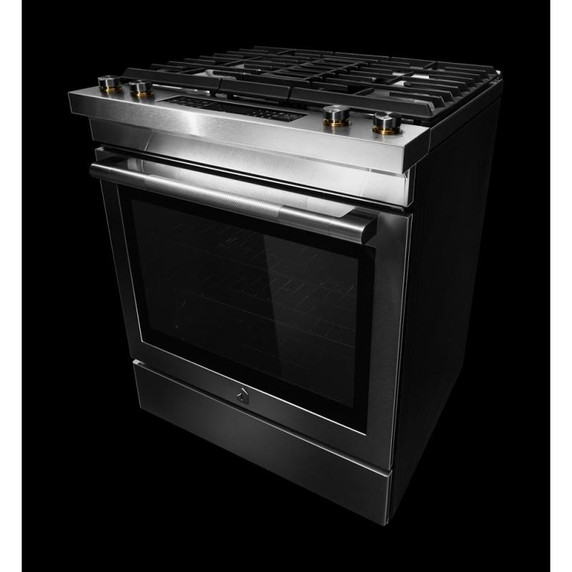

Jennair® 30" Dual-Fuel Downdraft Slide-In Range JDS1750ML

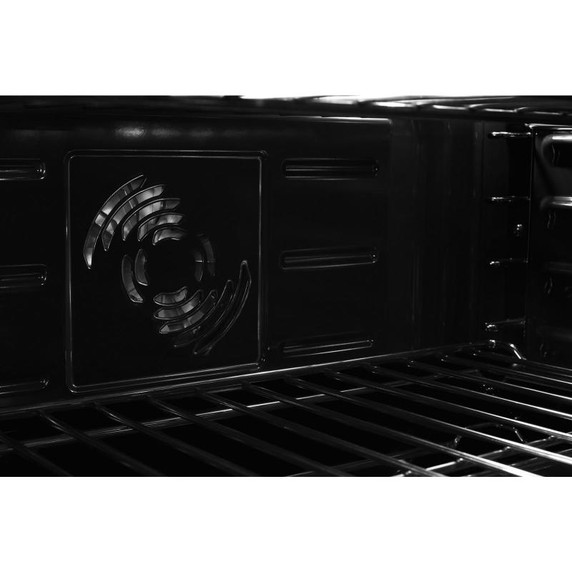

True ConvectionSteady heat circulates around every rack by whirling metal blades. Flaunt your cooking prowess with mouthwatering, flaky pastries and irresistible roasts.

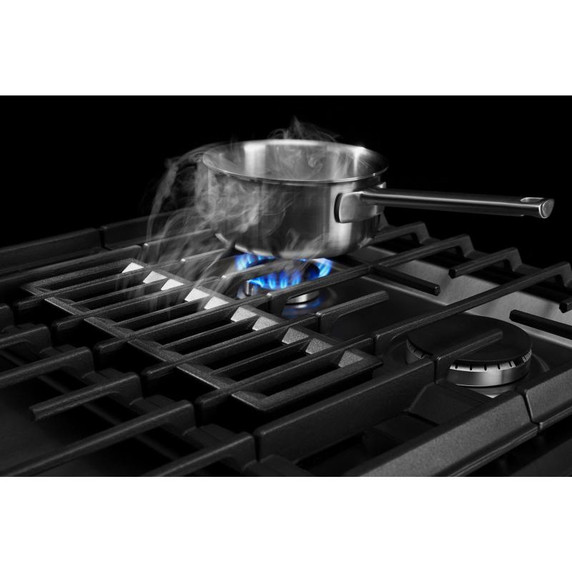

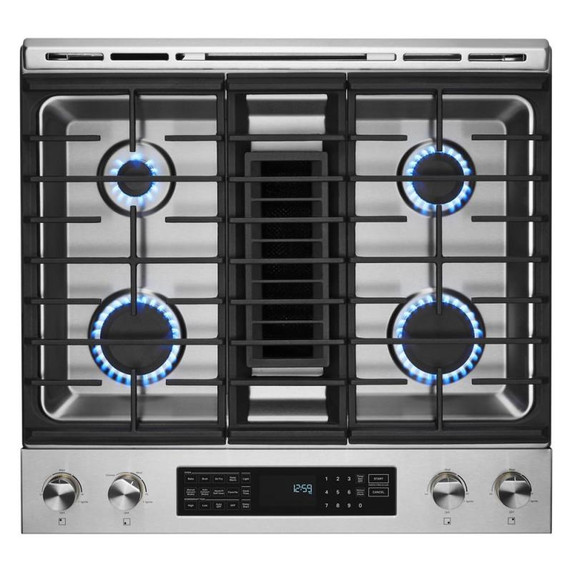

Downdraft VentilationDeveloped and refined by JennAir brand, this downdraft ventilation system helps capture smoke, steam and odors at the cooking surface, drawing them down and out of the kitchen.
DuraFinish™ ProtectionDuraFinish™ Protection keeps your cooktop’s stainless steel surface looking new by resisting yellowing, staining and scratching.

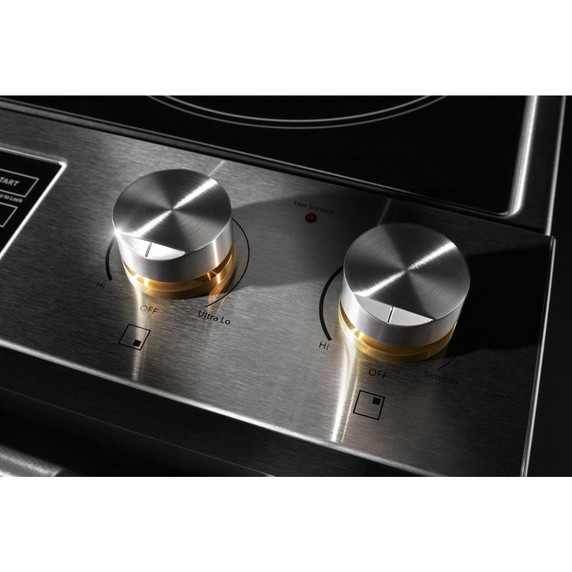

Die-Cast Metal KnobsRobust, die-cast metal knobs offer precise control and coordinate with the range's design.

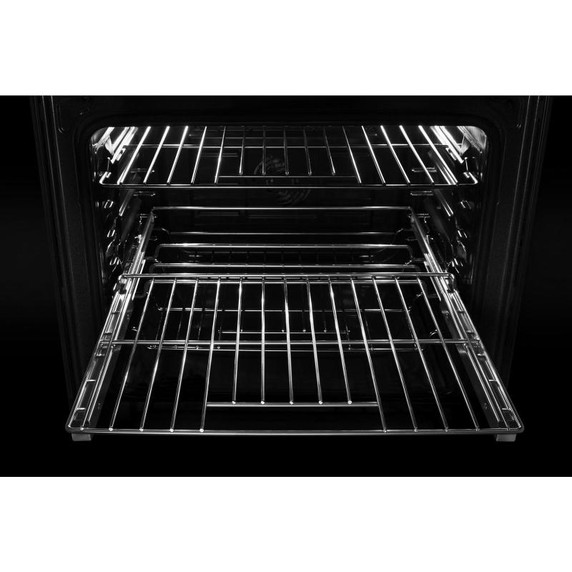

Glide RackThe glide rack smoothly and quietly slides in and out, even when fully loaded.
Cast-Iron GratesWash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.

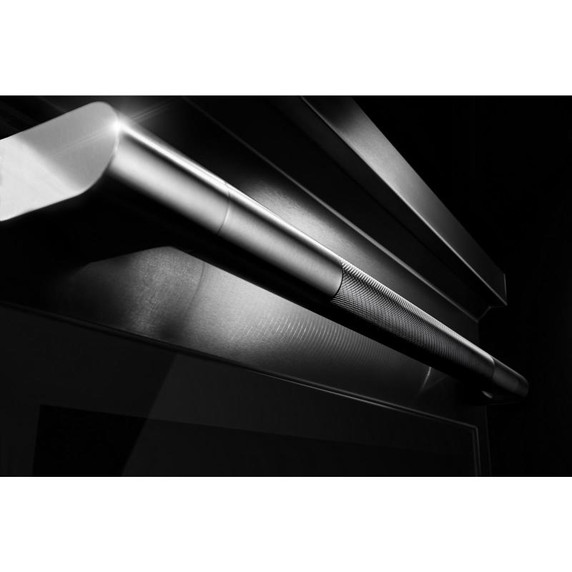

RISE™ Design ExpressionForged for an era of striking proportions, robust lines of the RISE™ Design Expression draw the eye to its traditional yet unconventional design. Indulge in the details — a custom, diamond-knurled handle, brass-inspired bezels and a bold badge.

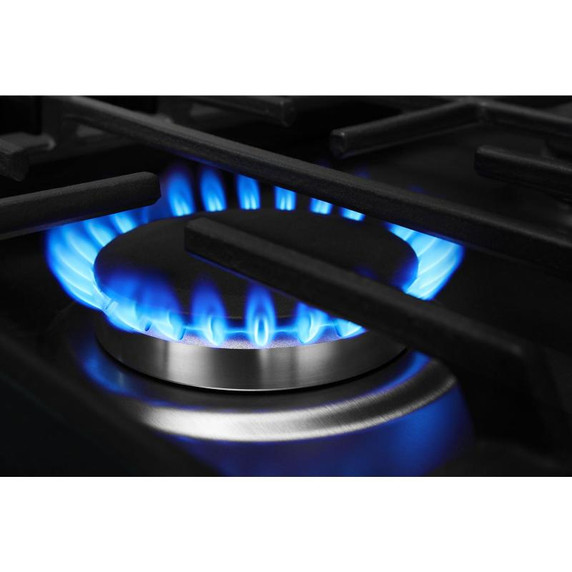

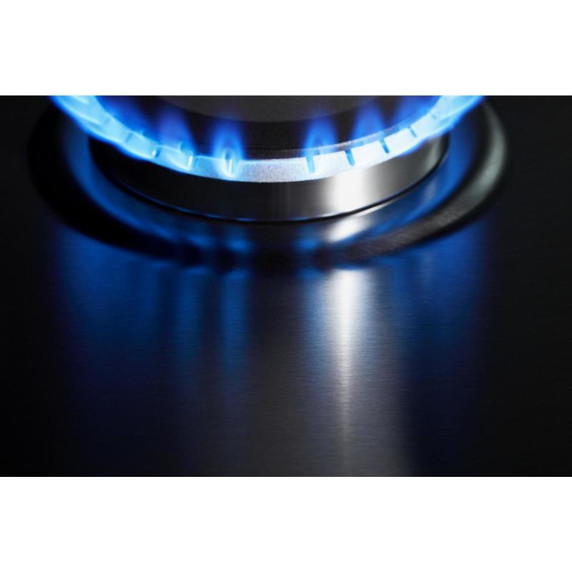

17,000-BTU BurnerEnjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.

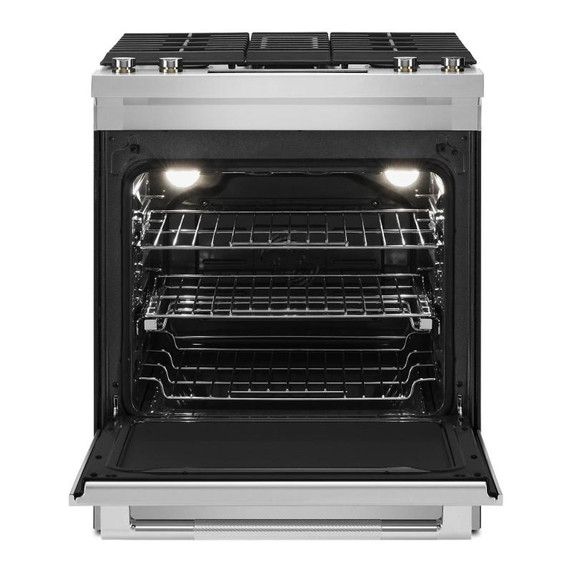

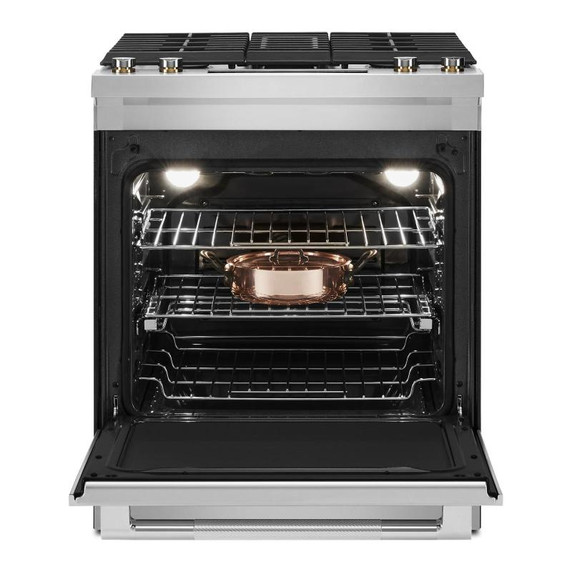

6.2 Cu. Ft. CapacityA generous 6.2 cu. ft. capacity of the oven cavity lets you cook multiple dishes on multiple racks at once.
Emotive ControlsStriking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.
Air FryAchieve crispy results on your favourites, from fresh vegetables to guilty-pleasure fried foods. Preheat the oven, then use Air Fry to circulate hot air around the air fry basket to crisp food using little to no additional oil.

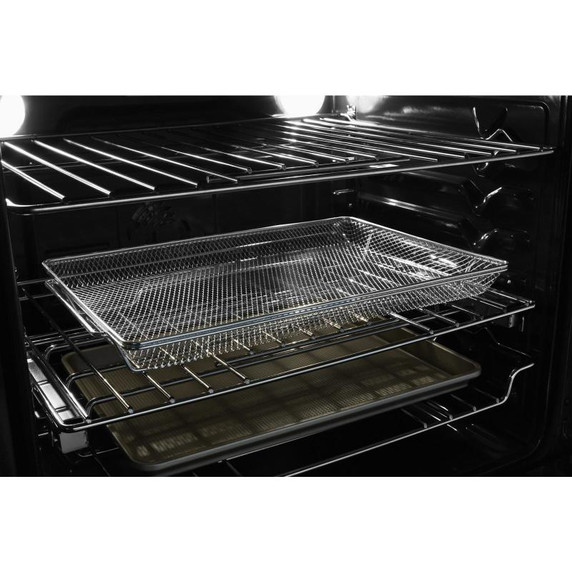

Air Fry BasketUtilize the stainless steel Air Fry Basket in the oven to crisp food, then clean it easily in the dishwasher.
AquaLift® Self-Cleaning TechnologyClean the oven with minimal odors at a temperature below 248°F. This innovative 40-minute cycle combines low heat with water to release baked-on spills that can be wiped away once the cycle is complete.*

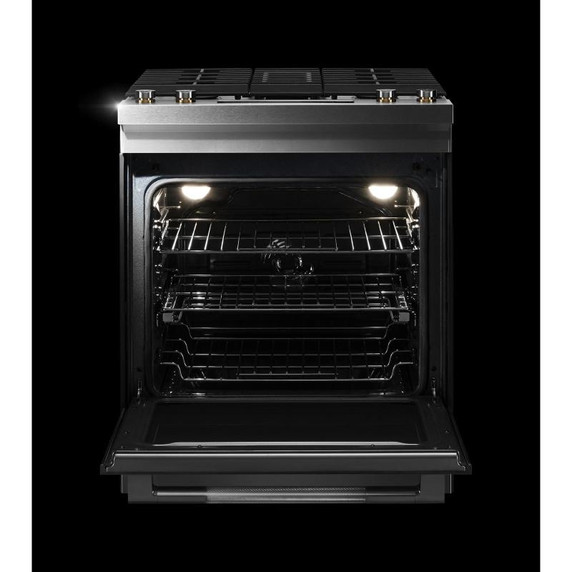

Halogen lightingHalogen lighting illuminates the interior of the oven to showcase food.
ADA CompliantDesigned to meet ADA standards when installed according to the ADA guidelines.
Experts at the ReadyOur crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Specifications
Country Of OriginUSA
Matte Finish Vs Satin FinishMatte Finish
Dishwasher SafeNo
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW10432544, W10748976, W10800530, W10655448, W10115773, W10675028, W10731885, W10731886, W10655449, W10731887, W10675027, W10655450, W10675026
Certifications
ULYes
ADA CompliantYes
Energy Rating Kwh Year395
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeReach-Through Handle
Configuration and Overview
Fuel TypeDual Fuel
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypePMVA LCD
Cooktop Details
Cooktop Element StyleSealed Burners
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop ConfigurationAll Burners
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power15000BTU
Number Of Grates2
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power17000BTU
Right Rear Element Burner Power9200BTU
Grate DetailsCast Iron Grates; Continuous; Matte Finish
Electrical
Power Cord IncludedYes
Volts240
Amps40
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Total Gas Btus Cooktop46,200
Details
Broiler LocationTop of Oven
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Control LocationFront Control
Oven Light Switch LocationOven Control
Number Of Oven Lights2
Oven Cooking SystemConvection
Oven Control TypeTap Touch
Oven Light TypeIncandescent
Convection Element TypeFan
Broiler Element Power4000W
Number Of Oven Racks3
Cooktop Surface MaterialStainless Steel
Number Of Rack Guides7
Oven Interior Depth In Inches20.75
Bake Element Power3600W
Oven Interior Width In Inches24.25
Oven Rack TypeGliding Roll-Out; Heavy Duty; Max Capacity
Convection Element Power Watts3200
Convection FunctionsAir Fry; Bake; Broil
Description
Size In30
Range TypeSlide-in
Compatibility
Connectivity
Works With
Energy
Annual Energy Usage Kwh395
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles27.81"
Depth Closed Including Handles28.63"
Depth28.63"
Gross Weight258.0 lbs.
Height36.0"
Width29.88"

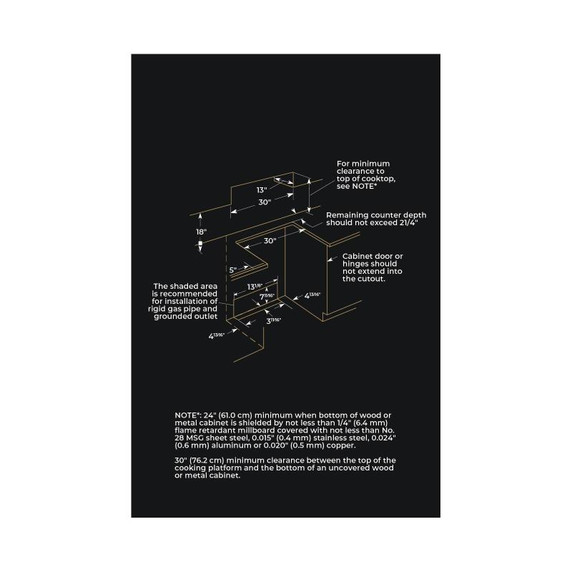

Cutout Width30.0"
Capacity FT3 (cubic feet)6.4
