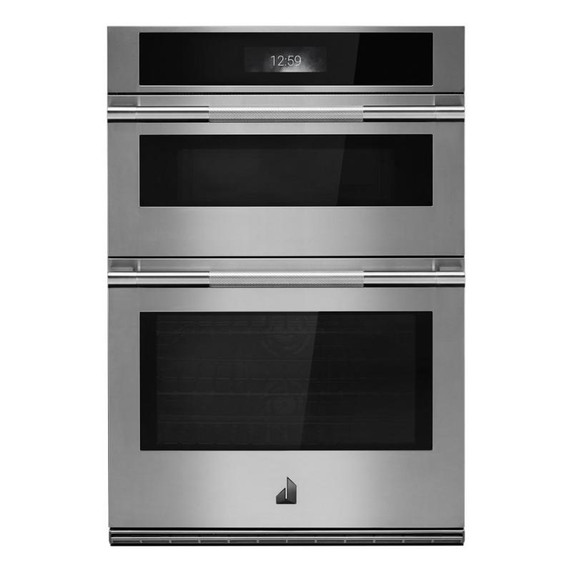

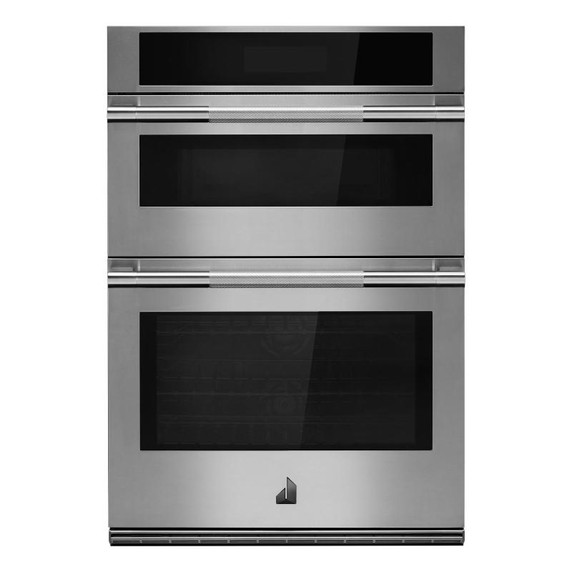

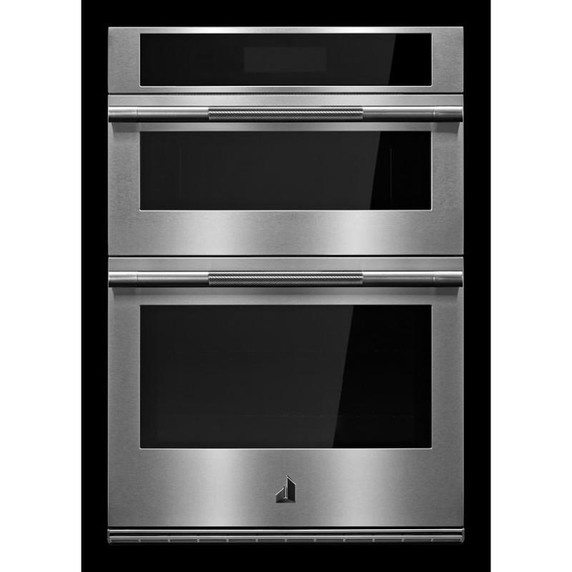

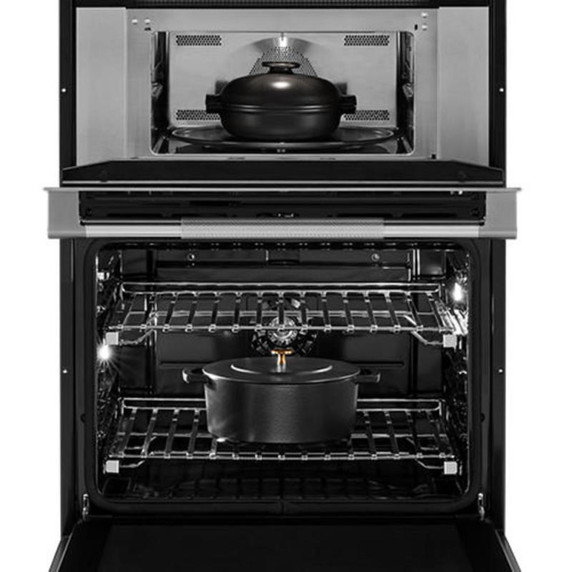

Jennair® RISE™ Microwave Combination Wall Oven with MultiMode® Convection JOECC530RL
JennAir
Jennair® RISE™ Microwave Combination Wall Oven with MultiMode® Convection JOECC530RL
MultiMode® True Convection SystemSteady heat generated by a 3,200W element is circulated by whirling metal blades, weaving around every flat tine. Wield your cooking prowess from marbled meats to succulent roasts.
Smart Wall OvenFluently control your wall oven—whether in the kitchen or not. The JennAir® App empowers you to remotely control and monitor the oven, prompts you when it's time to tend to your dish or you can select from chef-inspired recipes designed to provide you with effortlessly delicious results. Use simple voice commands with your Google Assistant or Alexa-enabled device* for an even more seamless cooking experience.

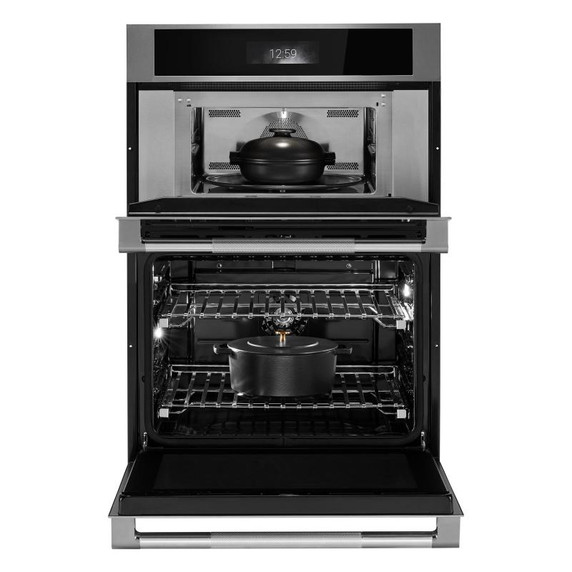

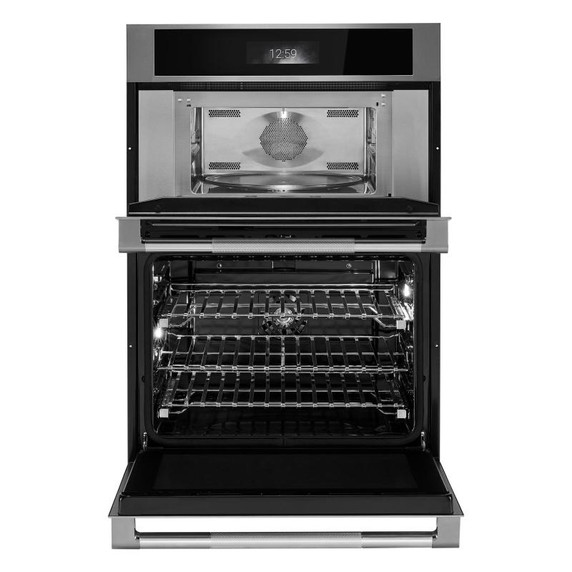

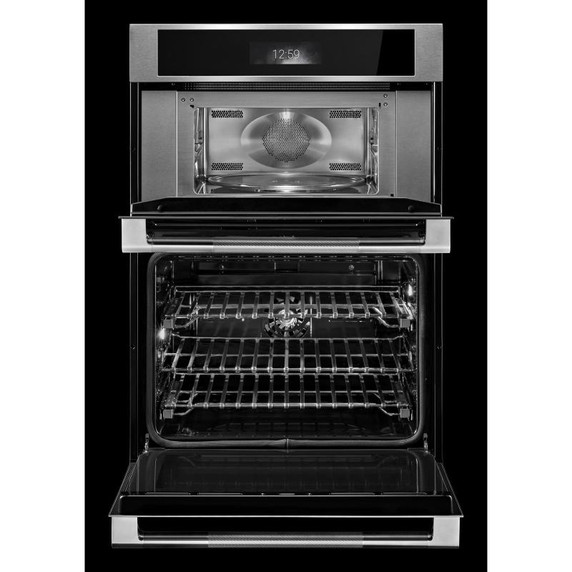

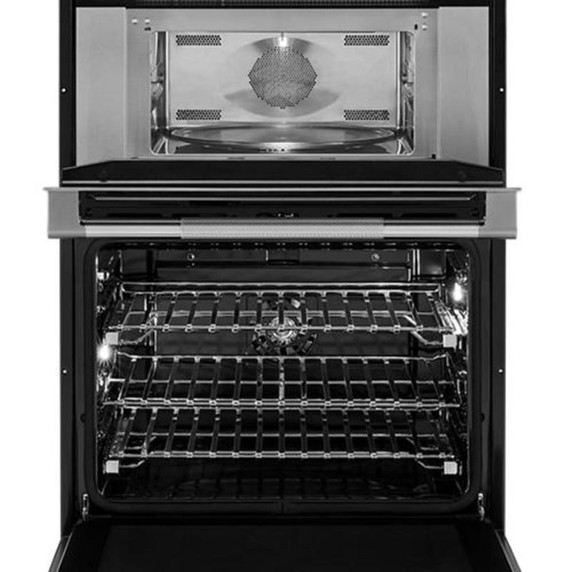

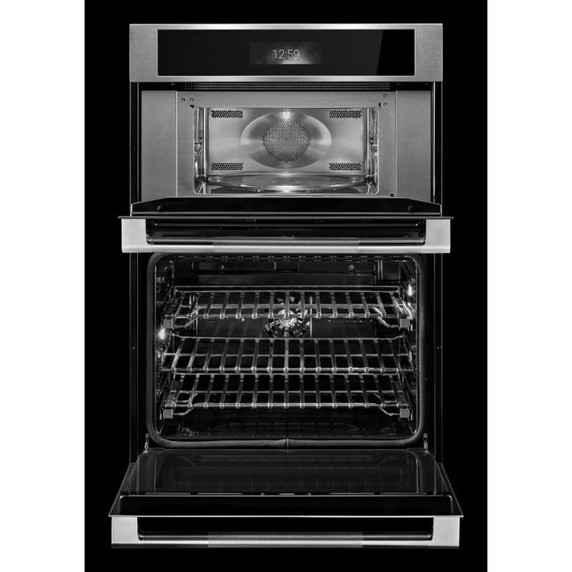

Jet Black Oven InteriorCaptivation cloaked in black. Behind the dark glass door, ramp-up cinematic lighting illuminates smooth-gliding flat-tine racks and an enticing jet black interior.
5.0 Cu. Ft. CapacityA generous 5.0 cu. ft. capacity lets you cook multiple dishes at once, so you can go all out on entertaining.
4,000-Watt Broil ElementTap into high-wattage heat designed to broil meats to tantalizing caramelization.
8-Pass Reflective Broil ElementThis broiler element crosses the length of the oven 8 times for optimal coverage and intense heat. Plus, a stainless steel plate sits above the element to reflect heat back onto food.
Control LockControl Lock prevents unintended use of the oven and ensures complete, simple cleaning of the controls.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Controls
Display ColorFull Color
Control TypeManual
Microwave
Microwave SelectionsAdd 30 Seconds; Auto Cook; Beverage; Boil & Simmer; Control Lock; Convect; Cook; Cook Power; Cook Time; Crisp Pan; Defrost; Dinner Plate; Easy Convect; End of Cycle Signal; Fresh Vegetable; Frozen Entree; Frozen Vegetable; Grill; Keep Warm; My Creations; Off/Cancel; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; Speed Cook; Steam; Timer
Microwave Details
Cooking Power Watts900
ConvectionYes
Door SwingDrop Down
GrillYes
Microwave Capacity Cu Ft1.4
TurntableYes
Turntable Diameter Size In14.13
Convection Power Watts900
Interior LightYes, Incandescent
Grill Power Watts1,600
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Configuration and Overview
Fuel TypeElectric
Design Type
Design ExpressionRISE™
Compatibility
Connectivity
Refinement KAD
Temperature ProbeYes
Energy
Annual Energy Usage Kwh390
Specifications
Country Of OriginUSA
Sabbath ModeYes
Optional AccessoriesW11256305
Product To Product Pairs
Extended Service Plan ParentEW11IW4Y, EW11IW2Y, EW11IW1Y
Features
Language ConversionEnglish/French
Sensor CookingYes - Microwave
Oven SelectionsAssisted Cooking; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Cook and Hold; Delay Start; Favorites; Keep Warm/Warm Hold; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Temperature Conversion; Temperature Probe; Temperature-Sensor Baking; Timer
Certifications
ULYes
Energy Rating Kwh Year390
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Oven ConfigurationMicrowave Combination
Description
Size In30
Details
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Light TypeHalogen
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Number Of Bake Elements1
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Broiler Element Power4000W
Number Of Oven Racks3
Bake Element Power2800W/2427W
Convection FunctionsBake, Broil, and Roast
Convection Element Power Watts3200
Oven Capacity Cu Ft5
Oven Cooking SystemMultiMode® True Convection
Carton Depth31.0"
Carton Height46.0"
Carton Width35.0"
Gross Weight293.88 lbs.
Net Weight288.88 lbs.
Depth Closed Excluding Handles24.31"
Depth With Door Open 90 Degree45.44"
Depth23.25"
Height43.75"
Width30.0"
Cutout Depth24.0"
Cutout Height41.5"
Cutout Width28.5"
Depth Excluding Doors23.0"
Capacity FT3 (cubic feet)6.4
