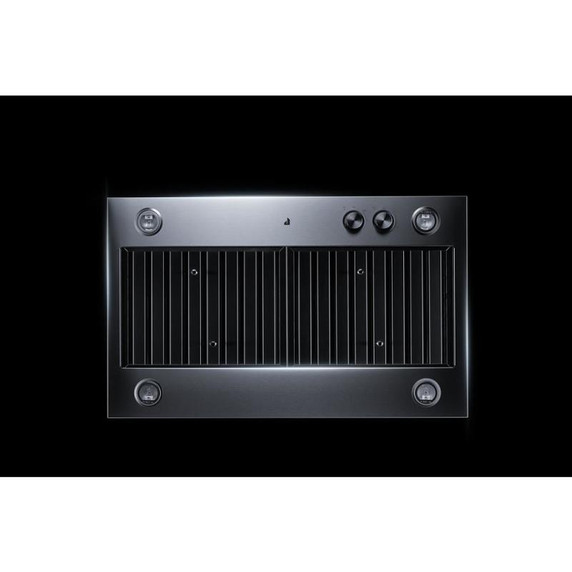

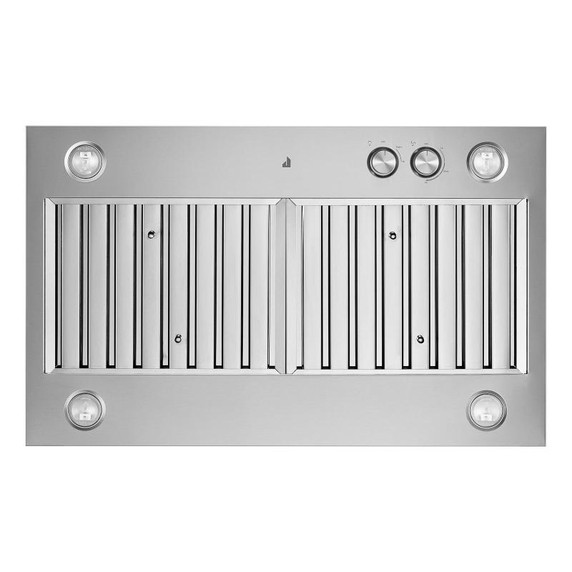

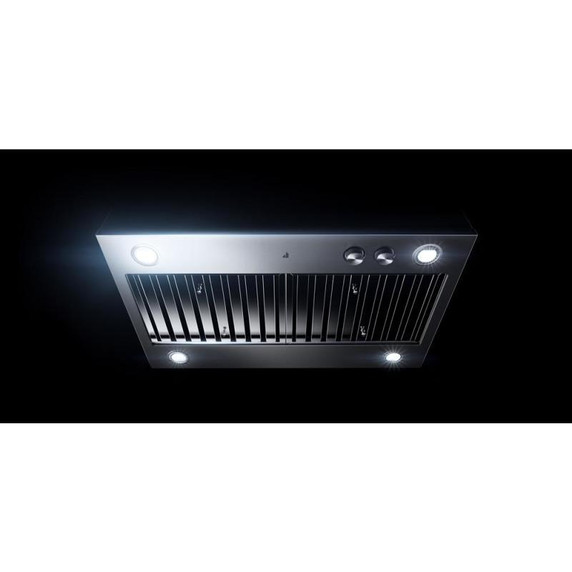

Jennair® 36" Custom Hood Liner JXL6536HSS
Optional 600 CFM or 1,200 CFM Internal BlowerThree-speed blower – ordered separately – rapidly rids the air of smoke, steam and cooking odors so the air is fresh and clean.
Optional 1,200 CFM In-Line BlowerQuickly removes smoke, steam and cooking odors from the kitchen and mounts further down the duct run to help reduce the noise of the ventilation system in the kitchen.
10-Inch Round Exterior VentingLarge-diameter venting that enables quiet airflow and effective performance.

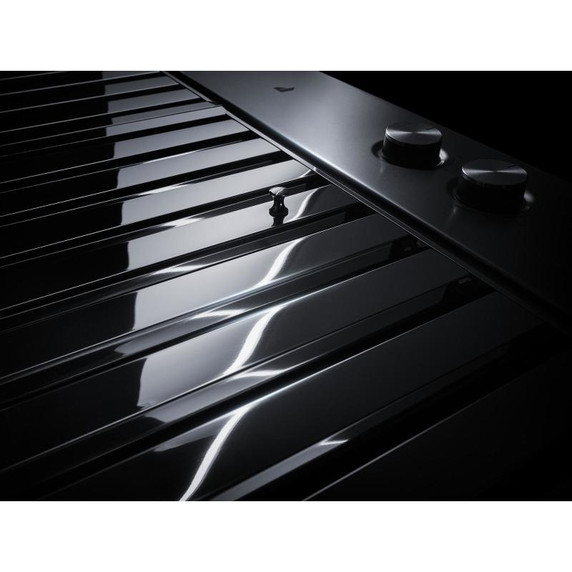

Dishwasher-Safe Stainless Steel Baffle FiltersThese stainless steel baffle filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.

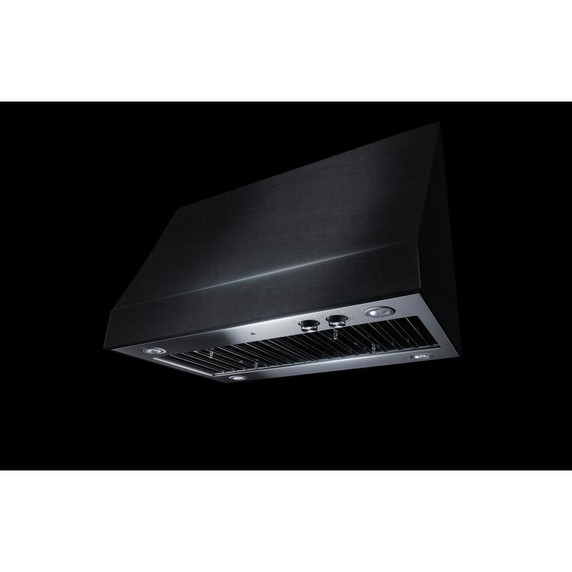

Custom Hood LinerThis hidden ventilation system mounts to the inside of a custom-built vent covering that can blend into the kitchen's design or be highlighted as a visual feature of the kitchen.
Lustre StainlessBlur the lines of temptation with mind-bending curves and hairpin corners of stainless steel that will leave you reeling.

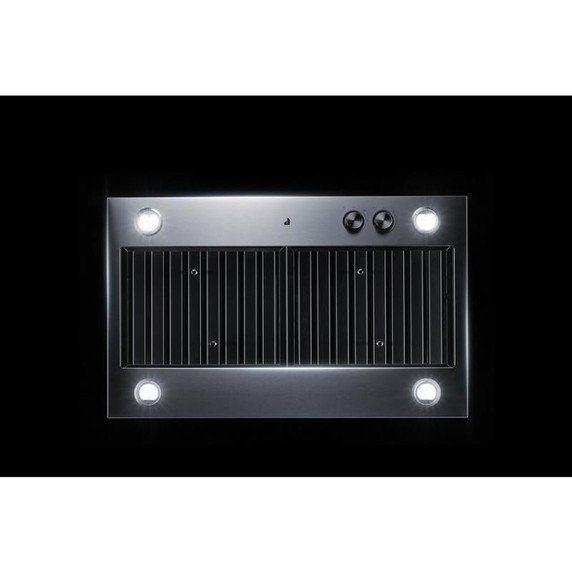

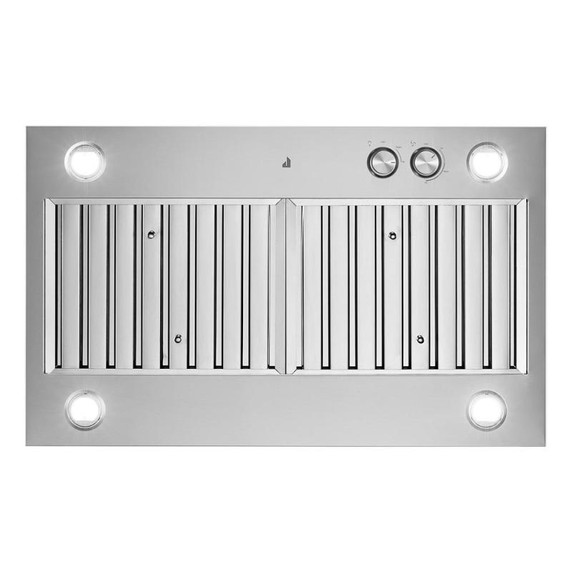

Two Lighting LevelsTwo different settings give you the appropriate level of lighting as you cook.
Three Fan Speed SettingsProvides a range of ventilation power to accommodate your precise cooking needs.
Auto Sense OptionAutomatically turns the ventilation system on and adjusts power as needed.

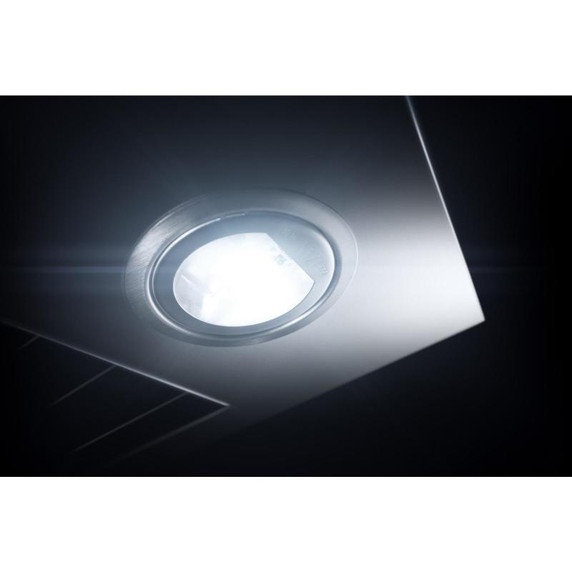

Halogen Task LightingTwice as energy-efficient and longer-lasting than incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above.
Knob Controls
Feature Short:
Knob ControlsKnob controls provide precise adjustment and easy selection of ventilation speeds.
Versatile Installation OptionsAllow for island- or wall-mount installations for kitchen customization and a unique look.
Experts at the ReadyOur crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with unprecedented access to products and knowledge, their expertise is unmatched.
Controls
Control TypeManual
Electrical
Amps15
Specifications
Country Of OriginMexico
Product To Product Pairs
Extended Service Plan ParentEW07IW4Y, EW07IW1Y, EW07IW2Y
Optional AccessoriesW10446917, W10285449, W10285448
Required AccessoriesUXB1170KYS, UXB0585KYS
Features
Night LightYes
Night Light TypeHalogen
Task LightingYes
Task Light TypeHalogen
Certifications
ULYes
Energy Star QualifiedNo
Description
Size In36
Hood TypeCustom Hood Liners
Ventilation System
Duct TypeRound
FiltersGrease Filters
VentingExterior
Duct Outlet Size In10
Blower MotorNo, Optional Accessory
Carton Depth27.52"
Carton Height16.57"
Carton Width41.34"
Depth22.0"
Gross Weight49.82 lbs.
Height11.5"
Width35.88"
