Kitchenaid® 15'' Automatic Ice Maker with PrintShield™ Finish KUIX535HBS
Fully Flush Installation with Articulating HingeAllows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Clear Ice TechnologyProvides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
Built-In Drain Pump SystemAllows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space
Self-Cleaning CycleMakes routine maintenance easy using a "clean cycle" and Affresh® ice maker cleaner.
Holds 25 Pounds of IceEnsures a generous supply of fresh ice is conveniently at your fingertips.
Max IceMax Ice
PrintShield™ FinishResists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.

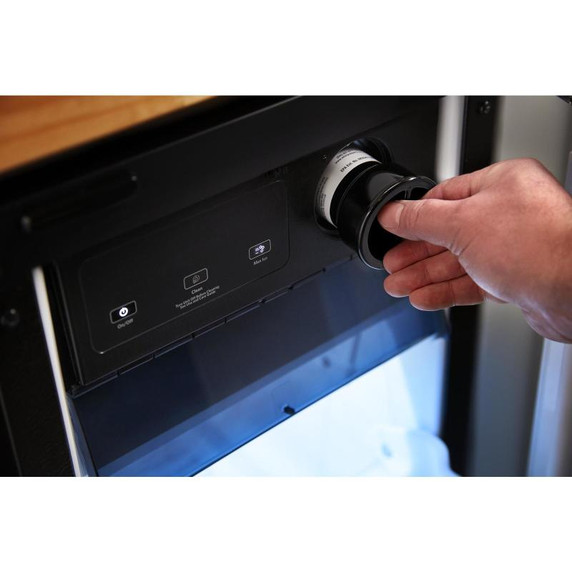

Filter-ReadyProvides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
Reversible DoorOffers flexible installation options by allowing hinge installation on either side of the door.
Certifications
ULYes
ADA CompliantNo
Electrical
Amps15
Volts115
Controls
Control LocationInterior Up Front
Water Filter Indicator ResetYes
Control TypeElectronic Touch
Defrost TypeAutomatic Defrost
Ice Maker On OffYes
Exterior
Door OpeningRight Swing
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Cabinet FinishTextured
Reversible DoorYes
Cabinet MaterialPrepainted Steel
Handle LocationHorizontal
Configuration
Installation ConfigurationBuilt-In
Details
Interior LightYes
Drain PumpPump Included
Specifications
Optional AccessoriesF2WC9I1
Clear Ice TechnologyYes
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Carton Depth28.37"
Carton Height36.07"
Carton Width17.25"

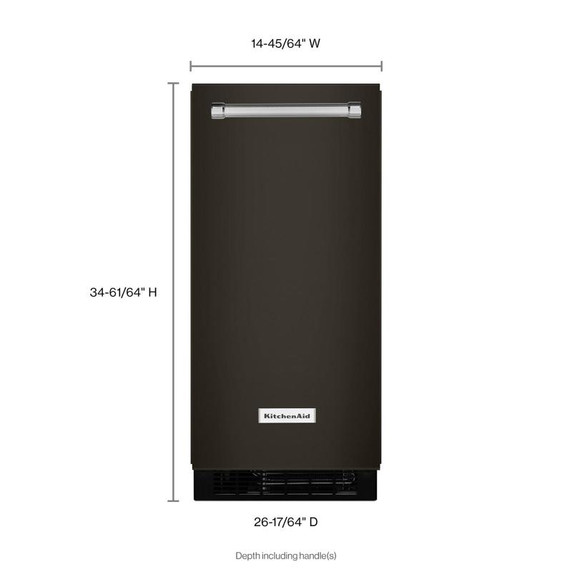

Depth26.06"
Gross Weight107.0 lbs.
Net Weight96.5 lbs.
Cutout Depth25.0"
Cutout Height34.5"
Cutout Width15.0"
