Kitchenaid® 20.9 Cu. Ft. 36" Width Built-In Stainless Bottom Mount Refrigerator with Platinum Interior Design KBBL306ESS
KitchenAid
Kitchenaid® 20.9 Cu. Ft. 36" Width Built-In Stainless Bottom Mount Refrigerator with Platinum Interior Design KBBL306ESS
Preserva® Food Care SystemTwo independent cooling systems provide a dedicated refrigeration unit to help keep food fresh longer, and a separate system for frozen food. The FreshFlow™ Air Filter helps minimize odours while the two Produce Preservers help delay over-ripening.
Platinum Interior DesignProvides a premium look with silver glossy walls that complement the metallic accents found inside the refrigerator.
Automatic Ice MakerEnsures that you have a constant supply of ice for entertaining.
SatinGlide® System with Soft-CloseAdd a luxury experience to the crisper drawers. The ball bearing rollers and glides allow effortless in-and-out movement even when fully loaded.
LED LightingIlluminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
Intuitive ControlsProvide an easy-to-use touch pad control system that puts every refrigerator function right at your fingertips.
Adjustable Spill-Resistant Glass ShelvesAre easy to clean and help prevent messes from spilling over into other parts of the refrigerator. The shelf edges are nano-etched with a finely textured surface that helps contain spills, and lets you use the whole shelf from edge-to-edge.
Fit System GuaranteeEnsures KitchenAid Brand Built-in Refrigerators will replace your existing cabinet cut-out of a standard comparable built-in refrigerator model that is 36", 42" or 48" inch wide or KitchenAid will provide up to $300 for a professional to adjust your cabinets.
ENERGY STAR® QualifiedProducts conserve energy by exceeding minimum federal energy efficiency.
Controls
Control LocationInterior Up Front
Control TypeElectronic
Door Ajar Open AlarmYes
Control LockoutN/A
Max Cool Fast CoolYes
Sabbath ModeYes
Water Filter Indicator ResetYes
Electrical
Volts120
Amps15
Freezer Compartment
Freezer Drawer Basket1 Full Width Lower Metal; 1 Half Width Upper Plastic
LightYes
Icemaker
IcemakerYes
Filters
Fresh Flow Air Filter IncludedYes
Produce PreserverYes
Water Filter LocationExterior
Water Filter Part NumberEDR3RXD1
Dispenser
Dispenser TypeN/A
AHAM Volumes And Shelf Area
Freezer Volume Cu Ft5.56
Total Volume Cu Ft20.86
Refrigerator Volume Cu Ft15.3
Specifications
Country Of OriginUSA
Optional AccessoriesEDR3RXD1B
Fingerprint ResistantNo
Extended Service Plan Parent
Product To Product PairsKOWT104ESS, KXD4630YSS, KCGS350ESS, KVWB600DSS, KVWB606DSS, KSGB900ESS, KOWT107ESS, KXD4636YSS, KFGG500ESS, KOWT100ESS, KVUB606DSS, KCGS956ESS, KSEG950ESS, KFGD500ESS, KFDD500ESS, KVWB406DSS, KCGS550ESS, KMBP100ESS, KCGS556ESS, KTTS505ESS, KSDG950ESS, KVUB600DSS, KSGG700ESS, KVWB400DSS, KVIB606DSS, KMBP107ESS, KCGS950ESS
Certifications
ULYes
Energy Rating Kwh Year599
Energy Star QualifiedYes
Cee TierTier I
Exterior
Door FinishSmooth
Door StyleFlat
Handle MaterialMetal
Hidden HingeYes
Reversible DoorNo
Handle ColorStainless Steel
Base Grille ColorBlack
Cabinet ColorGrey
Cabinet FinishSmooth
Number Of Doors2
Door OpeningLeft Swing
Configuration
Installation ConfigurationBuilt-In
Description
Type Of RefrigeratorBottom Freezer
Details
Cooling TypeDual Evaporator
Counter DepthYes
Refrigerator Compartment
Humidity Controlled DrawersYes
LightingLED
Number Of Interior Shelves4
Door Bins1 Full-Width Gallon; 2 Dairy; 4 Adjustable Half-Width
Liner FinishPlatinum
Spill Proof Glass Shelves4 Adjustable Half-Width
Carton Depth31.5"
Carton Height86.0"
Carton Width39.0"

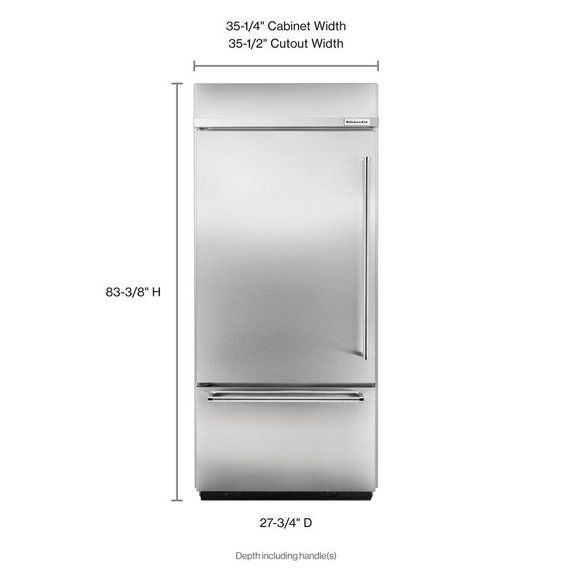

Depth Closed Excluding Handles25.13"
Depth Closed Including Handles27.75"
Depth With Door Open 90 Degree59.0"
Depth27.75"
Gross Weight550.0 lbs.
Height83.38"
Net Weight525.0 lbs.
Width35.25"
Cabinet Width35.25"
Cutout Depth24.0"
Cutout Height83.5"
Cutout Width35.5"
Depth Excluding Doors23.69"
Height To Top Of Cabinet83.38"
Popular Height71 Inch Tall or Higher
Popular Width36 Inch Wide
