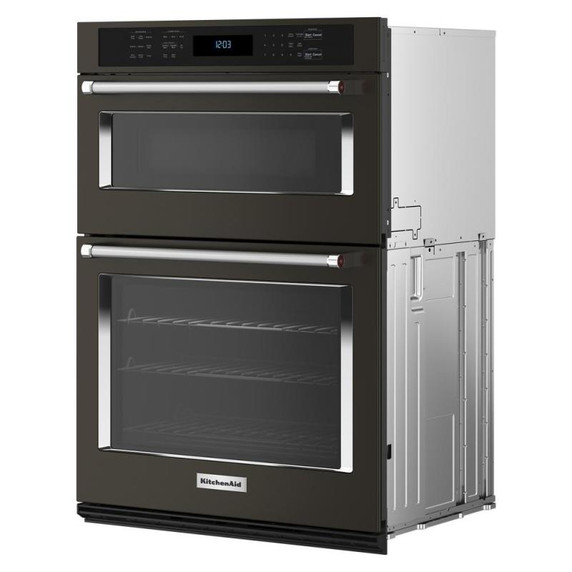

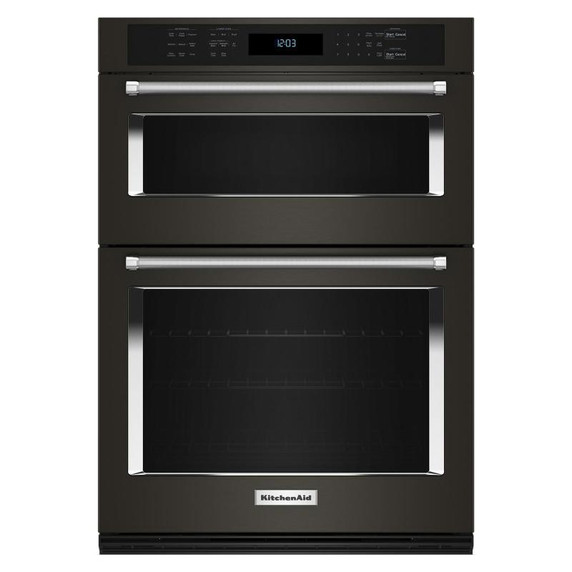

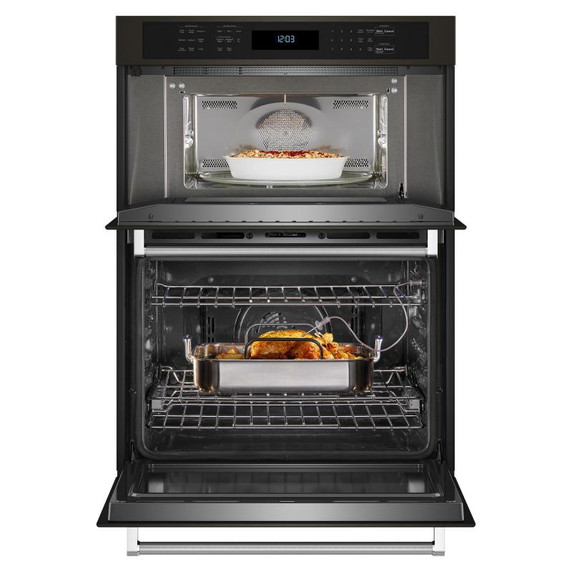

KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode KOEC530PBS
KitchenAid
KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode KOEC530PBS
Air Fry ModeSkip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way with less oil than traditional frying.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.

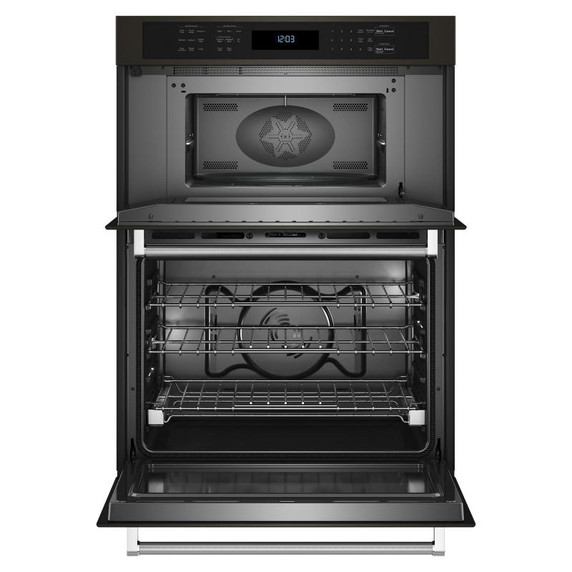

Even-Heat™ True ConvectionFeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

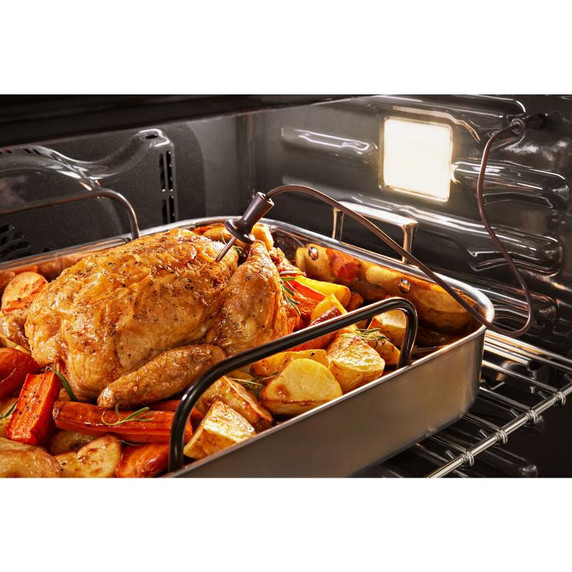

Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

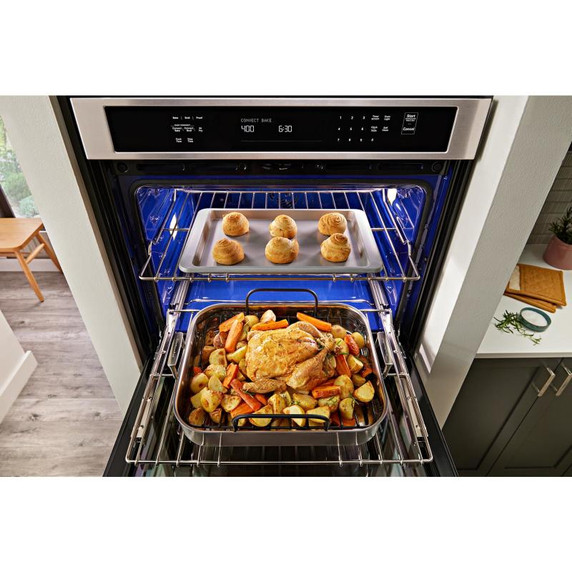

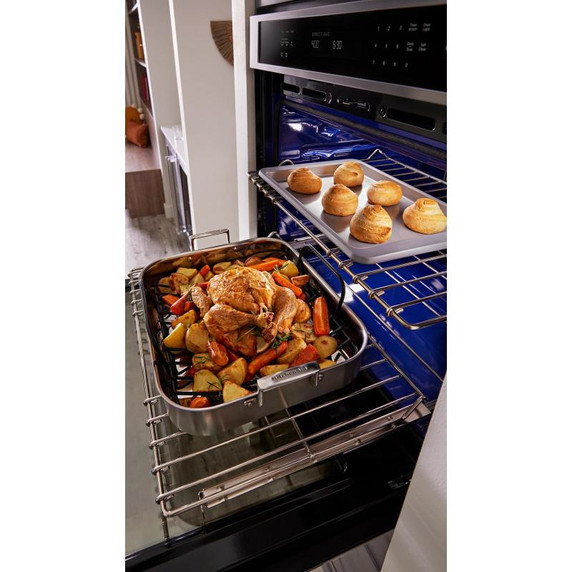

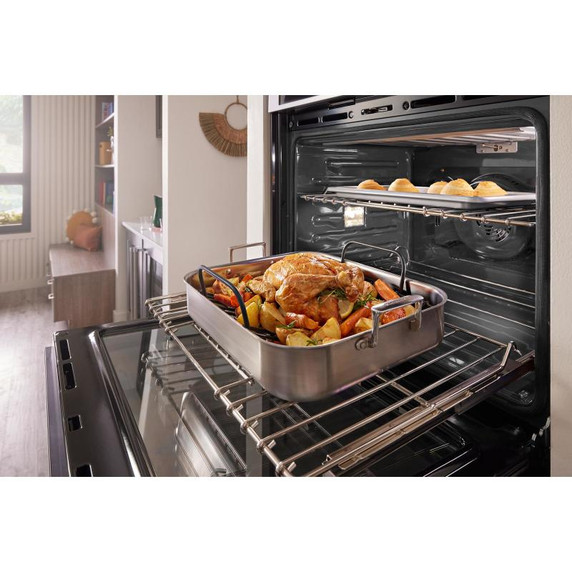

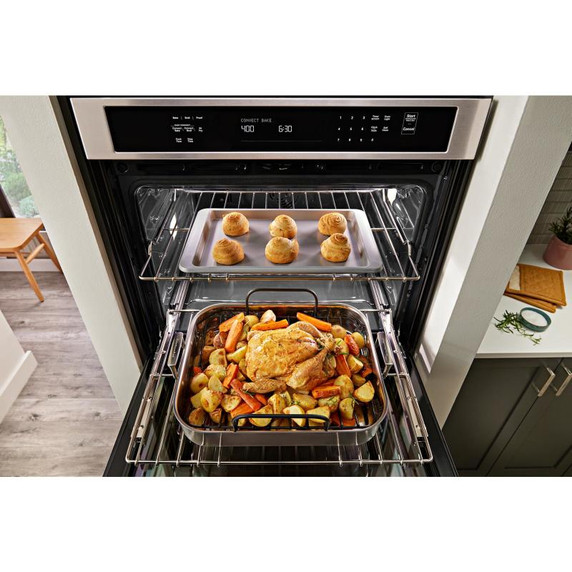

SatinGlide™ Roll-Out Extension RackMakes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

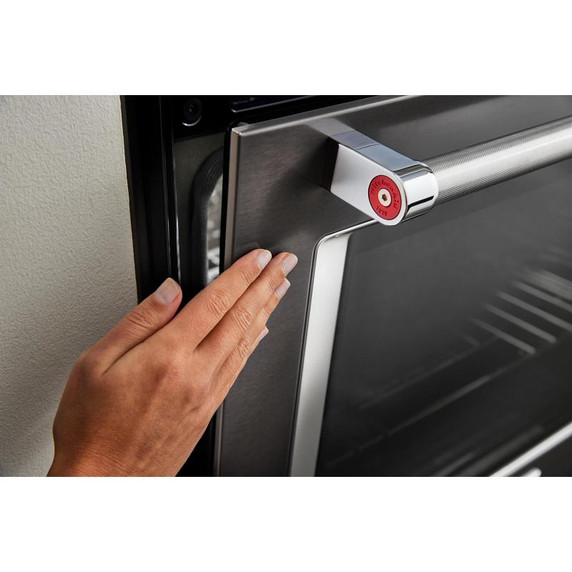

Self-Close DoorsFeature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
4,000-Watt Broil ElementTap into high-watt, even heat designed to broil meats with this 4,000-watt element for savoury, caramelized crust.
Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
5.0 Cu. Ft. Oven CapacityProvides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
Star-K CertifiedTo meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the boxCombination Microwave Wall Oven includes
- Dishwasher-Safe Air Fry Basket
- Microwave Crisper Pan
- Integrated Meat Thermometer
PrintShield™ FinishResists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

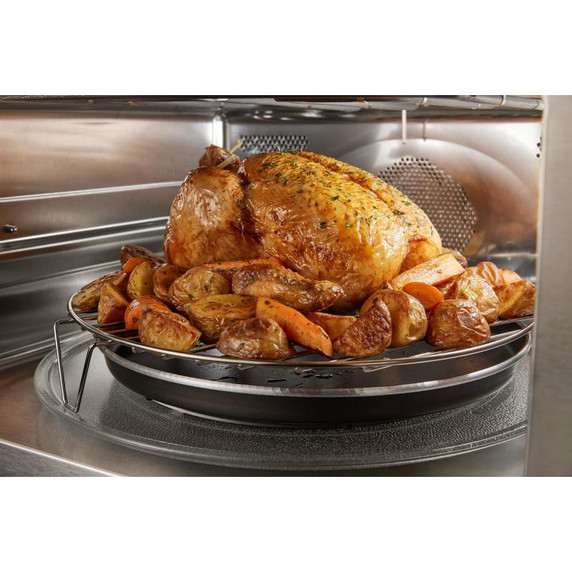

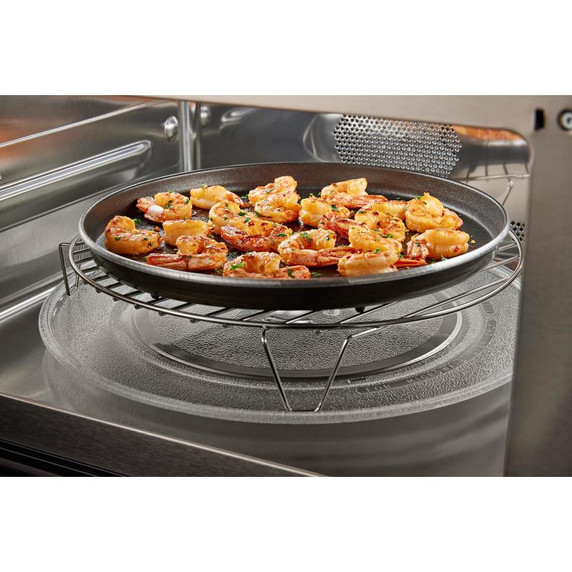

CrispWave™ Technology (Microwave Oven)Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.

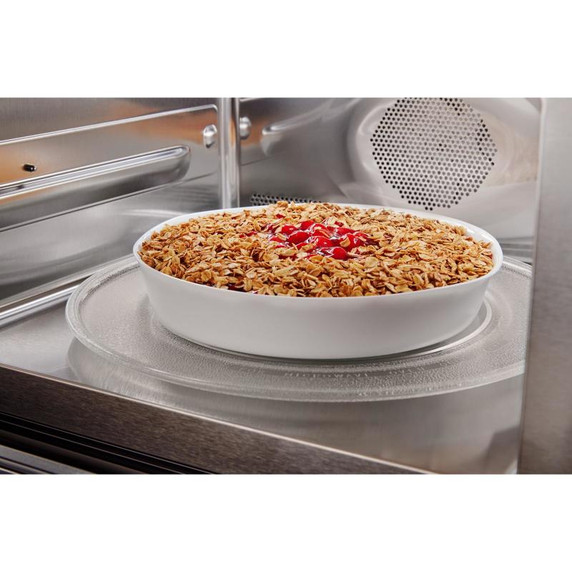

Microwave Convection CookingUses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
1.4 Cu. Ft. Microwave Oven CapacityComfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish.
Microwave Details
Cooking Power Watts900
ConvectionYes
GrillYes
Interior LightYes, Halogen
Microwave Capacity Cu Ft1.4
TurntableYes
Turntable Diameter Size In14.13
Convection Power Watts1,200
Grill Power Watts1,600
Specifications
Country Of OriginUSA
Sabbath ModeYes
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11570325, W11594553
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Certifications
ULYes
Energy Rating Kwh Year356
CULYes

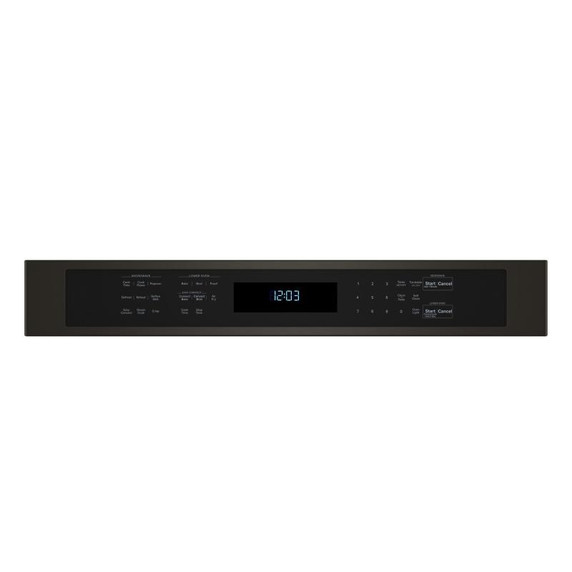

Controls

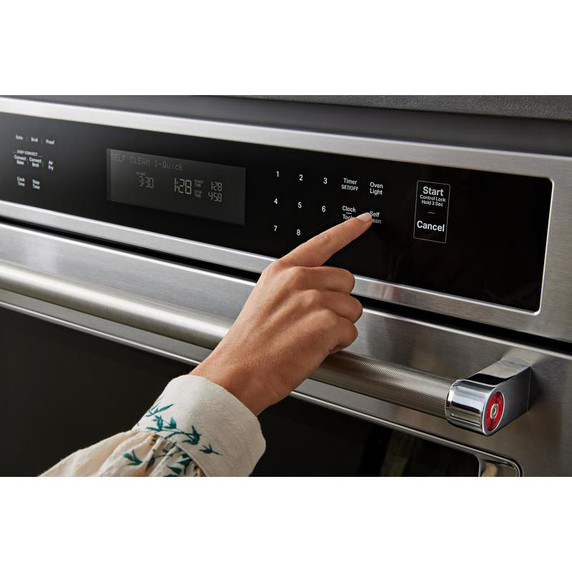

Control TypeElectronic
Display ColorWhite
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light TypeHalogen
Bake Element Power2800W
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Number Of Bake Elements1
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Interior ColorBlue
Broiler Element Power4000W
Convection FunctionsBake; Broil; Convection Conversion
Number Of Oven Racks3
Convection Element Power Watts3200
Oven Capacity Cu Ft5
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Features
Language ConversionEnglish/French/Spanish
Sensor CookingYes - Microwave
Oven SelectionsAir Fry; Auto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Temperature Probe; Temperature-Sensor Baking; Timer
Refinement KAD
Temperature ProbeYes
Compatibility
Connectivity
Configuration
Oven ConfigurationMicrowave Combination
Energy
Annual Energy Usage Kwh356
Microwave
Microwave SelectionsAdd A Minute; Control Lock; Convect; Cook; Cook Power; Cook Time; Crisp Pan; Defrost; Easy Convect; End of Cycle Signal; Off/Cancel; Popcorn; Reheat; Soften/Melt; Sound On/Off; Steam; Time Cook; Timer
Carton Depth30.8"
Carton Height45.0"
Carton Width34.8"

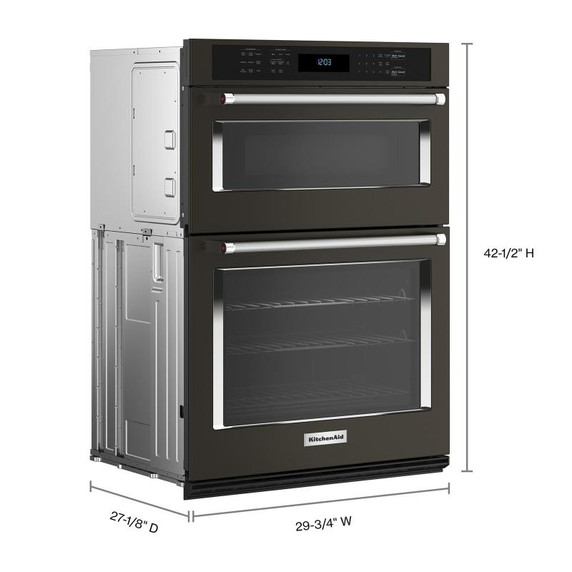

Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight220.0 lbs.
Height42.5"
Net Weight198.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height41.31"
Cutout Width28.5"
Capacity FT3 (cubic feet)6.4
