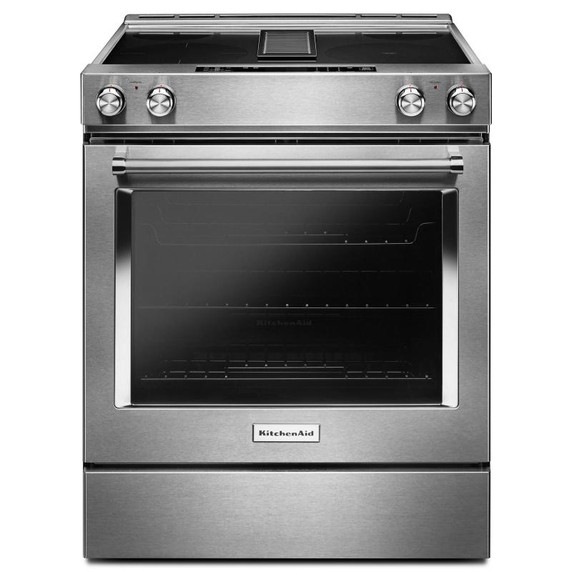

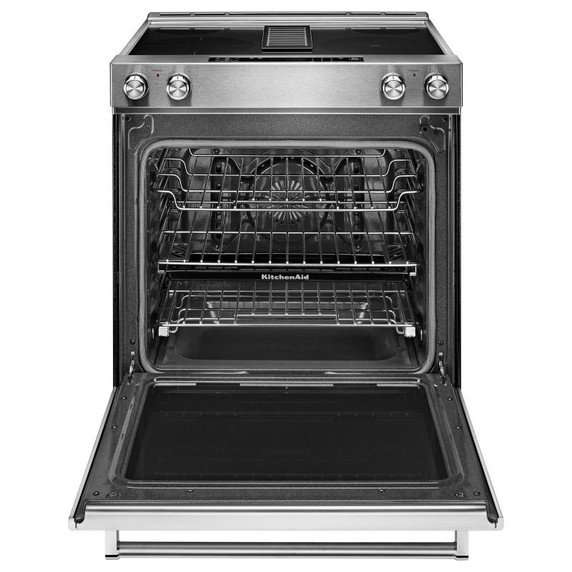

Kitchenaid® 30-Inch 4-Element Electric Downdraft Front Control Range KSEG950ESS
KitchenAid
Kitchenaid® 30-Inch 4-Element Electric Downdraft Front Control Range KSEG950ESS

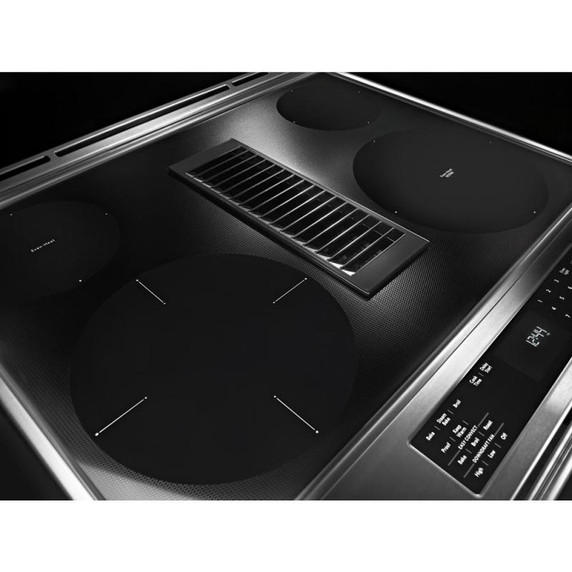

DowndraftIntegrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
6.4 cu ft CapacityThis electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
4 Cooking ElementsProvides four independent cooking surfaces that allow you to do more on your range. It features a double cooking zone of 6 and 10 inches, one 10 inch zone, plus two 6 inch cooking zones.
EasyConvect™ ConversionTakes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Aqualift®Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch ControlsOffer an intuitive, easy-to-use touch screen experience.
SatinGlide® Max RacksMove smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Electrical
Volts240
Power Cord IncludedNo
Amps40
Configuration and Overview
Fuel TypeElectric
Energy
Annual Energy Usage Kwh639
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan ParentEW09IW1Y, EW09IW4Y, EW09IW2Y
Optional AccessoriesW10655449, W10768190, W10655448, W10675027, W10655450, W10285447, W10731885, W10675028, W10675026, W10800530, W10731886, W10115773, W10731887
Product To Product PairsKVWB406DSS, KVUB600DSS, KMBP107ESS, KRFC302ESS, KBFN502ESS, KBBL306ESS, KBFN506ESS, KRFF305ESS, KOWT104ESS, KVWB400DSS, KRMF706ESS, KTTS505ESS, KOWT107ESS, KVIB606DSS, KOWT100ESS, KRFC704FPS, KFGD500ESS, KXD4636YSS, KVUB606DSS, KVWB600DSS, KBBR306ESS, KFDD500ESS, KXD4630YSS, KMBP100ESS, KRFF300ESS, KRFF302ESS, KVWB606DSS
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Refinements
Kad RangeADA Compliant; Downdraft; EasyConvect™ Conversion; Even-Heat™ True Convection; FIT System; SatinGlide™ Racks; Steam Rack
Certifications
ULYes
ADA CompliantYes
Energy Rating Kwh Year639
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Drawer TypeAccess Panel
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Description
Size In30
Range TypeSlide-in
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Lights2
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Cooktop Surface MaterialCeramic Glass
Oven Control TypeElectronic Touch
Broiler Element Power4000W
Number Of Oven Racks3
Number Of Rack Guides7
Bake Element Power3600W
Oven Rack Type1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Oven Interior Depth In Inches20.63
Oven Interior Width In Inches24.13
Convection Element Power Watts3200
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details
Left Front Element Burner TypeDual
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Front Element Burner Power3200W
Right Front Element Burner Size10in.
Right Front Element Burner TypeStandard Radiant
Auto Re IgnitionNo
Left Front Element Burner Size12in./6in.
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Left Rear Element Burner Power1300W
Carton Depth30.51"
Carton Height43.5"
Carton Width31.5"

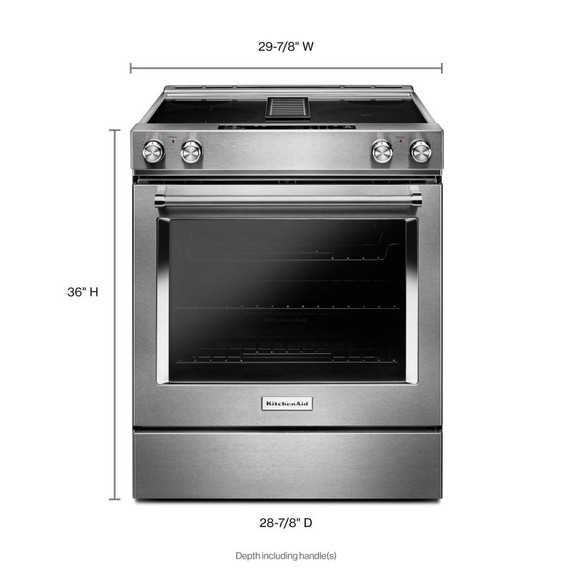

Depth Closed Including Handles28.88"
Depth With Door Open 90 Degree48.75"
Gross Weight180.0 lbs.
Height36.0"
Width29.88"
Capacity FT3 (cubic feet)6.4
