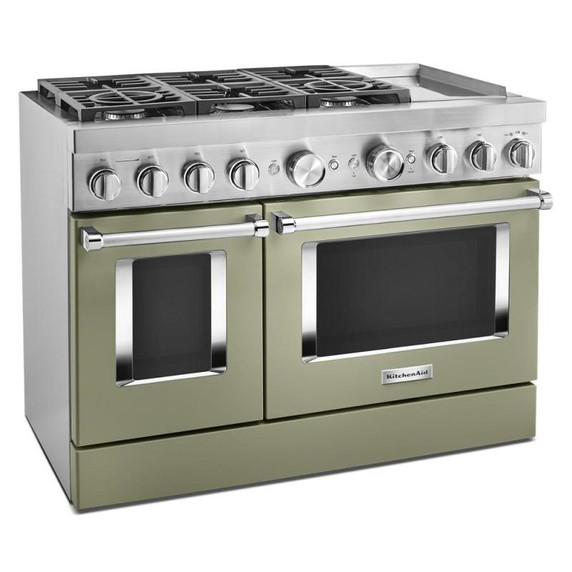

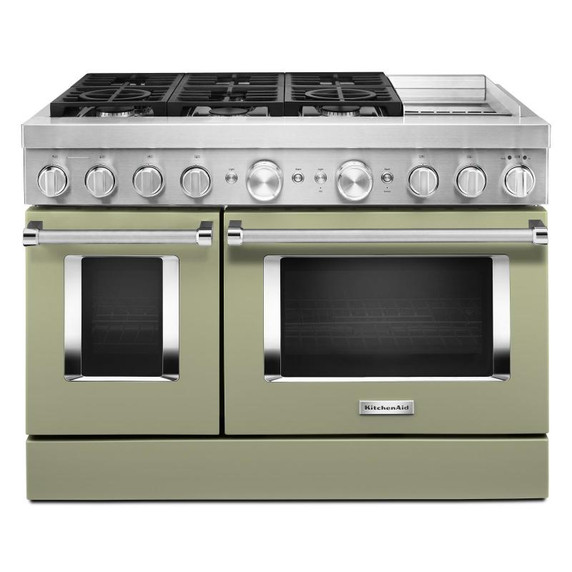

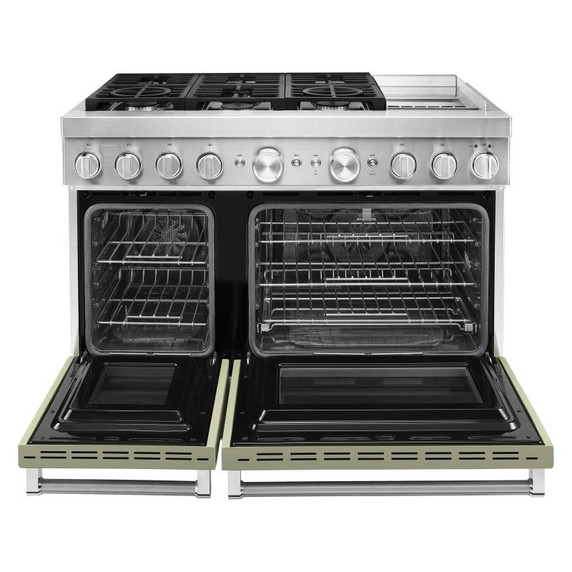

KitchenAid® 48'' Smart Commercial-Style Dual Fuel Range with Griddle KFDC558JAV
KitchenAid
KitchenAid® 48'' Smart Commercial-Style Dual Fuel Range with Griddle KFDC558JAV
Dual Fuel RangeSatisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Smart ApplianceStay in control and efficiently manage laundry from anywhere.* Remotely start or stop your appliance and get end of cycle notifications so no load is left behind. Get step-by-step pretreating instructions in the Stain Guide to take on everyday tough stains and maximize the power of your Maytag® appliances.
*WiFi & App Required. Features subject to change. Details and privacy info at maytag.com/connect. Appliance must be set to remote enable.

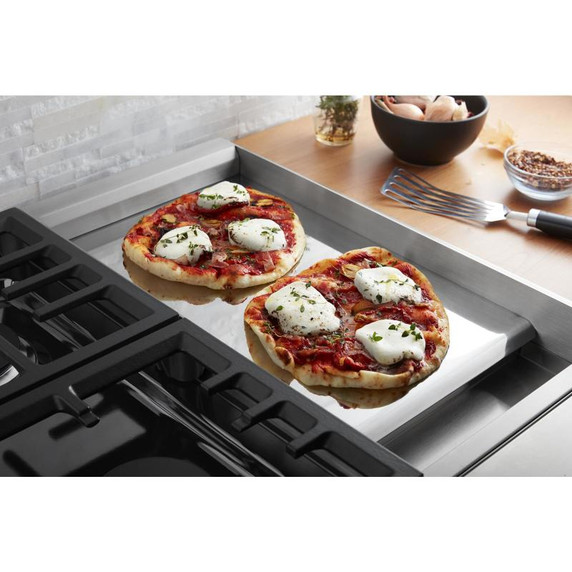

Chrome-Infused Electric GriddleFeatures quick preheating and precise temperature control to expertly brown, sear and crisp edge-to-edge. The smooth, recessed surface assists your technique, making it easy to flip even delicate foods, and provides plenty of room to cook for a crowd.

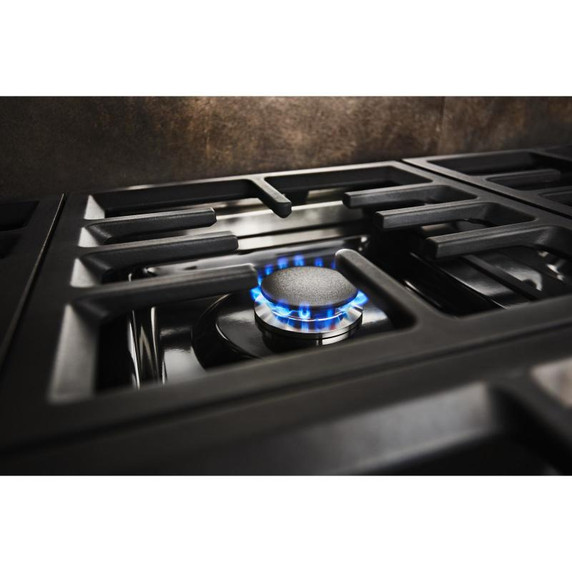

Two 20,000 BTU Ultra Power™ Dual-Flame BurnersGive you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

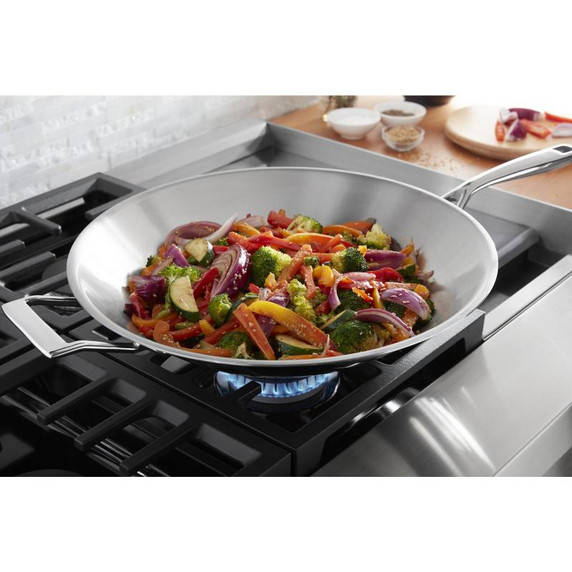

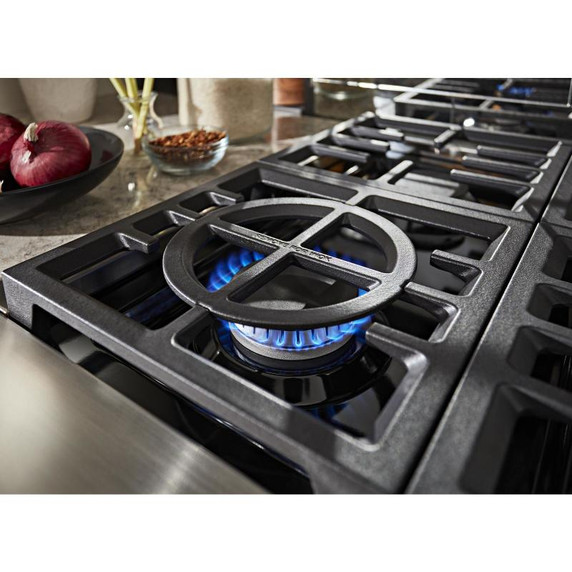

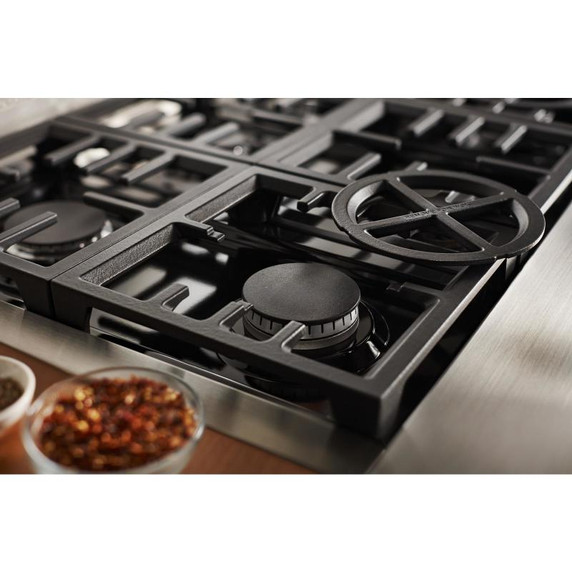

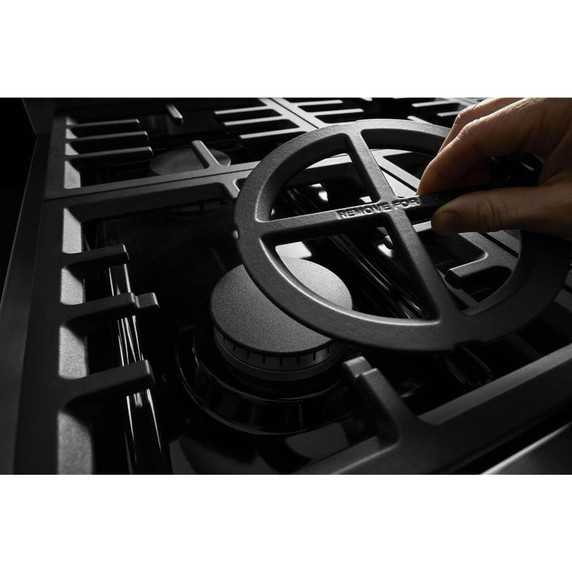

Three-Level Convertible GratesWith removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

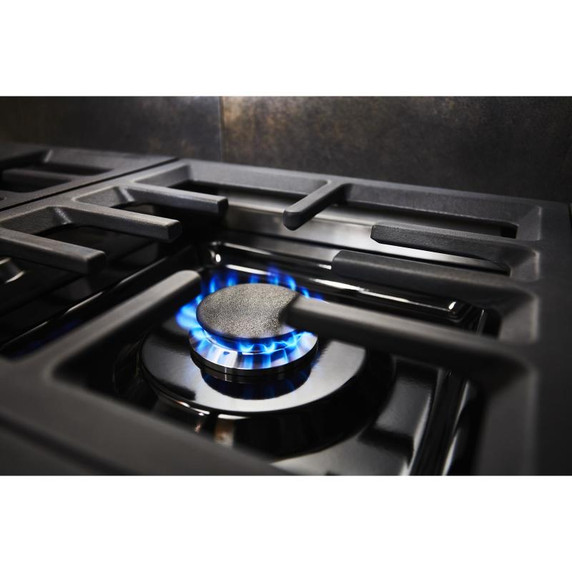

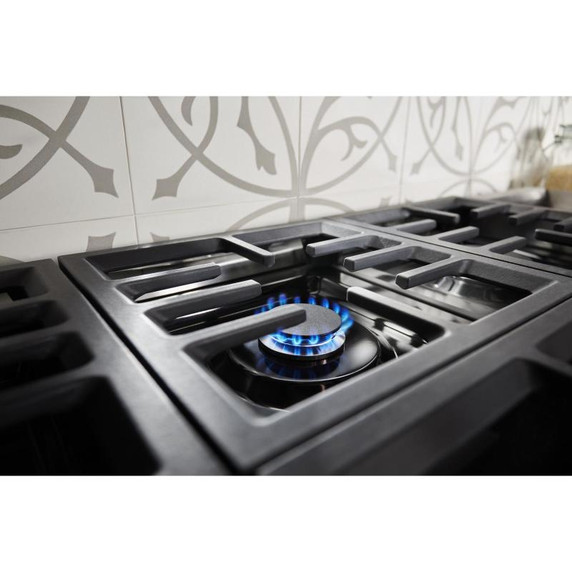

5,000 BTU Simmer & Melt BurnerWith a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
6.3 Cu. Ft. Total CapacityWith two oven cavities provides extra space and the flexibility to cook multiple dishes at different temperatures, so you can roast a whole turkey in the larger oven, while baking dessert in the other.

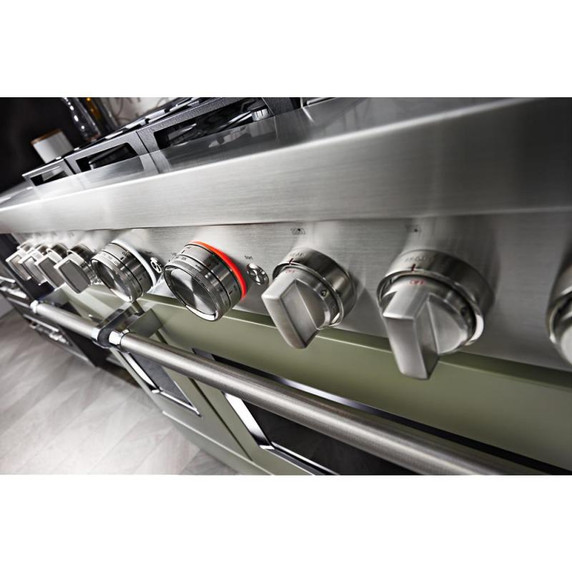

Dual-Concentric Oven KnobProvides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

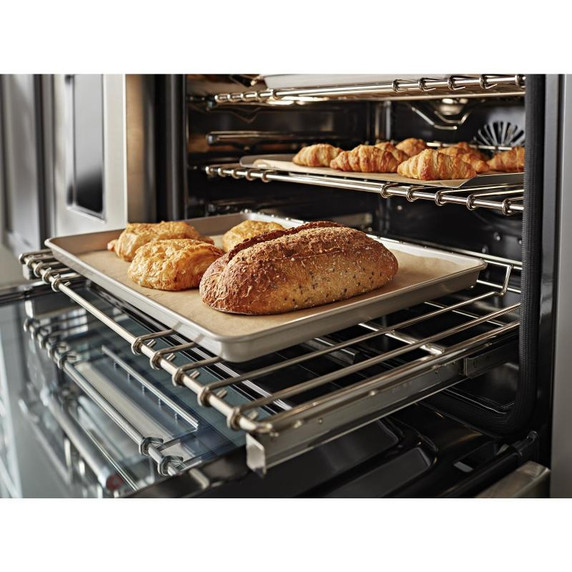

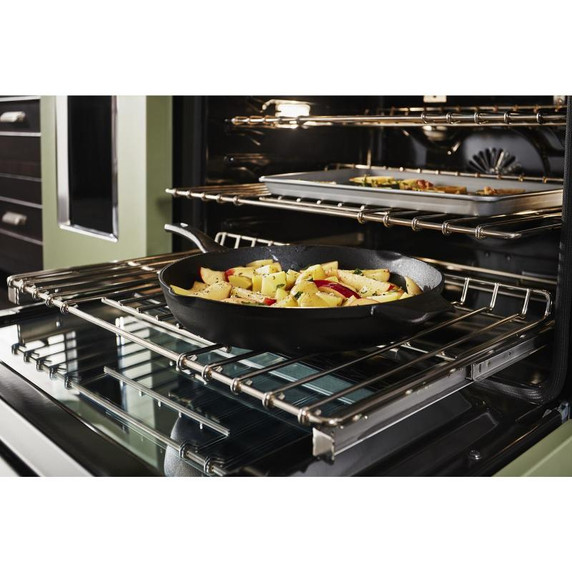

SatinGlide™ Roll-Out Extension RackMakes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
Three 15,000 BTU BurnersDeliver the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.

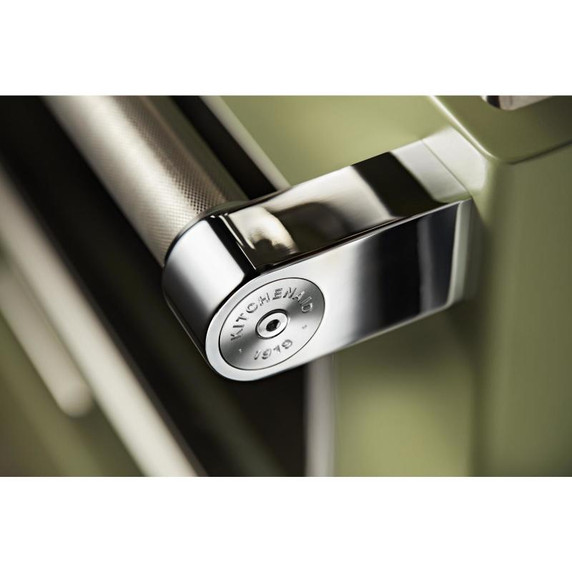

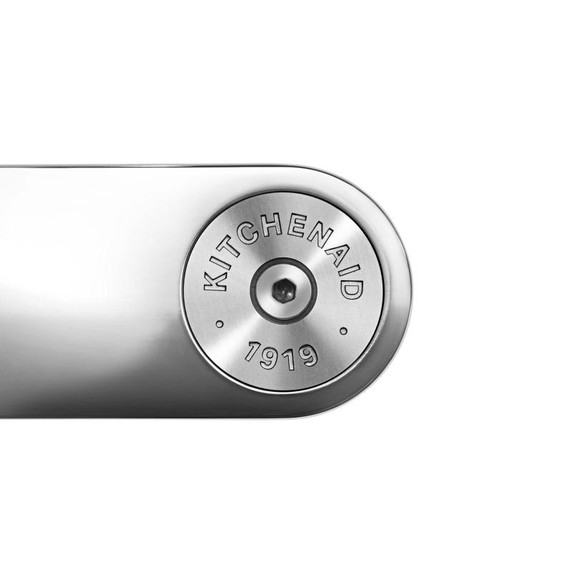

KitchenAid® Handle Medallion Kit (sold separately)Lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)
Star-K CertifiedStar-K Certified
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW13IW2Y, EW13IW4Y, EW13IW1Y
Optional AccessoriesW11368841NE, W11368841RE, W11368841BN, W10285449, W11368841MP, W10115777, W11368841BO, W11368841CF
Product To Product PairsW10285449, W10115777, KVWC958KSS, UVL6048JSS, KVWC908KSS
Electrical
Hz60
Amps50
Volts240
Power Cord IncludedNo
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedYes
Energy Rating Kwh Year279
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Configuration and Overview
Fuel TypeDual Fuel
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Cooktop Details
Cooktop ConfigurationBurners with Integrated Griddle
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeDual
Number Of Cooking Element Burners6
Right Front Element Burner TypeDual
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Ignition TypeFlame-Sensing™ Re-ignition
Right Rear Element Burner TypeSealed Burner
Center Front Element Burner Power15000BTU
Center Front Element Burner TypeStandard
Center Rear Element Burner Power5000BTU
Center Rear Element Burner TypeSealed Burner
Left Front Element Burner Power20000BTU/14000LP
Left Rear Element Burner Power15000BTU/11000LP
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power20000BTU/14000LP
Right Rear Element Burner Power15000BTU/11000LP
Number Of Grates6
Grate DetailsDishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Description
Size In48
Range TypeFreestanding
Features
GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Natural Gas ConvertibleYes
Power Outage CompatibleYes
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; iOS
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Bake Element Power3000W
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Number Of Oven Lights2 Left / 3 Right
Oven Cleaning TypeSelf-Clean
Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Oven Control LocationFront Control
Oven Control TypeKnobs
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Rack Guide TypeMolded
Broiler LocationTop Center
Oven Rack TypeGliding Roll-Out; Standard (Both)
Broiler Element Power5500W
Number Of Oven Racks2 Left-3 Right
Number Of Rack Guides5 left-5 right
Convection Element Power Watts1600
Convection Element TypeTrue-Bow Tie
Energy
Annual Energy Usage Kwh279
Carton Depth35.5"
Carton Height47.5"
Carton Width35.8"

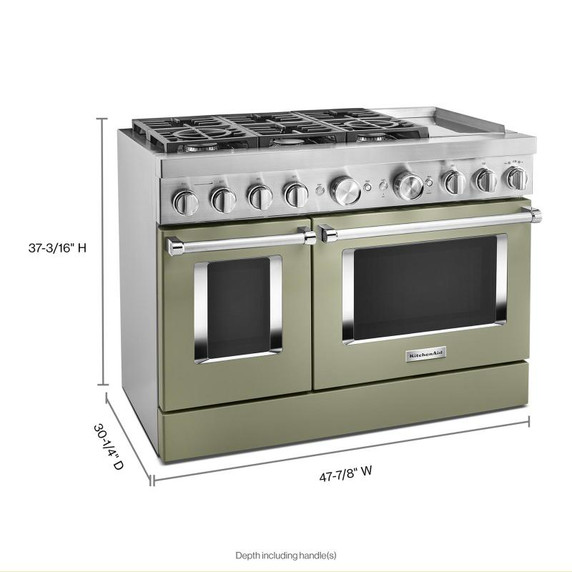

Depth Closed Excluding Handles27.75"
Depth Closed Including Handles30.25"
Depth With Door Open 90 Degree46.5"
Gross Weight408.0 lbs.
Height36.0"
Maximum Height37.5"
Minimum Height36.0"
Width47.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width48.0"
Capacity FT3 (cubic feet)6.3
