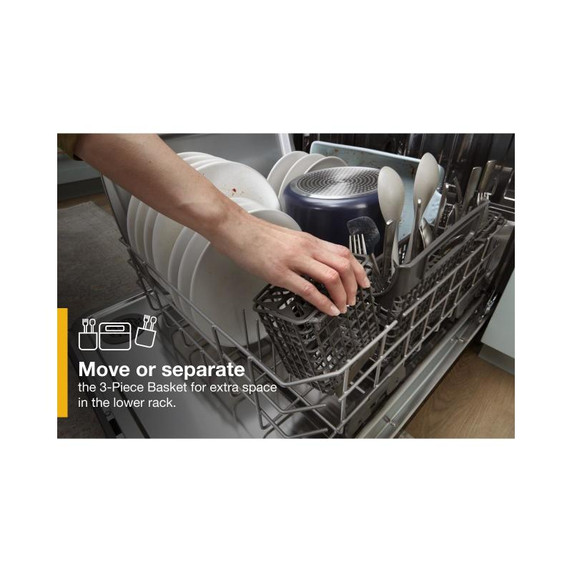

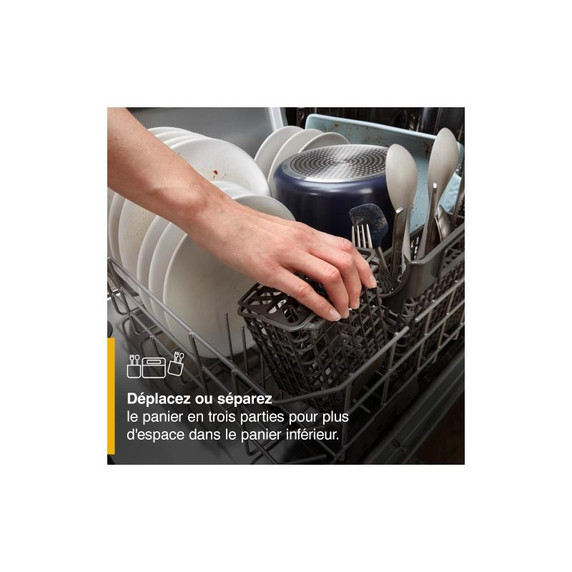

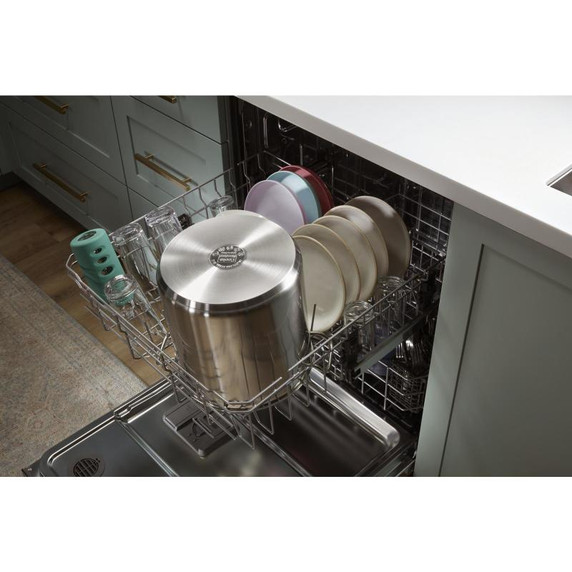

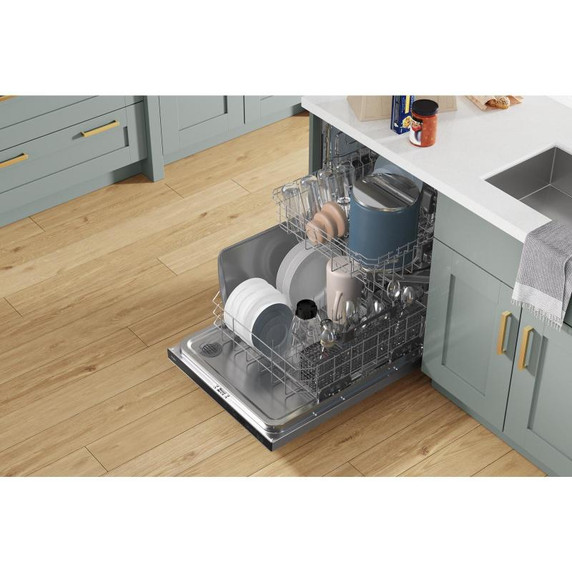

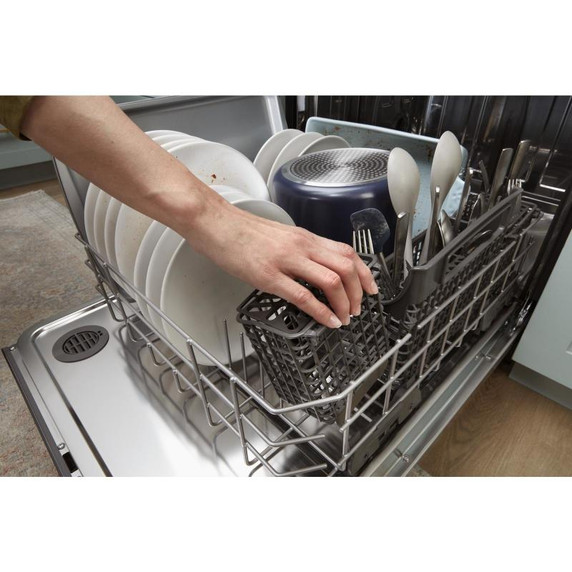

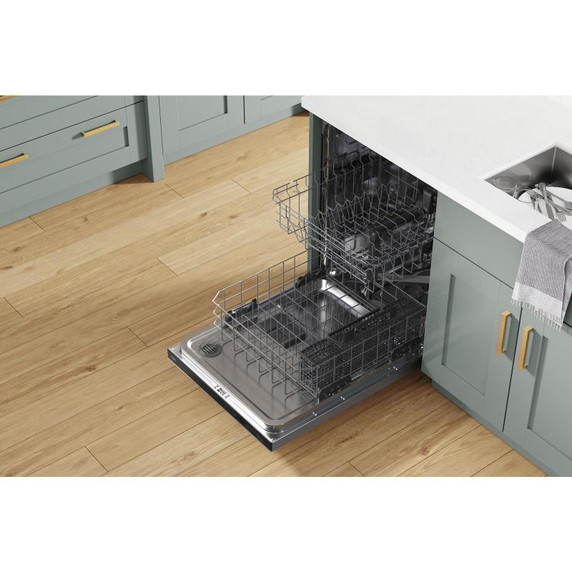

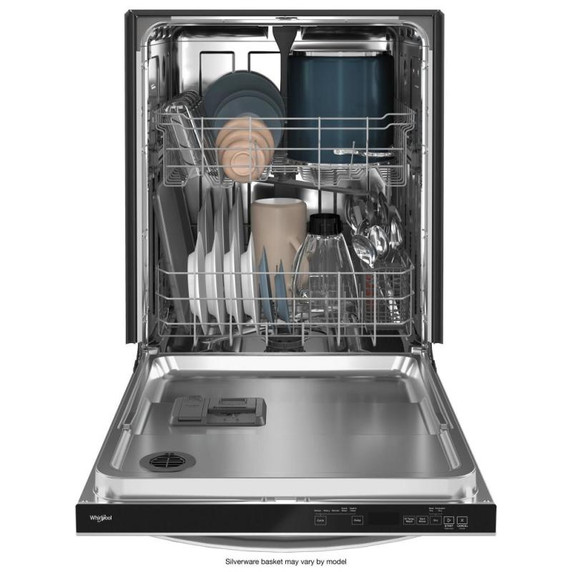

3-piece silverware basketGain extra space in the lower rack for casserole dishes and large pans by moving or separating the 3-piece silverware basket.

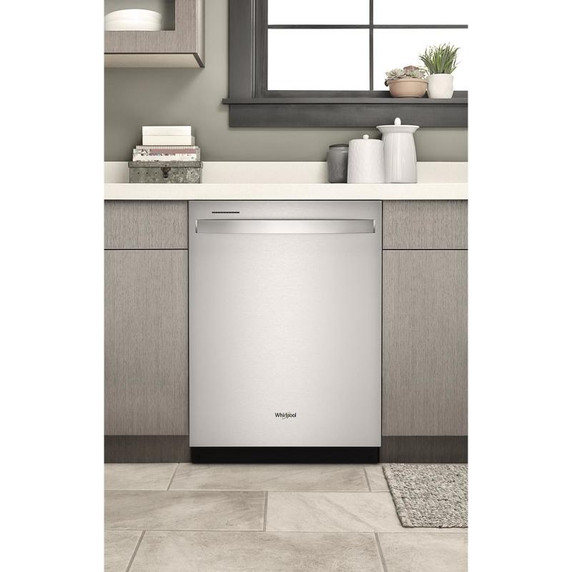

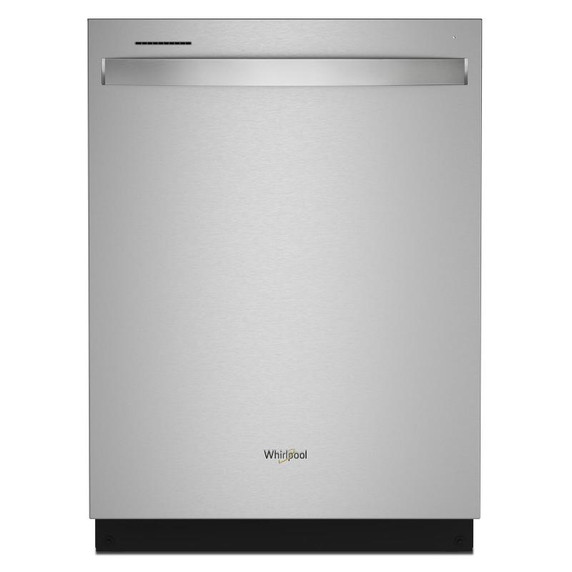

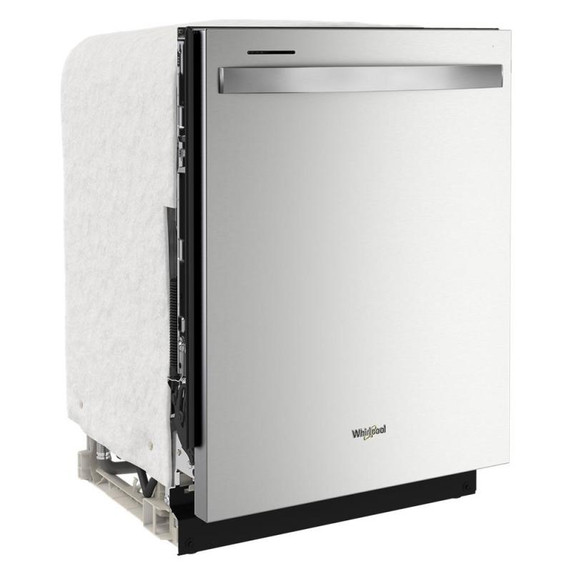

Fingerprint resistantAvailable in a stainless finish, the easy-to-clean exterior resists fingerprints and smudges.
Sensor cycleAutomatically get the right wash and dry settings for each load with two sensors that measure temperature and soil level during prewash and the wash cycle.
Soil sensorDetermines how dirty dishes are and adjusts the Normal cycle as needed to make sure dishes come out clean.
Normal cycleUse for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
Heavy cycleExtra cycle time takes care of heavily soiled messes and hard-to-clean dishes.
1–24 Hour Delay StartDelay the start of the cycle up to 24 hours to make sure dishes are clean and dry when you need them.
Quick Wash cycleClean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
Soak & Clean cyclePresoak and wash in one cycle so stuck-on food dissolves away without any extra steps.
Sani-Rinse Optioneliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
High Temperature Wash optionHelps remove stubborn grease and food grime with a high temperature wash.
Heated Dry optionUse a clean, dry dish straight from the dishwasher thanks to added heat for drying. For optimal drying results, use this option with rinse aid.
Cycle status indicatorThe full lit display glows for wash, drain, drying, sanitized and clean along with the time in hours and minutes so there’s no need to guess when your dishes will be ready.
Eco SeriesDesigned with efficiency in mind. Saving you water, energy and money with quality wash and dry performance.
*Compared to dishwashers meeting the minimum 2023 Natural Resources Canada efficiency standards
Control TypeElectronic
End Of Cycle SignalYes
Automatic Temperature ControlsYes
Status LightYes, White

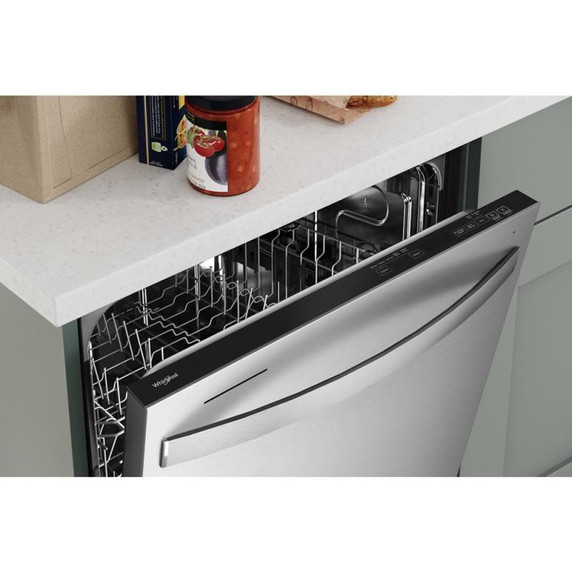

Control LocationTop
Volts120
Amps15
Power Cord IncludedNo
Dishwasher Cycle SelectionsHeavy; Normal; Quick Wash; Sensor Wash; Soak & Clean
Cushion Tip TinesYes
ExtrasStainless Steel Wash Arm
Fold Down TinesNo
GlidesWheels
StyleExtended
Utility BasketNo
CoversYes
Culinary BasketNo
LocationBottom Rack
Type3 Piece Splittable
Country Of OriginUSA
Quick WashYes
Delay StartYes
Required AccessoriesW10278635RP, W11365014, W10685193
Product To Product Pairs
Optional AccessoriesW10288149B, W10252111, W10278635RP
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
DispensersDetergent and Rinse Aid
Number Of Wash Levels5
Rinse Aid Dispenser Level IndicatorYes
Decibel Level Dba50
ULYes
Cee TierTier I
ADA CompliantNo
Energy Star QualifiedNo
NSF CertifiedYes
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Fingerprint ResistantYes
Toe Panel ColorBlack
Interior LightNo
Drying System TypeVent Dry with Heating Element
Hoses IncludedDrain Hose
Number Of Washarms3
Rack MaterialNylon
Tub MaterialStainless Steel
Tub StyleBuilt-in Tall Tub 24in.
Wash SystemFilter
Water FiltrationYes
Number Of Racks2
Number Of Wash Cycles5
Dishwasher Option Selections1-24 Hour Delay; Extended Dry; Heated Dry; Hi Temp Wash; Sani Rinse®
Carton Depth26.7"
Carton Height35.7"
Carton Width24.56"

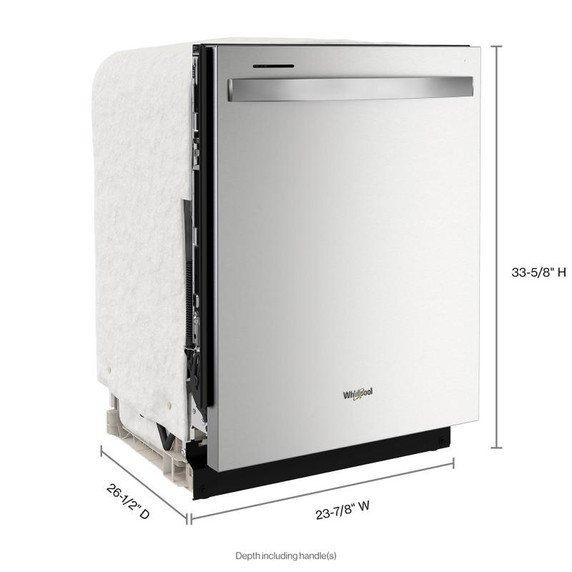

Depth Closed Excluding Handles24.5"
Depth Closed Including Handles26.5"
Depth With Door Open 90 Degree50.19"
Depth26.5"
Gross Weight110.0 lbs.
Height33.63"
Maximum Height34.63"
Minimum Height33.63"
Net Weight99.0 lbs.
Width23.88"
